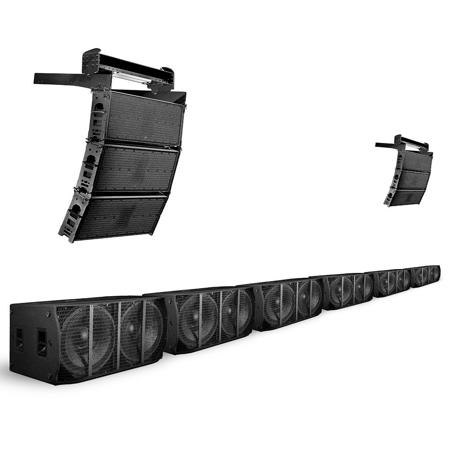

K-Array KH5SYS6 Line Array System, Includes 6x KH5 Line Array, 6x KS5 Subwoofer and 2x Flybars

KH5
Research conducted over 10 years which was used to develop the next generation of touring systems, the Firenze Series, has also been applied to the new line of K-array speakers, the Concert Series. This groundwork led to significant advancements including the ability to digitally steer the sound, the use of an onboard touch screen and an intelligent integration of capabilities such as various stacking and hanging positions, weather resistance and integrated DSP multiple analog and digital inputs. The company's signature compact design, Slim Array Technology, is also implemented.

• Unique performance-to-size ratio
• Self powered
• Integrated DSP with multiple analog and digital inputs
• Onboard touch screen with matrix control
• Digital acoustic steering system
• Wide horizontal coverage
• RS485 and USB connectivity for remote control

The biggest speaker of the K-array Concert Series, the KH5 has two 15" Neodymium woofers with a 3" voice coil and four 1.4" compression drivers. The large format speaker makes for an even larger sound that can deliver up to 139 dB. All KH5 components are designed by K-array and custom-made under K-array's quality control system.

Applications
• Small scale events
• Touring sound reinforcement
• Theatres, Concert halls
• Houses of worship
• Portable and installed AV systems

KS5
The K-array KS5 is a self-powered subwoofer system. It is best suited for highpower extended bass response applications in arenas, theatres, stadiums, concert halls, houses of worship and outdoor events. The 21" loudspeakers feature neodymium magnets with 6" voice coils driven by powerful D-class amplifiers. The large ports are designed to be fully symmetrical to the speakers, which means the back loading on the drivers is consistent and even with no port air turbulence. The triangle port construction also provides excellent structural integrity and strength, effectively eliminating any box resonance.

The rear panel provides inputs for both balanced line signals and digital signals in AES/EBU protocol, also on an XLR for ease of cabling. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling. All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again conveniently on a standard XLR. There are different DSP presets, specifically made by K-array to optimize the system performance of the variety of device configuration available. In addition the user can also create, save and store his/her own personal presets on the KS5 module. All KS5 components are designed by the K-array R&D department and custom-made under the K-array quality control system.

Applications:
• Large and medium scale events
• Theatres, Stadiums, Concert halls, Arenas
