Kino Flo Image L80 54"x28" LED DMX Yoke Mount Kit with Ship Case

Because professional photography and filming require top-notch lighting, the Image L80 54"x28" LED DMX Yoke Mount Kit by Kino Flo is an indispensable tool for industry professionals. This advanced lighting equipment, one of the largest LEDs in the industry, boasts a substantial panel size of 54" x 28" (137cm x 71cm) and a light output of 96FC at 10ft (1060 LUX at 3M), all while consuming a mere 4.0A (120VAC).

The Image L80 LED is a versatile, all-in-one solution, equipped with standard DMX in/out ports for cable and wireless DMX connectivity via Lumen Radio. It operates on a universal voltage input of 100-240VAC, making it suitable for use worldwide. The kit includes a removable gel frame and louver, and is available in both Yoke mount and Pole-Op models.

This high-quality LED light offers four menu options: white, two colors, and an FX menu. The white menu features include dimming, Kelvin, and green/magenta control channels, with a dimming range from .02 to 100 percent, ensuring flicker-free lighting. The Kelvin range is tunable from 2700K tungsten to 6500K daylight, while the green/magenta control can be scaled from 0 to 100.

The Gels/Hue menu extends the Kelvin range to 2500K-9900K, offering a fourth channel called Gel, which includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels. The RGB color menu provides individual control of red, green, and blue LEDs, perfect for working with apps with predetermined RGB presets or color wheels.

The FX menu, introduced on June 1, 2018, offers popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll, with several presets and adjustable control parameters for each effect.

The Image L80 LED DMX fixture styles available include Yoke Mount and Pole-Op. Its slim, durable design is only 6.5" in depth and is comprised of a rugged metal alloy fixture with built-in electronics. The Yoke Mount is designed to allow the yoke brackets to be placed in one of two positions, making it adaptable to studios with low ceilings.

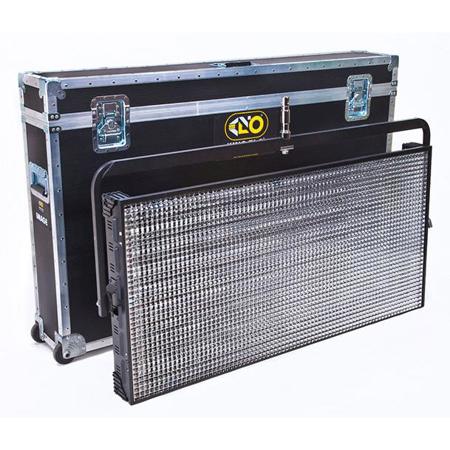

For easy transport and storage, the Image L80 LED DMX Yoke Mount Kit comes with a metal valence ship case, recommended for sea or air transport. The Yoke ship case (KAS-I80-1) holds one Image L80 Yoke mount fixture and one additional louver, making this kit a portable solution for your lighting needs.
