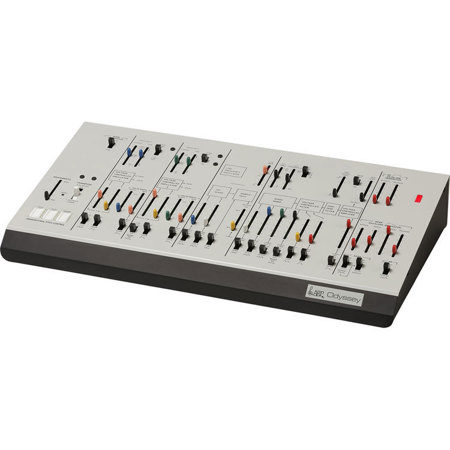

Korg ARP Odyssey RV1 Synthesizer Module, White

Legendary sound that connects the past with the present. Reborn again as an analog synthesizer module.

Since its appearance in 1972, the ARP Odyssey has been loved by countless musicians as a classic analog synthesizer. Forty years later, in 2015, with the advisory assistance of David Friend, co-founder of the ARP Instruments company, KORG resurrected the ARP ODYSSEY with a complete reproduction of the ARP Odyssey's original circuitry. The ARP sound, which continues to be envied as an iconic analog synthesizer, was once again back in the hands of today's musicians. Now, KORG has further broadened the reach of the ARP ODYSSEY in today's world by releasing a new model.

The ARP ODYSSEY Module is a keyboard-less ARP ODYSSEY with the very same analog synthesis circuitry that completely reproduces the original. To fit perfectly in today's DAW-centric music production environments, they provide it in a more compact module form. The lineup includes model, the white Rev1, reproducing traditional styling in a cutting-edge tabletop body. The real ARP sound that transcends history is once again available to the world.

True analog sound generated by a complete replication of the original ARP Odyssey's circuitry
The ARP Odyssey is known best for its sharp and biting tone and the rich possibilities of modulation that allow an incredible variety of sounds. The ARP ODYSSEY Module is equipped with the very same circuitry as the ARP ODYSSEY, which itself is a perfect replica of the original unit, developed under the supervision of the ARP Instruments company's co-founder David Friend. Its module-type design invites the user into an even deeper world of sound design.

Synthesis
• 2VCO. The duophonic design allows two different pitches to sound when you play two notes
• The high degree of pitch stability for which the ARP Odyssey was remarkable in its time has been perfectly reproduced
• Pitch is variable over a wide range of 20 Hz - 2 kHz
• Pitch modulation and pulse width modulation can be controlled
• Oscillator sync provides sharp, great-sounding overtones extending into a high range
• Noise generator provides two noise types: white and pink
• Powerful LFO can be used as a modulation source for the oscillator or filter or as a trigger source for sample & hold
• Ring modulator generates metallic sounds with rich overtones
• The distinctive S/H MIXER lets you easily create sample & hold sounds by using the oscillator or noise generator as a source that's triggered by the LFO or keyboard
• A wide variety of modulation sources such as S/H, LFO, ADSR and AR can be used to modulate the filter
• A high-pass filter is provided following the low-pass filter, giving you even broader sound design possibilities
• A new function, the DRIVE switch generates extreme and aggressive sounds
• VCA GAIN slider leaves the note sustaining. Ideal for sound design
• Envelope generator with two types: ADSR and AR. This can be used not only for the VCA but also to modulate the filter or oscillator

Control
• The original PPC (Proportional Pitch Control) based on a rubber pad has been reproduced. Press the rubber pad with your finger to control pitch bend or vibrato depth in proportion to the pressure
• A portamento slider and transpose switch are provided. You can also use a switch to select either of the ways in which Rev1 of the original ARP Odyssey differ as to whether portamento is applied the moment that you operate the transpose lever

Connectors
• Two types of audio output jack are provided: 1/4" phone and XLR
• External audio input jack is provided, allowing you to process sound from an external device
• Headphone jack with adjustable volume is provided. By connecting the headphone jack to the external audio input jack, you can apply self-feedback to generate powerful sounds
• MIDI IN connector and USB MIDI port are provided, allowing connection to a PC or MIDI device
