KanexPro HDMI to Component Converter with Audio
See all KanexPro items

KanexPro HDMI to Component Converter with Audio

SKU: KPHDRGBRL

This item is no longer available.

Recommended Alternatives

KanexPro Audio Converter: Picture 1 regular
KanexPro HDMI to VGA Audio Converter with Audio
$73.45
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ALBERT G : Only way to connect a Sony CRT TV to Cable!

Reviews about this item

Review Summary

2019-10-03T08:23:32

Rated 5 out of 5

PURCHASING

WORKED EXACTLY AS IT SHOULD

DEBORAH M.

2017-05-23T12:03:34

Rated 5 out of 5

Worked as advertised

Worked as advertised, for HDMI to VGA conversion

Russell C.

KanexPro Audio Converter Specifications

  • Interface

    Input: 1x HDMI
    Output: 1x Component (YPbPr) + RCA Audio

  • Video Amplifier Bandwidth

    1.65Gbps at 165MHz

  • Vertical Frequency Range

    50-60Hz

  • Color Depth

    8-bit per channel

  • Resolutions

    HDMI Input: 480i/576i/480p/576i/720p/1080i/1080p
    Component (YPbPr) Output: 480i/576i/480p/576i/720p/1080i/1080p

  • Power Supply

    5VDC at 2A

  • Power Consumption

    5W

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Operating Humidity

    10% to 85 % RH (no condensation)

  • Storage Temperature

    -10 to 80 deg. C / 14 to 176 deg. F

  • Storage Humidity

    5% to 90 % RH (no condensation)

  • Regulatory Approvals

    Converter & Power Supply: FCC, CE, UL

  • Dimensions

    3.5 x 1 x 2.7" / 8.89 x 2.54 x 6.86cm

  • Weight

    0.24lbs / 0.11kg

  • UPC Code

    814556013304

About KanexPro Audio Converter

FEATURED REVIEWS

PURCHASING

By DEBORAH M.

WORKED EXACTLY AS IT SHOULD

Worked as advertised

By Russell C.

Worked as advertised, for HDMI to VGA conversion

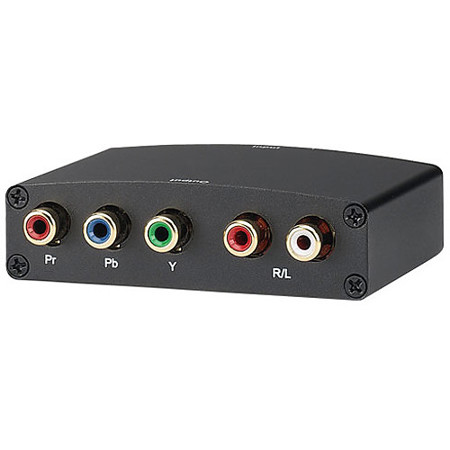

The KanexPro HDMI to Component video with audio converter is a classic fit for HDMI sources such as Game consoles, Apple TV2, Blu-ray players and cable boxes that needs seamless integration for today's home theater environments. It converts the HDMI input into analog component video for displays and projectors. The converter decodes the HDMI input signal and outputs to component signal with R+L audio. Ideal and cost-effective for legacy home-theater equipment that needs the transformation from HDMI sources.

KanexPro Audio Converter Features

  • Convert HDMI signal into YPbPr (Component-video) and stereo audio
  • Designed to work with Apple TV, Blu-ray players, PS4 and XBOX One
  • Connect HDMI based devices to older TV's and projectors
  • HDMI input resolutions up to 1080p (1920x1080 at 60Hz)
  • Supports analog video output to 1080p & UXGA (1600x1200) with 10-bit DAC
  • Decodes analog audio signal from HDMI
  • Compact size
  • 5VDC external power supply included

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KanexPro HDMI to Component Audio Converter
  • 5VDC External Power Supply
  • KanexPro 1 Year Parts and Labor Warranty
