Klipsch KL-650-THX Specifications

  • Frequency Response

    48Hz-20kHz +/- 3dB

  • Sensitivity

    97dB at 2.83V / 1m

  • Nominal Impedance

    8Ohms compatible

  • HF Crossover

    1400Hz

  • Power Handling

    150W maximum continuous (600W peak)

  • Enclosure Type

    Bass reflex via front-mounted port

  • Enclosure Material

    Medium density fiberboard construction (MDF)

  • Tweeter

    1" (2.5cm) magnetically shielded titanium dome compression driver with 9.6oz ceramic magnet structure

  • High Frequency Horn

    10 x 6" rectangular 90 x 60 deg. Tractrix Horn

  • Woofer

    Two 6.5" (16.5cm) magnetically shielded, Cerametallic cone, cast aluminum frame drivers

  • Input Connections

    Two sets of binding post speaker terminals (connected via brass strap jumpers)

  • Finish

    Galaxy Black cabinet with Black anodized aluminum fascia

  • Mounting

    4-bolt pattern 1/4" - 20 thread

  • Dimensions

    H x W x D with Grille: 15 x 17 x 12.5" / 38.10 x 43.18 x 31.75cm

  • Weight

    39lbs / 17.69kg

  • UPC Code

    743878021288

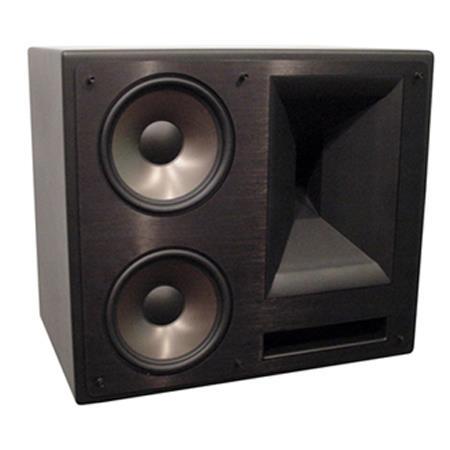

About Klipsch KL-650-THX

The KL-650-THX is a THX Ultra2 certified loudspeaker designed primarily for front left-, center- and right-channel reproduction in large, ultimate-performance home theaters. It can also be used for surround channels, however and is equally suitable for combination home-theater/music systems demanding superb sound and high output capability. Its enclosure is front-ported to facilitate installation in custom cabinetry and has back-panel threaded inserts compatible with OmniMount 60.0 Series wall/ceiling brackets.

The KL-650-THX design emerges directly from Klipsch's experience as a leading supplier of cinema sound systems. A large, rectangular 90 x 60deg. Tractrix Horn raises the efficiency of the speaker's 1" titanium-dome compression driver tweeter and optimizes its radiation pattern.

The horn enables the speaker to meet THX Ultra2 directivity specifications without the lobing and comb filtering effects that afflict conventional multiple-tweeter solutions. And its dual 6.5" woofers have large, magnetically shielded motor structures that drive rigid, low-mass Cerametallic anodized-aluminum cones for high output and low distortion.

Construction is to the highest standard, with a professional grade rabbet and dado locked panel cabinet and premium components throughout to ensure sonic purity, consistency and reliability.

Klipsch KL-650-THX Features

  • Front-firing port for low bass extension
  • Dual 6.5" Cerametallic woofers
  • 6-by 10" Tractrix Horn Tweeter with 1" titanium-dome compression driver
  • Top-of-the-line internal wiring

What's in the box:

  • Klipsch THX Ultra2 KL-650-THX 6.5 " Two-Way Bookshelf Speaker
  • Rubber Stick-On Feet
  • Klipsch 5 Year Warranty
