Kramer Electronics FC-4002 MultiCoder Universal Analog Video Format Transcoder and Time Base Corrector

SKU: KRFC4002

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics FC-4002 Specifications

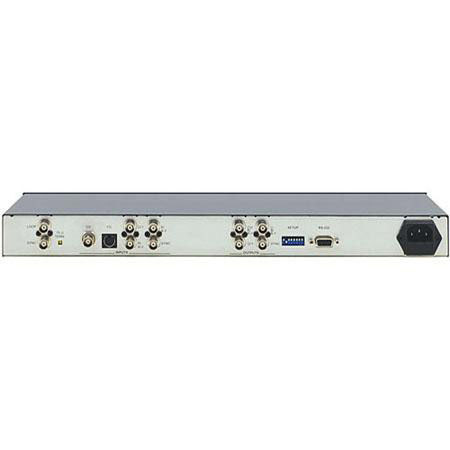

  • Inputs

    1 composite video: 1Vpp/75ohm on a BNC connector; 1 YC: 1Vpp/75ohm (Y), 0.3Vpp/75ohm (C) on a 4-pin connector; 1 component: Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/75ohm (or RGB/S) on BNC connectors; 1 SYNC (genlock): looped 75ohm /Hi-Z on BNC connectors

  • Output

    1 composite video on a BNC connector 1Vpp/75ohm; 1 YC video on 2 BNC connectors: Y 1Vpp/75ohm and C 0.3Vpp/75ohm; 1 component or RGB/S video on BNC connectors 1Vpp/0.7Vpp/0.7Vpp/75ohm; 1 SYNC on a BNC connector

  • Video Standards

    PAL-B/D/G/H/I/M/N, NTSC-3.58/4.43, SECAM

  • Digital Resolution

    10 bits

  • Bandwidth

    -0.5dB to 5MHz

  • Diff. Gain

    1%

  • Diff. Phase

    1Deg

  • K-factor

    1%

  • S/n Ratio

    63dB

  • Luma Non-linearity

    1%

  • Chroma/luma Delay

    1ns

  • Controls

    Front-panel and RS-232; SCH phase, SYNC phase, H shift, freeze, panel lock

  • Power Source

    230V AC, 50/60Hz (115V AC, USA), 14VA

  • Dimensions (H x W x D)

    1.75 x 19 x 7" / 44.45 x 482.6 x 177.8mm (1U rack height)

  • Weight

    5.7 lbs (2.6kg)

About Kramer Electronics FC-4002

The FC-4002 MultiCoder Universal Analog & Digital Format Video Transcoder & TBC from Comprehensive/Kramer Electronics is a high performance broadcast-quality universal video transcoder for use with analog and digital video signals. This unit is designed to convert (1) composite video, S-video (Y/C), component video (RGB/S), or SDI video signal to (1) SDI, component, composite, or S-video output signals. It is ideal for use in video broadcasting and editing studios, post-production work and presentation applications, among many other possible uses.

The device features a bandwidth capacity of - 0.5dB to 5MHz (-3dB). Other features include a looping analog sync input, freeze frame functionality, selectable sync signal termination and a built-in time base corrector. The front panel can be locked out to prevent unwanted access and tampering. This unit can be controlled via its front-panel interface, RS-232, or dip switches. It includes a worldwide power supply and is well suited for standalone or rackmount placement.

Kramer Electronics FC-4002 Features

  • Analog & Digital Video Transcoder: Use this unit to convert composite video, S-video (Y/C), component video (RGB/S), or SDI video signals
  • Video Quality: The device includes a number of features designed to bolster the quality and integrity of video signals: looping analog sync input, freeze frame, selectable sync signal termination and built-in time base corrector
  • Security: A lockout feature on the unit ensures that unwanted use does not occur
  • Controls: This unit may be controlled via its front panel, RS-232, or dip switches
  • Standalone or Rackmount: It can be used as a standalone or rackmount solution

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Analog & Digital Video Transcoder
  • Looping analog sync input for quality video signals
  • Security lockout feature
  • Control via front panel, RS-232, or dip switches
  • Standalone or Rackmount

What's in the box:

  • Kramer Electronics FC-4002 Analog Video Transcoder
  • Power Cord
  • Null-Modem Adapter
  • Rack "Ears "
  • Kramer Electronics Warranty
