Kramer Electronics Kramer VM42 1:8 Composite Video Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-42 1:8 Composite Video Distribution Amplifier & 4x1 Switcher

SKU: KRVM42

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-80VN: Picture 1 regular
Kramer Electronics VM-80VN 1:8 Video Distributor
$432.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-42 Specifications

  • Input

    4 composite video, 1Vpp/75 Ohm, on BNC connectors

  • Output

    4x2 + 1 composite video, 1Vpp/75 Ohm on BNC connectors

  • Max. Video Output

    2Vpp

  • Video Bandwidth (-3dB)

    200MHz

  • Diff. Gain

    0.12%

  • Diff. Phase

    0.11Deg

  • K-factor

    <0.05%

  • S/N Ratio

    73dB

  • Crosstalk

    -40dB @10MHz

  • Coupling

    DC

  • Power Source

    230V AC, 50/60Hz (115V AC U.S.A.) 4.6VA

  • Dimensions

    24.5cm x 18cm x 4.5cm (9.6" x 7" x 1.8") W x D x H

  • Weight

    1.5kg (3.3lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VM-42

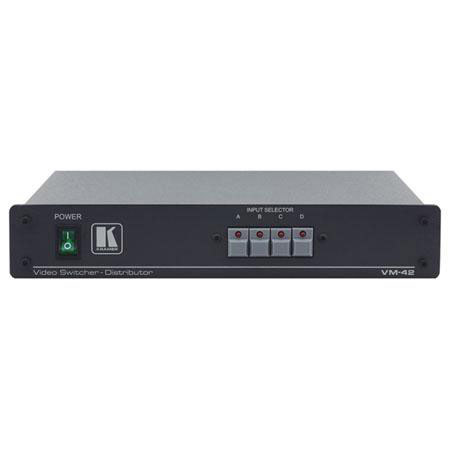

The Kramer VM-42 is a high-performance distribution amplifier and switcher for composite video signals. It can be used as a 4x1 vertical interval switcher with each input becoming a 1:2 DA or it can take one input, provide correct buffering and isolation and distribute the signal to eight identical outputs. It can also be configured as 2 1:4 DAs or as a 1:6 DA plus a 1:2 DA.

Kramer Electronics VM-42 Features

  • Vertical Interval Switching
  • Desktop Size - Compact size. Can be rack mounted in a 1U rack space with the optional RK-MEDN adapter
  • Bandwidth - 200MHz (-3dB)
  • Multi-Mode - Configure as a 1:8 DA, 4x1 switcher & more

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Vertical Interval Switching
  • Bandwidth - 200MHz (-3dB)
  • Multi-Mode - Configure as a 1

What's in the box:

  • Kramer VM-42 1:8 Composite Video Distribution Amplifier & 4x1 Switcher
  • Power Cord
  • Kramer 7 Years Limited Warranty
