Klark Teknik DN1248 Plus 12 Channel 48 Output Active Microphone Splitter with Dual Power Supply and Full Transformer Balancing Option, 3U Rack Space

Even in this digital age, Klark Teknik have kept sight of the numerous applications where analogue devices provide the best solution. One such application is providing multiple feeds from a single source, hence the introduction of the DN1248 Plus Active Signal Splitter. Housed in a roadworthy 3RU chassis with internal power supply, a single DN1248 Plus provides twelve input channels, each feeding four outputs, two of which are electronically balanced and two which are transformer isolated. On the rear of the unit can be found output 4, plus duplicates of all the inputs and output 1, so the patching options are extremely flexible.

The microphone preamplifier is a MIDAS Heritage series unit, specially adapted to the task and providing all the great sound and headroom for which MIDAS preamps are world famous. Several factory options are available for DN1248 Plus the 'DP' option, which provides (at very low cost) a second, linked internal PSU to provide auto-backup in the case of PSU failure. The 'AT' option provides transformer balancing for all 48 outputs and the 'FM' variant combines both 'DP' and 'AT' advantages. Plus, the whole unit is designed so that a customer can easily retrofit the multipin connector and input / output configuration of their choice.

• Award-winning MIDAS HERITAGE microphone preamplifier for highest signal integrity
• 12 channel microphone splitter with 2 electronically balanced and 2 transformer balanced outputs per channel
• Solo bus with integrated headphone amplifier and level control
• Independent +30 dB and -15 dB gain switches per channel
• +48 V phantom power switch and earth lift switch per channel

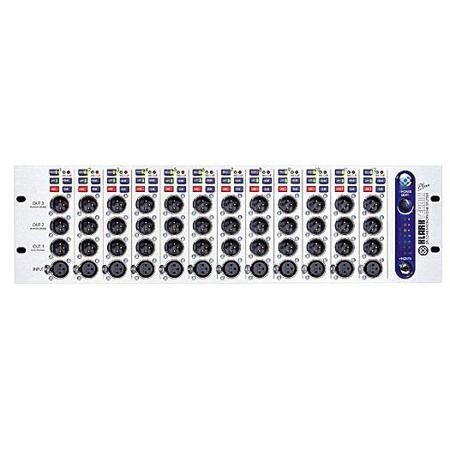

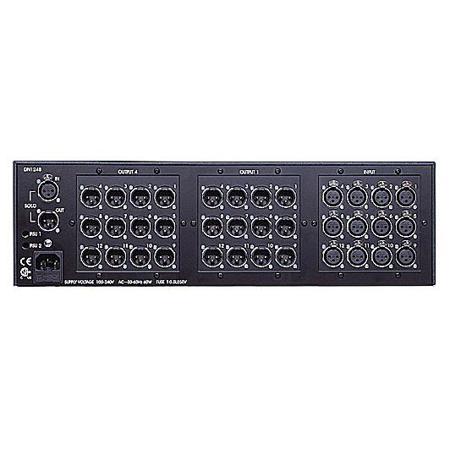

• Input and Output 1 duplicated on front and rear panels for cable looming flexibility
• Individual LED metering for each channel
• Electronic outputs on rear panel for PA connections and front panel transformer outputs for broadcast feeds
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in England

DN1248 Plus Architect's & Engineer's Specification
The Mic Splitter shall provide 12 discrete audio channels in a standard 3U 19" rack mount chassis. Each channel shall have a microphone preamplifier, two transformer-isolated outputs and two electronically balanced outputs. Optionally, all outputs may be transformer-isolated. Each channel shall also provide separate +15 dB boost and -30 dB pad switches, switchable +48V phantom power, an earth lift function and a soloing facility. The Mic Splitter shall have a headphone amp to allow the monitoring of soloed audio channels. The headphone amplifier shall have a headphone jack socket for the headphones, a rotary level control for the headphones output and a six-segment LED bargraph for monitoring the soloed signal level.

The audio connections for each of the twelve audio channels shall be via 3-pin XLR style connectors -
• Inputs two parallel-connected female XLR connectors (one on the front panel and the other on the rear panel).
• Transformer Outputs one male XLR connector on the front panel for each of the two outputs.
• Electronic Outputs one output with one front and one rear panel male XLR connectors, one output with one rear panel male XLR connector only.
• The rear panel input XLRs and output XLRs shall be mounted on three removable plates and be grouped as one panel of input connectors and two panels of output connectors.
• All inputs and outputs shall be made available internally on PCB-mounted terminal strips to enable users to retrofit alternative rear panel connector configurations.
• The unit shall be capable of operating from a 90 to 250V, 50 to 60 Hz AC power source. The unit shall have the option of dual redundant power supplies.
• The Mic Splitter shall be the KLARK TEKNIK model DN1248 plus and no alternative option is available.
