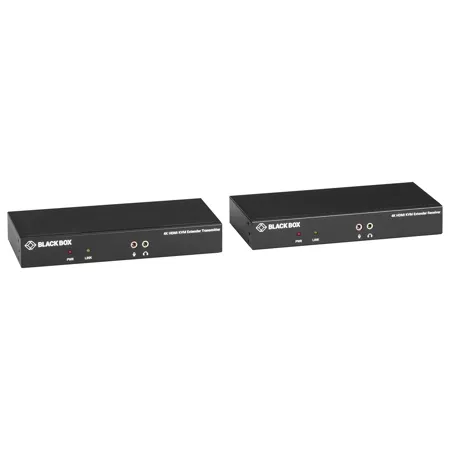

Black Box KVX Series 4K HDMI Single Head KVM CATx Extender Kit, 328' Range

SKU: BBXKVXLCH100 MFR: KVXLCH-100
Earn VIP Reward Points

Key Features

  • Extend your 4K HDMI KVM signal up to 328 feet over CATx cable for flexible workstation setups.
  • Enjoy crystal-clear 4K@30Hz resolution, ensuring superior video performance for demanding tasks.
  • This reliable KVM extender kit includes all necessary cables for quick and easy installation.
  • Benefit from broad compatibility, as this OS-independent solution works seamlessly with your existing systems.
  • Connect multiple USB devices with four available USB Type-A ports on the receiver for enhanced productivity.
  • Experience durable, high-performance connectivity with a robust metal chassis designed for long-term use.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Black Box KVX KVM Extender Kit Specifications

  • Color

    Black

  • Material

    Metal Chassis

  • DDC Support

    DDC, DDC2, DDC2B

  • Distance

    CATx cable: Up to 328' (100m)

  • Indicators

    1x Power LED (red)
    1x Link LED (green)

  • MTBF

    Transmitter: 74,542 Hours
    Receiver: 81,621 Hours

  • Operating Humidity

    0 to 80%, non-condensing

  • Operating System

    OS Independent

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Power

    External 5-VDC, 2-A Power Supply

  • Resolution

    3840x2160@30Hz, 4K@30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Connectors

    CATx Transmitter:
    Host Connection:
    Video Input: 1x HDMI (Female);
    Serial Control Port: 1x DB9 (Female);
    Link Port: 1x RJ45 (Female);
    USB: 1x USB Type-B (Female);
    Audio: 1x Line in; 1x Line out;
    Local Video Output: 1x HDMI (Female)

  • Connectors (Contd.)

    CATx Receiver:
    Console Connection:
    Video Output: 1x HDMI (Female);
    Serial Control Port: 1x DB9 (Male);
    Link Port: 1x RJ45 (Female);
    USB: 4x USB Type-A (Female);
    Audio: 1x Mic In; 1x Speaker Out

  • Dimensions (H x W x D)

    Transmitter/Receiver: 0.83 x 3.27 x 7.09" (2.1 x 8.3 x 18cm)

  • Weight

    Transmitter: 13.12 oz (372g)
    Receiver: 13.33 oz (378g)

About Black Box KVX KVM Extender Kit

The KVX HDMI KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Black Box KVX KVM Extender Kit Features

  • HDMI video resolution up to UHD 4K (3840x2160 at 30Hz)
  • Remote access up to 100m over CAT5/6
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local video port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through

Key Features

  • Extend your 4K HDMI KVM signal up to 328 feet over CATx cable for flexible workstation setups.
  • Enjoy crystal-clear 4K@30Hz resolution, ensuring superior video performance for demanding tasks.
  • This reliable KVM extender kit includes all necessary cables for quick and easy installation.
  • Benefit from broad compatibility, as this OS-independent solution works seamlessly with your existing systems.
  • Connect multiple USB devices with four available USB Type-A ports on the receiver for enhanced productivity.
  • Experience durable, high-performance connectivity with a robust metal chassis designed for long-term use.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 5V/2A Power Supplies
  • 4' HDMI Cable
  • 6' 3.5mm Audio Cable
  • 6' USB-B to USB-A Cable
  • Black Box 2 Year Limited Warranty
