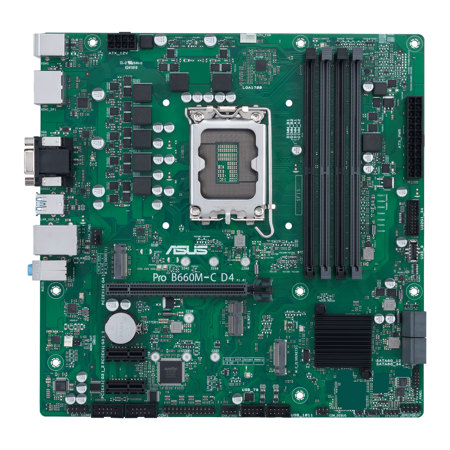

ASUS Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard

SKU: ASPB660MCD4 MFR: 90MB19B0-MVAAYC
$144.99
Earn VIP Reward Points

Key Features

  • Maximize performance with the ASUS Pro B660M-C D4 motherboard, supporting Intel 12th Gen CPUs.
  • Experience fast data transfer speeds with PCIe 4.0 on this Micro-ATX commercial motherboard.
  • Ensure 24/7 reliability with ASUS's anti-moisture coating and overcurrent protection features.
  • Connect all your devices using multiple USB ports, including USB 3.2 Gen 1 and USB 2.0 headers.
  • Enjoy high-definition audio with the Realtek 7.1 Surround Sound CODEC for immersive sound.
  • Easily manage your system with ASUS Control Center Express (ACCE) IT management software.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$37.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ASUS Pro B660M-C D4-CSM Specifications

  • CPU

    Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Intel B660 Chipset

  • Memory

    4x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    Optimem

  • Graphics

    2x DisplayPort
    1x D-Sub port
    1x HDMI port

  • Expansion Slots

    Intel 12th Gen Processors: 1x PCIe 4.0/3.0 x16 slot
    Intel B660 Chipset: 2x PCIe 3.0 x1 slots

  • Storage

    Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode

    Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
    4x SATA 6Gb/s ports

  • Ethernet

    1x Intel 1Gb Ethernet
    1x Intel 1Gb Ethernet
    ASUS LANGuard

  • Wireless & Bluetooth

    M.2 slot only (Key E, CNVi & PCIe)

  • USB

    Rear USB (Total 4 ports):
    2x USB 3.2 Gen 1 ports (2 x Type-A)
    2x USB 2.0 ports (2 x Type-A)

    Front USB (Total 7 ports):
    1x USB 3.2 Gen 1 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

  • Audio

    ALC897
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    Supports: Jack-detection, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback

  • Back Panel I/O Ports

    2x USB 3.2 Gen 1 ports (2 x Type-A)
    2x USB 2.0 ports (2 x Type-A)
    2x DisplayPort
    1x HDMI port
    1x D-Sub port
    1x Intel 1Gb Ethernet port
    3x Audio jacks
    1x PS/2 keyboard (purple) port
    1x PS/2 mouse (green) por

  • Internal I/O Connectors

    Fan and cooling related:
    1x 4-pin CPU Fan header
    2x 4-pin Chassis Fan headers

    Power related:
    1x 24-pin Main Power connector
    1x 8-pin +12V Power connector

    Storage related:
    2x M.2 slots (Key M)
    4x SATA 6Gb/s ports

    USB:
    1x USB 3.2 Gen 1 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2x USB 2.0 headers support additional 4 USB 2.0 ports

  • Internal I/O Connectors (Contd.)

    Miscellaneous:
    1x Clear CMOS header
    1x Chassis Intrude header
    2x COM Port headers
    1x Front Panel Audio header (AAFP)
    1x COM debug header
    1x LPT header
    1x Mono-out header(with Amp IC)
    1x M.2 slot (Key E)
    1x SMBUS header
    1x Speaker header
    1x 10-1 pin System Panel header

  • Special Features

    ASUS EZ DIY:
    Box Headers

    Bespoke Motherboard Design & Business Focused Features:
    Q-LED Core
    ASUS Self Recovering BIOS
    ASUS Event Log
    ASUS Commercial BIOS kit
    Anti-Moisture
    24/7 Reliability
    Overcurrent Protection

    TPM IC onboard

  • Software Features

    ASUS Exclusive Software
    IT Management software supported
    ASUS Control Center Express(ACCE)

  • BIOS

    128Mb Flash ROM

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 11 64-bit, Windows 10 64-bit

  • Form Factor

    microATX
    9.6 x 9.6" (24.4 x 24.4cm)

  • UPC Code

    195553509435

About ASUS Pro B660M-C D4-CSM

Just when you thought motherboards couldn't get any better, the Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard steps in. This high-quality, durable, and reliable motherboard is designed for business use, offering enhanced security, manageability, and serviceability.

As a product of ASUS, a globally recognized brand known for its top-tier motherboards, you can expect world-class after-sales service and long-term availability. This innovative motherboard is part of the ASUS Corporate Stable Model (CSM) program, designed to provide stable, reliable motherboards with up to 36-month product lifecycle support and a 6-month end-of-life notice.

This advanced motherboard is compatible with 12th Gen Intel Core processors and offers PCIe 4.0 connectivity for storage devices and graphics cards. The wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed.

The ASUS Self-recovering BIOS technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware. The motherboard also features a Trusted Platform Module (TPM) for enhanced data protection, network security, digital identities, and platform integrity.

The motherboard is internationally certified by multiple safety and environmental organizations, making it a safe, secure, and sustainable solution for your business computing needs. It features an anti-moisture coating for protection against moisture and corrosion, anti-sulfur resistors for long-term reliability, and a corrosion-resistant stainless-steel back I/O panel for greater durability.

The motherboard also features overvoltage protection, ESD Guards for electrostatic discharge protection, and LANGuard for hardware-level networking protection. Rigorously tested for 24/7 reliability, this motherboard can handle diverse temperature and humidity ranges.

The ASUS Management Suite offers efficient IT management with a built-in event log for easier troubleshooting, BIOS updates, AC power loss tracking, RTC reset tracking, chassis intrusion records, and hardware change and status tracking.

The motherboard also features Q-LED diagnostic display and COM debug header for efficient troubleshooting and assembly process, box headers for fast connector installation, and fixed-position connectors for consistency across product generations.

In summary, the Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard is a high-quality, durable, and reliable solution for your business computing needs, offering enhanced security, manageability, and serviceability.

ASUS Pro B660M-C D4-CSM Features

  • Intel LGA 1700 socket Ready for 12th Gen Intel Core processors
  • A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • A self-recovering BIOS and TPM to safeguard PCs
  • High-quality components and rigorous testing to help ensure durability in harsh environments
  • An event log and commercial BIOS kit to enable easy maintenance
  • Q-LED diagnostic display and COM debug header to facilitate building and support processes

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Maximize performance with the ASUS Pro B660M-C D4 motherboard, supporting Intel 12th Gen CPUs.
  • Experience fast data transfer speeds with PCIe 4.0 on this Micro-ATX commercial motherboard.
  • Ensure 24/7 reliability with ASUS's anti-moisture coating and overcurrent protection features.
  • Connect all your devices using multiple USB ports, including USB 3.2 Gen 1 and USB 2.0 headers.
  • Enjoy high-definition audio with the Realtek 7.1 Surround Sound CODEC for immersive sound.
  • Easily manage your system with ASUS Control Center Express (ACCE) IT management software.

What's in the box:

  • ASUS Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard
  • 2x SATA 6Gb/S Cables
  • I/O Shield
  • M.2 SSD Screws
  • M.2 Key E Screws
  • Support DVD
  • ACC Express Activation Key Card
  • User Guide
  • ASUS 3 Year Limited Warranty
