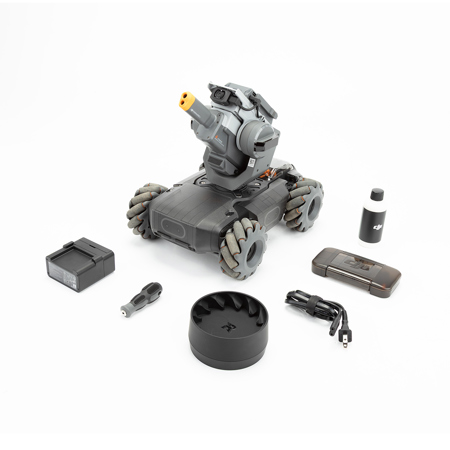

Used DJI RoboMaster S1 Educational Robot
SKU: US1917255 MFR: CP.RM.00000103.02
Earn VIP Reward PointsKey Features
- Game-Changing Educational Robot: Merges deep learning with gameplay
- DIY Modular Design: Enhance mechanical understanding via assembly
- Dynamic Blaster: LED trajectories and immersive sound effects
- Wide Gimbal Rotation: Expansive 540 Degree x 65 Degree view with high precision
- Omnidirectional Mobility: Mecanum wheels allow versatile movement
- Powerful Motor Output: 250 mNfm torque with precise control algorithms
INCLUDES FREE WARRANTY
- This used item comes with a free 90-day warranty. ?
Free Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Accessories
Learn
Specs
Q&A
About DJI RoboMaster S1 Educational Robot
FEATURED REVIEWS
More than a toy
My 9 year old boy assembled it by himself and really enjoyed the 2.5 hour work. Then it became a great robot toy for a lot fun even in the solo mode. After a couple of days, my son began to program it using Scratch, and it is a education platform. It's a motivating toy for kids.
RoboMaster S1.
Learn to Win
_71534.png)
Build It!
A modular design lets you build your S1 from the ground up, furthering the fun and providing hands-on experience with every screw and wire.
Intelligent Controller
Using a powerful CPU, the Intelligent Controller can simultaneously support functions such as low-latency high-definition image transmission, AI computing, and programming development. It also coordinates transmission seamlessly to execute command signals.
Blaster
The S1 Blaster uses LED lights to outline launch trajectories for its gel beads and infrared beams. Vivid sound effects and recoil action add to the experience for an immersive battle simulation. For added safety, the Blaster uses non-toxic gel bead projectiles and even features limitations on launching rate and angle.
2-Axis Motorized Gimbal
The gimbal’s yaw/pitch rotation range is 540° × 65°, offering an expansive field of view for the FPV camera. The built-in direct drive brushless motor works together with the IMU and advanced algorithms to allow gimbal movements with a vibration control accuracy [1] within ±0.02°, delivering smooth image transmission and a precision control experience.
Mecanum Wheels
The S1 comes with four Mecanum wheels, each with 12 rollers that allow omnidirectional movement and precision control. Front axes suspension allows for added versatility during operation.
High-Performance Motor
The S1 comes with a customized M3508I motor that features an integrated FOC ESC with an output torque of up to 250 mN•m. Linear Hall-effect sensors with advanced algorithms allow closed-loop control for added precision. Additional safety mechanisms deliver outstanding stability.
Intelligent Sensing Armor
Six intelligent armor panels cover the S1 to detect gel bead or infrared beam strikes. The referee system can analyze and communicate hit data, incorporating it into gameplay in real time.
Learn By Doing!
The RoboMaster S1 bridges the digital world with the real one, bringing abstract theories to life through practical operations. The S1 supports Scratch and Python programming languages, allowing users to experience math, physics, and AI technology in a cutting-edge and inspiring way.
Scratch & Python Programming.
The S1 supports the Scratch and Python programming languages. This allows you to take your abilities to the next level, whether you are new to coding or are already on your way to becoming an expert.
Scratch 3.0
Classic visual programming language used in primary and secondary schools worldwide.
Python
Widely used in the field of artificial intelligence.
Powerful programming blocks enable you to explore a series of new functions with your S1. For example, new Scratch blocks for line follow allow the S1 to make turns at T-junctions and intersecting roads. Additionally, with new Scratch and Python interfaces for the speaker module, you can add musical notes to the action or even write a song for your S1 to play
Road To Mastery.
Road to Mastery offers project-based courses that will enhance users’ understanding of programming languages. From robotics applications to AI technology, with different projects for both beginners and experts
Robo Academy.
RoboAcademy offers a curriculum of videos and programming guides. In-depth videos introduce robotics in simple but profound ways, giving users insightful and relevant scientific knowledge. Programming guides offer detailed explanations of various modules, making it easier for users to enjoy the fun of programming.
Endless Possibilities.
Up to 46 customizable components give you unlimited space for innovation, enabling you to grow and learn in an exciting way that expands the capabilities of your S1, and yourself. Six PWM ports and one SBus port support customized accessories, granting further options. Operate your S1 with a remote controller that supports SBUS protocol, or program complex codes with an external development board to explore the unlimited possibilities of the S1 and the magic of the robotic world.
*Accessories shown in this image are not official accessories and are for illustrative purposes only
Line Recognition
The S1 can be programmed to automatically follow a line on the ground. The more math and physics knowledge that is applied, the more adeptly the S1 will be able to complete this task.
Vision Marker Recognition
Recognize up to 44 Vision Markers which feature numbers, letters, and special characters that expand the possibilities for coding and combat.
People Recognition
Thanks to advanced computer vision technology, the S1 is able to identify and track any individual you select in the S1’s FOV.
Clapping Recognition
The S1 is equipped with a built-in clap recognition module, which can be programmed for unique responses.
Gesture Recognition
The S1 can recognize various physical gestures and can be programmed for self-defined responses.
S1 Robot Recognition
The S1 can recognize other S1 units, an ability that can expand your gameplay and entertainment possibilities.
Get Started With Automatic Driving.
By utilizing Vision Markers to create "traffic lights" and other obstacles, users can write their own programs that allow the S1 to drive automatically and execute complex tasks. Explore mathematical principles involving robotic control and motion mechanics through the S1's six programmable artificial intelligence modules. Get an in-depth understanding of AI as you develop these skills and many more.
RoboMaster Robotics Competition.
The S1 was inspired by DJI’s annual RoboMaster robotics competition. Since being founded in 2015, over 20,000 students from more than 400 schools have participated in this thrilling competition that tests wit, engineering, and problem-solving skills.
The World is Your Arena.
Build your own competition arena anywhere, anytime and enjoy a variety of gameplay modes with an immersive FPV experience unlike any other. You can even record and share all the action with the touch of a button.
See the Action.
Enjoy a unique and immersive driving experience with the S1's exhilarating FPV perspective.
_55074.png)
Race.
Compete against opponents on your own custom track. Unlock special skills like extreme speed by recognizing specific Vision Markers, or unleash weapons like dizziness against competitors to gain an edge and win the race.
_02382.png)
Free-For-All.
There can only be one winner in this competition of wits and speed. Use custom skills to get an edge and defeat opponents in this thrilling melee that utilizes the S1's unique referee system and intelligent sensing armor.
Conquest.
Build your own competition arena and divide players into two teams. Set up your team strongholds, and the first team to occupy all of their opponent strongholds wins.
Develop Custom Skills.
In any competition, wisdom is equally as important as power. The S1 enables users to apply their classroom knowledge to compile custom coding, unlocking unique functions that will surprise onlookers and defeat competitors. With its new education concept, the S1 helps users embrace the joy of learning in new and exciting ways.
Intercom.
The new Intercom feature lets you enjoy voice interactions with friends nearby. You can also pre-record audio files in the RoboMaster app on your mobile device and play them on the S1, unlocking an array of exciting new possibilities.
