This product works great. It is so convenient not having to align audio in post. It also gives you the audio controls on an external interface to be able to make adjustments quickly! Battery power doesn't last as long as would like, but other than that works great! Would recommend.
MITCHELL W.
48k / 96k Hz
16 / 24 bit
2 channels
XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4") standard TRS jacks Input
2k Ohm or higher
+6dBu (ATT setting "46dB")
-60dBu (ATT setting "0dB")
66dB
10k Ohm or higher
+24dBu
+4dBu
66dB
3.5mm(1/8") Stereo mini jack
2k Ohm or higher
+6dBV (ATT setting "46dB")
-60dBV (ATT setting "0dB")
66dB
2.7V
3.5mm(1/8") Stereo mini jack
0.29Vrms (Fixed,OUTPUT setting "CAMERA")
0.5Vrms (Output volume setting at maximum, OUTPUT "HEADPHONE")
16 to 250 Ohm
32 to 104 Degree F (0 to 40 Degree C)
2.0W (maximum)
20Hz to 20kHz: +0.5dB/-1.0dB( to digital input,Fs=48kHz)
20Hz to 40kHz: +0.5dB/-1.0dB( to digital input,Fs=96kHz)
-120dBu or less(150Ohm termination, GAIN maximun, A-Weight)
95dB or higher (22kHzLPF+A-Weight)
Required, Included
-
AA
2
3.23 x 4.68 x 4.33" (88.2 x 119.1 x 110mm) (not including protrusions)
12.59 oz (357g) (not including batteries, mic holder attached, battery holder attached)

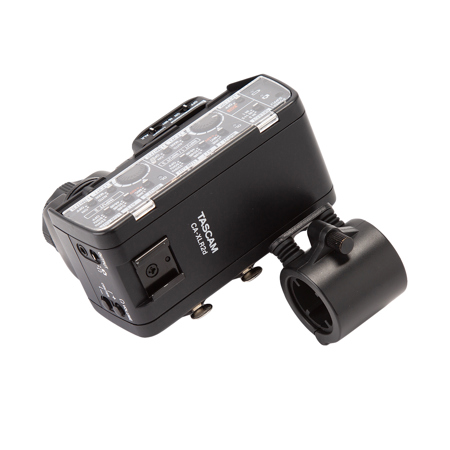

Planned and developed in collaboration with Nikon, this analog interface camera kit provides a high-quality sound recording environment to wide-range of camera users.
Select the Best Microphone According to the Application
Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.
High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range
CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.
Designed For a High Degree of Freedom
A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.
Built-in Processing With User-friendly Control and Highest Recording Quality
CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches. The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo. The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.
Achieve High-quality Sound Recording With Your Current Camera
CA-XLR2d-AN is compatible with virtually any camera that has an analog audio input. Attach the included battery box (2 AA batteries), and connect the analog output of CA-XLR2d to the microphone input of the camera with an audio cable.
