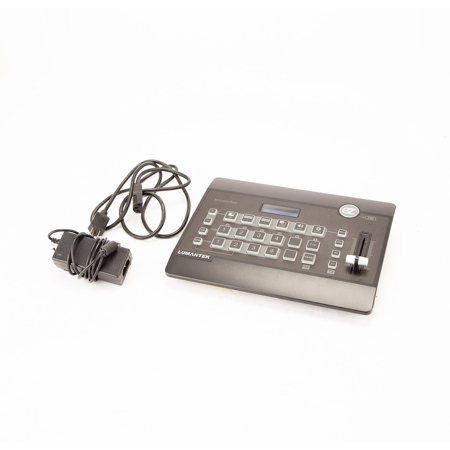

Used Lumantek ez-Pro VS4 4 Channel Full HD 4x1 Seamless Switcher (Stand-alone)

SKU: US1941426 MFR: EZ-PRO VS4
Earn VIP Reward Points

What`s in the box:

  • Lumantek ez-Pro VS4 4 Channels Full HD 4x1 Seamless Switcher (Stand-alone)
  • Power Supply
See more

Key Features

  • Seamlessly switch between 4 HDMI & SDI inputs with this Full HD video switcher.
  • Enjoy low latency, reliable streaming for live events and professional broadcasts.
  • Create dynamic presentations using PIP, logo overlays, and chroma/luma keying.
  • Experience high resolution video output at 1080p60 for crystal-clear visuals.
  • Benefit from good compatibility with various SD, HD, and Full HD video formats.
  • Set up is easy, offering durable build quality for dependable, long-term use.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$33.99

2 Year

$53.99

3 Year

$78.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Lumantek ez-Pro VS4 Specifications

  • Video Input

    2x SDI(BNC 75Ohms), 3x HDMI

  • Analog Audio Input

    2x 6.35mm(1/4") Phone Jack(Balanced) +/- 10V (Max) at -10dB

  • Video Output (PGM)

    1x HDMI, 1x SDI(BNC 75Ohms)

  • Multiview Output

    1x HDMI

  • Analog Audio Output

    1x 3.5mm Stereo Jack

  • Key

    1x PIP
    2x LOGO
    1x CHROMA/LUMA

  • Internal Processing

    4:2:2 10bits/8bits

  • Resolution supported: Input

    SD : 480i59/ 576i50
    HD : 1080p30/1080p29/1080p25/1080p24/1080p23/1080i60/1080i59/1080i50/720p60/720p59/720p50
    Full HD: 1080p60/1080p59/1080p50

  • Resolution supported: Output

    HD : 1080p30/1080p29/1080p25/1080p24/1080p23/1080i60/1080i59/1080i50/720p60/720p59/720p50
    Full HD: 1080p60/1080p59/1080p50

  • Management

    Console

  • USB 2.0

    At GUI application, Firmware Upgrade, LOGO Update

  • Power Input

    DC 7 - 14V

  • Power Consumption

    20W(max.)

  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions(HxWxD)

    Excluding Connectors: 70x297x230

  • Weight

    1.7kg (3.75 lbs)

About Lumantek ez-Pro VS4 4 Channel Full HD 4x1 Seamless Switcher (Stand-alone)

Explore the advanced capabilities of the ez-Pro VS4, a high-tech 4-channel full HD 4x1 seamless switcher. This innovative device is designed to handle multiple video sources, effortlessly transitioning between them with minimal delay or loss of image quality. Ideal for professional use in live events, such as concerts, conferences, and trade shows, the ez-Pro VS4 ensures a smooth, high-definition display on a single screen.

This sophisticated switcher accepts video input through HDMI and/or SDI ports, providing flexibility in connecting various devices. Each of the four channels is equipped with built-in scalers, allowing for seamless adjustment of output video resolutions, even when input sources have different resolutions.

The ez-Pro VS4 is not just a switcher; it's a powerful tool for creating dynamic visual experiences. It offers easy control over logo insertion, Chroma/Luma, screen transitions, and Picture-in-Picture (PIP) settings. With the ability to instantly load and display two logo insertion still images, you can customize your display to suit any event or presentation.

The device supports a versatile combination of inputs, including 2 x 3G-SDI & 2 x HDMI or 1x 3G-SDI & 3 x HDMI, plus stereo audio. It outputs through 1x 3G-SDI and 1x HDMI, ensuring compatibility with a wide range of display devices.

The ez-Pro VS4 stands out with its user-friendly multiview feature. This allows you to monitor all sources simultaneously on a single screen, providing a comprehensive overview of video inputs, audio levels, the preview (PVW), and the program (PGM) screen. The Picture-in-Picture (PIP) can also be repositioned and resized on the multiview screen for optimal viewing.

Experience the convenience of a stand-alone switcher with the ez-Pro VS4, a device that combines professional-grade performance with ease of use. Whether you're managing video sources for a church service, educational activity, wedding, ceremony, theater, or live concert, the ez-Pro VS4 is the reliable, high-quality video switcher you need.

Lumantek ez-Pro VS4 4 Channel Full HD 4x1 Seamless Switcher (Stand-alone) Features

  • Seamless 4-channel full HD switcher for professional live event video mixing
  • Built-in scalers on each input to adjust resolutions up to 1080p for diverse video sources
  • Versatile input combinations with 3G-SDI and HDMI interfaces for comprehensive connectivity
  • User-friendly multiview for simultaneous monitoring of video inputs, audio levels, and screen layouts
  • Advanced control features including logo insertion, Chroma/Luma key, and Picture-in-Picture (PIP)
  • Stereo balanced audio input with embedding and de-embedding capabilities for integrated sound management

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Seamlessly switch between 4 HDMI & SDI inputs with this Full HD video switcher.
  • Enjoy low latency, reliable streaming for live events and professional broadcasts.
  • Create dynamic presentations using PIP, logo overlays, and chroma/luma keying.
  • Experience high resolution video output at 1080p60 for crystal-clear visuals.
  • Benefit from good compatibility with various SD, HD, and Full HD video formats.
  • Set up is easy, offering durable build quality for dependable, long-term use.
