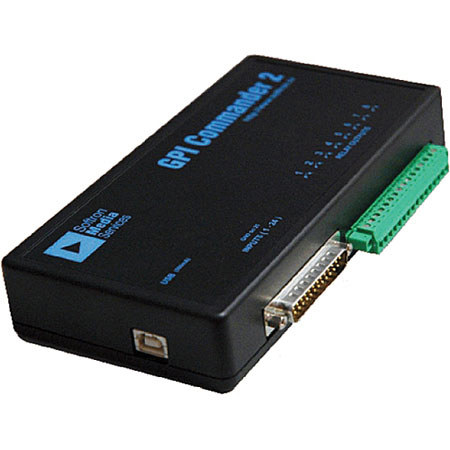

Softron GPI Commander 2, 24-Input GPI, 8-Output GPI

SKU: SO3IB27 MFR: 3IB27
Earn VIP Reward Points

Key Features

  • Effortlessly manage your video workflow with 24-input GPI for precise control.
  • Utilize 8-output GPI to seamlessly integrate with your existing broadcast setup.
  • Enjoy real-time video format conversion and stable signal transmission via USB.
  • Easily connect using the DB-25 connector, ensuring high-resolution format compatibility.
  • Get rackmountable convenience (kit not supplied) to optimize your studio space.
  • Affordable GPI Commander offers robust control; developers can request the API.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Softron GPI Commander 2 Specifications

  • Input

    1x DB-25 connector for GPI (24 inputs, 1 ground)

  • Output

    1x "Phoenix" connector for GPI with screw contacts (8 relay outputs)

  • Power

    Via USB

  • Minimum System Requirements

    Apple G4, OS 10.4.11, 2GB RAM

  • Rackmountable

    Yes (kit not supplied)

  • Windows Compatible

    Yes (no software supplied - developers can ask for the API)

  • UPC Code

    685167164026

About Softron GPI Commander 2

Softron GPI Commander 2 is a USB-to-GPI and GPI-to-USB conversion box. Designed to pass along AppleScript-based commands to and from other computers and devices, GPI Commander 2 is managed by the Mac-based GPI Commander app, available via free download. Commander 2 works with most of Softron's other Mac-based broadcast workflow automation software. It also works with applications from other vendors, provided they can send and/or receive AppleScripts. Or, by using the available SDK and writing your own code, you can directly address the hardware without employing AppleScript. (The hardware is also compatible with Windows; however, no software is supplied.

You can control the unit by writing C code and an API is available upon request.) GPI Commander 2 connects to your computer via USB and receives power through the connection.

Each of the DB-25 connector's 24 GPI inputs (open-collector type, common ground) can be assigned an AppleScript. When their contact-closure status changes, that triggers the AppleScript to run. This could, for instance, cause Softron's MovieRecorder to start recording, or the OnTheAir application could be scripted to begin its playlist. A single AppleScript can send multiple commands to multiple applications.

There are also eight independent relay outputs on the "Phoenix" connector for sending GPI commands to other computers and devices. Each GPI Commander 2 unit has a unique serial ID, so you can attach more devices to your host computer via USB to expand the possible inputs and/or outputs.

Key Features

  • Effortlessly manage your video workflow with 24-input GPI for precise control.
  • Utilize 8-output GPI to seamlessly integrate with your existing broadcast setup.
  • Enjoy real-time video format conversion and stable signal transmission via USB.
  • Easily connect using the DB-25 connector, ensuring high-resolution format compatibility.
  • Get rackmountable convenience (kit not supplied) to optimize your studio space.
  • Affordable GPI Commander offers robust control; developers can request the API.
