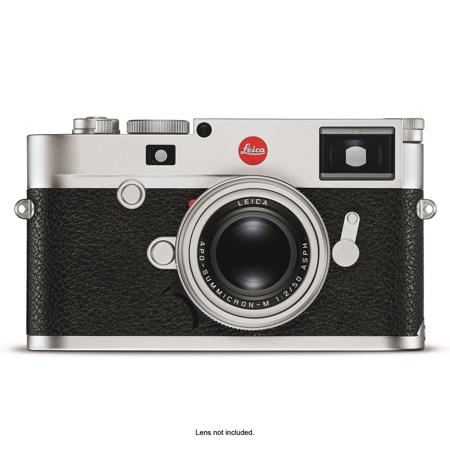

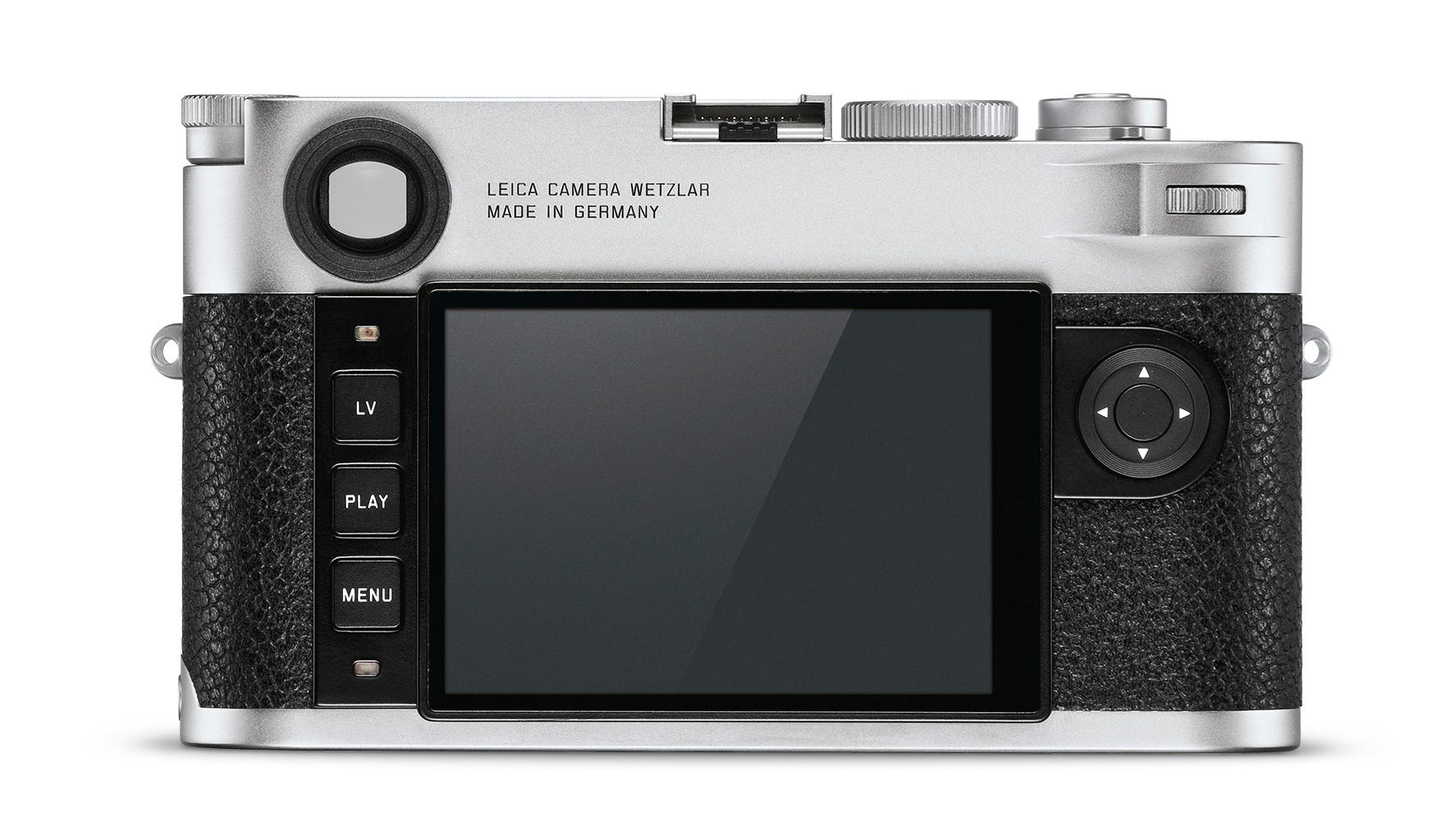

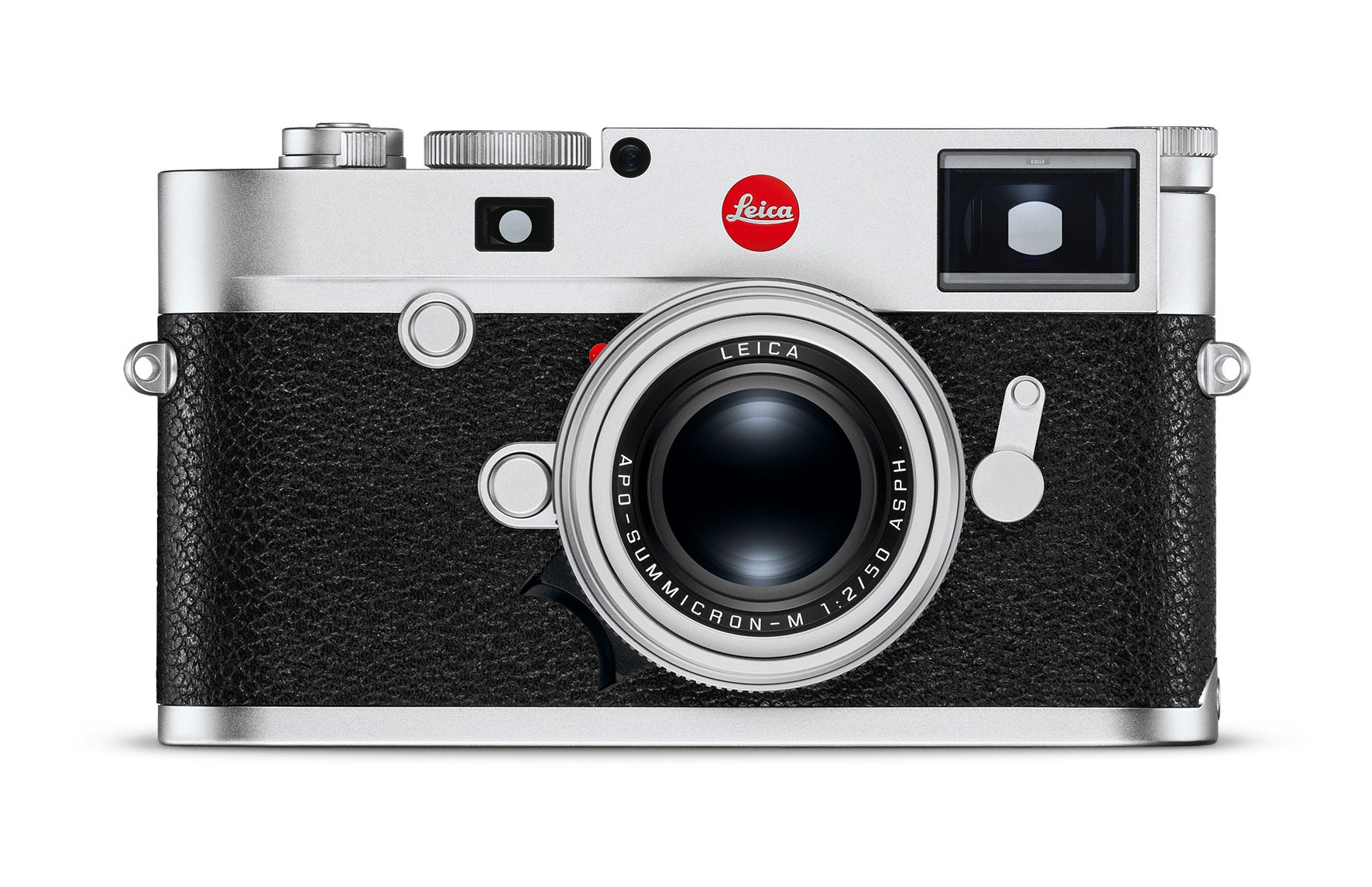

Leica M10-R Digital Rangefinder Camera, Silver Chrome

Compact digital view and rangefinder system camera

Leica M bayonet with additional sensor for 6-bit coding

Leica M lenses, Leica R lenses with an optional adapter (available accessory)

CMOS chip, active area approx. 24x36 mm, without low-pass filter

DNG: 7864 x 5200 pixels (40,89 MP)
JPEG: 7840 x 5184 pixels (40,64 MP), 5472 x 3648 pixels (20 MP), 2976 x 1984 pixels (6MP)

DNG (raw data, 14 bit, compressed loss-free), JPEG (8 bit)

DNG: 40-60 MB, JPEG (40MP)10-20 MB: Depending on resolution and picture content

2GB / 10 pictures in series

SD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB

German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Exposure metering through the lens (TTL), with working aperture

Light reflected by the blades of the 1 shutter curtain onto measuring cell

At room temperature and normal humidity for ISO 200, at aperture 1.0 EV-2 to EV19 at aperture 32. Flashing of the left triangular LED in the viewfinder indicates values below the metering range

ISO 100 to ISO 50.000, adjustable in 1/3 ISO increments, choice of automatic control or manual setting

Choice of automatic shutter speed control with manual aperture preselection - aperture priority A, or manual shutter speed and aperture setting

Via accessory shoe with central and control contacts

Optionally triggered at the 1st or 2nd shutter curtain

1/180 s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS-compatible Leica system flash units

Using centre-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter

2 silicon photo diodes with collection lens on the camera base

+/-3EV in1/3EV increments

Using flash symbol LED (in viewfinder only)

Large, bright line frame viewfinder with automatic parallax compensation

Calibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available

By activating two bright lines each: For 35 and 135mm, or for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached

The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens

At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by the corresponding bright line frame and slightly less for shorter distance settings than 2m

0.73x (For all lenses)

Split or superimposed image range finder shown as a bright field in the centre of the viewfinder image

50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)

Four-digit digital display with exposure alerts above and below

3" color TFT LCD monitor with 16 million colors and 1,036,800 pixels, approx. 100 % image field, glass cover of extremely hard, scratch-resistant Gorilla glass, color space: sRGB, for Live-View and review mode, displays

Metal blade focal plane shutter with vertical movement

For aperture priority: (A) continuous from 16min to 1/4000s., for manual adjustment: 8s to 1/4000s in half steps, from 8s to 16min in half steps, B: For long exposures up to max 16min (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes)

(1/180s): Fastest shutter speed for flash synchronization, HSS linear flash mode possible with all shutter speeds faster than 1/180s (with HSS-compatible Leica system flash units)

Approx. 4.5 pictures/s

Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated

Delay optionally 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor

Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release

1 Lithium-ion rechargeable battery
Nominal voltage 7.4V
Capacity 1100mAh.
Maximum charging current/voltage: DC 1000mA, 7.4V
Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery
Made in Indonesia
Operating conditions (in camera): 32 - 104 Degree F (0 Degree C - + 40 Degree C)

Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A
Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA
Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd.
Made in China
Operating conditions: 32 - 95 Degree F (0 Degree C - + 35 Degree C)

Optional (not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data are written to EXIF header in picture files (only with Leica Visoflex viewfinder attached, available as an accessory)

Complies with IEEE 802.11b/g/n standard (standard Wifi protocol)
Channel 1-11
Encryption method: Wifi-compatible WPA/WPA2 encryption
Access method: Infrastructure mode

All-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black chrome plated finish

Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)

A 1/4 ( 1/4") DIN stainless steel in bottom

32 - 104 Degree F (0-40 Degree C)

ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (available as an accessory)

5.4 x 1.51 x 3.1" (139 x 38.5 x 80mm) (Approx.)

23.2 oz (660g) (with battery) (Approx.)

8.14 Wh

4022243200036
