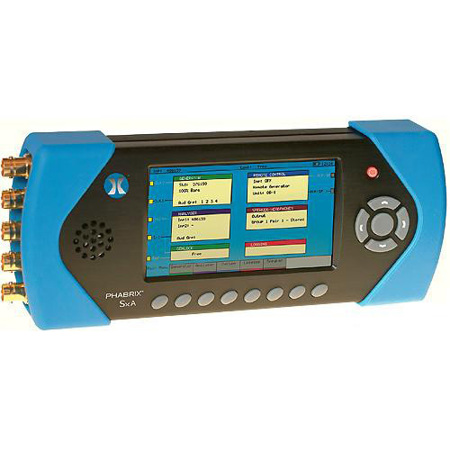

Leader PHABRIX SxD 3 in 1 Generator, Analyzer and Monitor

SKU: LDRPHABRIXSX

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Leader PHABRIX SxA Specifications

  • Video

    SDI: 3G-SDI, HD-SDI, SD-SDI
    Outputs: 1 x 75OhmS BNC
    Inputs: 1x 75OhmS BNC
    Genlock: bi/tri/SDI with cross lock
    Adjustable: timing 0 to 1 Frame
    Text Identification: Yes with font, color, point size
    Logo Identification: Yes
    EDH: Yes (SD-SDI)

  • Video Test Signals

    Resolution: 10 bits
    Static Test Patterns: 32+ including full frame
    User Defined: DPX, YUV, TGA, BMP
    Zone Plate: Yes

  • Video Inputs/outputs

    Eye Bit Rates: 3Gbps, 1.485Gbps, 270Mbps
    Jitter SMPTE: specification filters
    Jitter Thermometers: alignment, timing

  • Audio

    Internal Speaker: 0.5W
    Audio DAC: 24 bit stereo
    Headphone Socket: 3.5mm with auto line out
    Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
    16 Channel Embedded Audio: Yes
    AES Output: 1x 75Ohms BNC
    AES Input: 1x 75Ohms BNC

  • Audio Test Signal

    Fixed Tones: 17
    Variable Tones: 1Hz to 24Khz in 1Hz steps
    Intermittent Tone: Yes
    White Noise Generation: Yes
    Audio Levels Variable: 0 to -100dB in 1dB steps
    Audio Phase Invert: Yes

  • Display Resolution

    480 x 272 pixels auto scaling

  • Display Type

    16:9 24 bit color TFT

  • Display Size

    95 x 54mm

  • Display: Processing

    All digital

  • Power

    AC power supply (universal)
    3-hour lithium polymer integral battery supply

  • Dimensions (H x W x D)

    3.62 x 8.86 x 1.65" / 9.19 x 22.50 x 4.19cm

About Leader PHABRIX SxA

A sophisticated and advanced piece of technology, the PHABRIX SxD 3-in-1 Generator, Analyzer, and Monitor is specifically engineered for the discerning professional broadcast engineer. This state-of-the-art device boasts a high-resolution 4.3" 16:9 TFT monitor and user-friendly menu buttons, ensuring a seamless user experience.

The PHABRIX SxD is a trailblazer in its field, being the first to support 3G-SDI, HD-SDI, SD-SDI video, and AES audio testing and monitoring. This high-tech feature is crucial in the fast-paced broadcasting industry where technology is constantly evolving.

Equipped with a comprehensive range of both static and animated test patterns, the PHABRIX SxD is the perfect tool for studio, OB, and lab environments. It operates efficiently on either the internal battery or the included AC adapter, providing flexibility and convenience.

The PHABRIX SxD further enhances its functionality with Auto Bi-level, Tri-level, and SDI genlock with cross lock capability. Its audio features are equally impressive, supporting up to 16 channels of embedded audio.

With the added benefit of built-in USB and Ethernet connectivity for remote operation, the PHABRIX SxD 3-in-1 Generator, Analyzer, and Monitor is setting new standards in portable video/audio signal test generation and monitoring. This innovative product is a testament to Leader's reputation for producing high-quality professional equipment.

Leader PHABRIX SxA Features

  • 3 in 1, Generator / Analyzer / Monitor
  • 3G-SDI, HD-SDI, SD-SDI, AES
  • High Quality 16:9 Picture Monitor
  • Superior Ease of Use
  • 32+ Video Test Signals come standard in the unit
  • Text and Logo ID
  • 16-channel Embedded Audio
  • Auto Genlock Bi/Tri/SDI Cross Lock
  • 16-channel Audio Metering
  • Waveform Monitor
  • Vectorscope
  • Rugged Reliability
  • Ethernet based Remote Operation
  • Battery and AC Power Supply

Product Documents

User Manual

Key Features

  • Advanced 3-in-1 technology: Generator, Analyzer, and Monitor
  • Supports 3G-SDI, HD-SDI, SD-SDI video, and AES audio testing and monitoring
  • Comprehensive range of both static and animated test patterns
  • Auto Bi-level, Tri-level, and SDI genlock with cross lock capability
  • Supports up to 16 channels of embedded audio
  • Built-in USB and Ethernet connectivity for remote operation

What's in the box:

  • Leader PHABRIX SxD 3 in 1
  • Carrying Case
  • AC Power Supply
  • Leader 2 Year Warranty (1 Year + 1 Year with Registration)
