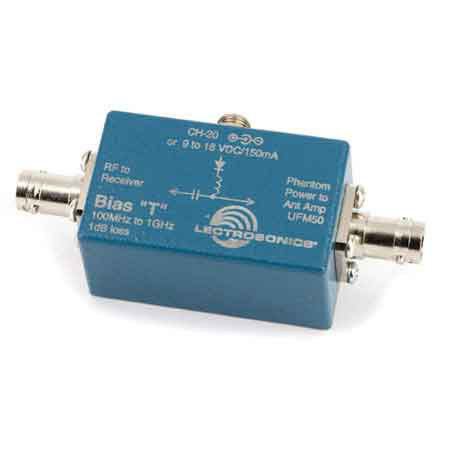

Lectrosonics Bias "T" Coaxial Power Inserter for UFM50 UHF Filter / Amplifier Module

Take your audio and video equipment to the next level with the Lectrosonics Bias "T" Coaxial Power Inserter, specifically designed for the UFM50 UHF Filter / Amplifier Module. This essential device is expertly engineered to insert DC power into a coaxial cable, thereby powering your Lectrosonics remote antenna amplifier or filter/amplifier.

Strategically positioned at the receiving end of the coaxial cable, the Bias "T" facilitates the seamless passage of DC power from an external source to the coaxial cable leading to the antenna. This power inserter features a feed inductor, which delivers DC to the BNC connector on the antenna side.

In addition, the Bias "T" is equipped with a blocking capacitor, designed to prevent DC from passing through to the receiver. The RF is directly connected from one BNC to the other, with only the blocking cap in series, ensuring a clean and uninterrupted signal.

The Bias "T" Coaxial Power Inserter also includes a locking power jack, providing a secure connection to an external power supply such as the Lectrosonics CH20. An internal blocking diode is incorporated to prevent damage to the Bias "T" in case of reverse voltage application.

For added safety, this device is fitted with a self-resetting polyfuse, protecting the unit from damage in the event of a short on the antenna side. As with other Lectrosonics products featuring a polyfuse, simply removing the power from the unit for a few seconds will reset the fuse.

In conclusion, the Lectrosonics Bias "T" Coaxial Power Inserter for UFM50 UHF Filter / Amplifier Module is a reliable and essential addition to your audio and video equipment setup, ensuring optimal performance and longevity.
