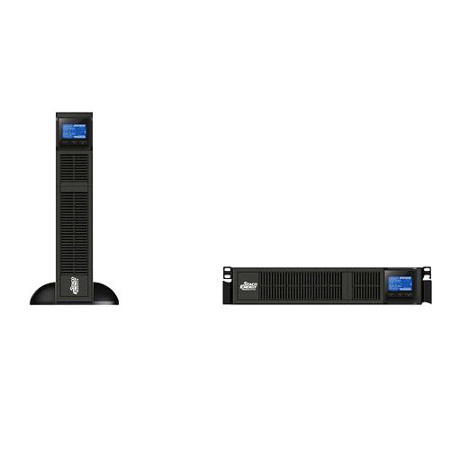

Link Electronics UniStar V Single Phase Uninterruptible Power Supply, 1.5kVA/1.35kW

SKU: LESCV15001 MFR: SCV-15001
Earn VIP Reward Points

Key Features

  • Safeguard studio equipment with this 1.5kVA/1.35kW Uninterruptible Power Supply (UPS).
  • Enjoy pure sine wave output, ensuring clean & reliable power for sensitive audio gear.
  • Get instant power backup with 0ms transfer time, preventing interruptions during performances.
  • Extend battery life with Automatic Battery Management (ABM) for long-term reliability.
  • Versatile design supports both rack and tower configurations to fit any studio setup.
  • Hot-swappable batteries mean continuous power; no downtime when replacing power supply.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics UniStar V Power Supply Specifications

  • Ratings

    120Vac

  • Load kVA / kW

    1.5kVA / 1.35kW

  • Input Cord

    5-15P

  • Output Connection

    (4) 5-15R

  • Voltage Range

    55Vac -150Vac, +/- 5%

  • Frequency Range

    40Hz - 70Hz

  • Frequency

    50/60 Hz Auto-Select, +/- 5Hz

  • Phase/Wire

    Line + Ground

  • Power Factor

    >0.99 at nominal voltage (100% Load)

  • Transfer Time

    0ms

  • AC Leakage Current

    <5mA

  • Surge Protection

    400 joules

  • Output: Capacity

    1.5kVA/1350W

  • Output: Voltage

    120 Vac

  • Output: Voltage Regulation

    +/- 1%

  • Output: Frequency (Sync Range)

    47 - 53Hz or 57 - 63Hz

  • Output: Frequency Range (Battery Mode)

    50Hz +/- 0.5% or 60Hz +/- 0.5%

  • Output: Crest Factor Ratio

    5:1

  • Output: Harmonic Distortion

    < 2% THD (Linear Loads), < 8% THD (Battery Mode)

  • Output: Transient Response

    < = 60ms/5%

  • Output: Waveform

    Pure Sine Wave

  • Output: Efficiency AC Mode

    1kVA 86%/88% peak

  • Output: Efficiency Bat. Mode

    1kVA 83%/86% peak

  • Output: DC Start

    Yes

  • Output: Cooling

    Load Dependent Variable Speed Fans

  • Output: Over temperature

    Normal Mode - Transfer to bypass;
    Battery Mode - UPS shuts down immediately

  • Output: Overload

    <105% continuous, >120% for 30 seconds, >150% for 10 seconds

  • Output: Full Load Heat

    1.5kVA

  • Output: Rejection BTU/hr

    539

  • Internal Battery Run Time

    2.7 (Full Load -Minutes)

  • Battery

    3 ea.12V/9AH

  • Type

    Maintenance Free Cell - VRLA Lead Acid

  • Charging Current

    120Vac - 1.0 Amps

  • Charging Voltage

    41.1Vdc

  • Hot - Swappable

    Yes

  • Recharge Time (Typical)

    4 hours to 90%

  • Extended Battery

    Yes - Hot Swappable

  • DC Linkage Current

    <30uA (+/-10uA) with no AC applied and unit Off

  • Battery Management

    Automatic Battery Management (ABM) saves battery life

  • Operating Temperature

    32 Degree F / 0 Degree C - 104 Degree F / 40 Degree C

  • Storage Temp

    -13 Degree F/-25 Degree C - 122 Degree F/40 Degree C (-LB Units -13 Degree F / -25 Degree C - 122 Degree F / 60 Degree C)
    (Battery Packs, "BAT" & Units with internal batteries require refresh charing every 3 month @ 104 Degree F (40 Degree C))

  • Altitude

    0 - 2,000m up to 40 Degree C

  • Noise Level

    <50dBA @ 1m

  • Relative Humidity

    0 to 90% non-condensing

  • Rack Dimensions (H x W x D)

    3.39 x 17.24 x 20.38" (86.2 x 438.0 x 517.5mm)

  • Tower Dimensions (H x W x D)

    17.24 x 3.39 x 20.38" (438.0 x 86.2 x 517.5mm)

  • Weight

    42 lbs (19 kg)

About Link Electronics UniStar V Power Supply

With the UniStar V Single Phase Uninterruptible Power Supply, you can ensure reliable, uninterrupted power for your essential electronic devices. This high-performance, 1.5kVA/1.35kW power supply is designed with advanced, field-proven Digital Signal Processor (DSP) technology, offering superior protection from electrical disturbances and ensuring the longevity of your connected equipment.

This innovative power supply unit boasts a convertible tower/rack design, providing maximum flexibility and seamless integration into a diverse range of environments. Whether you're operating servers, networks, telecommunications, industrial equipment, or managing manufacturing processes, the UniStar V is your ideal power protection solution.

The UniStar V is equipped with industry-leading features such as a hot-swappable battery and a powerful internal charger. It also includes an emergency shutdown function and programmable receptacles, enhancing its functionality and user convenience.

This durable power supply unit is designed to provide reliable protection against blackouts, voltage and frequency fluctuations, harmonics, electrical noise, and brownouts. It's an excellent choice for various market applications, including broadcasting, processing manufacturing (food/beverage, pharmaceutical, plastics, packaging), water/waste water treatment, hospitals/medical facilities, and education/research laboratories.

Choose the UniStar V Single Phase Uninterruptible Power Supply for a reliable, high-capacity power solution from Link Electronics, a reputable brand known for its high-quality products.

Link Electronics UniStar V Power Supply Features

  • Tower/Rack Mount Convertible Design
  • Compact and Lightweight
  • Advanced Digital Control Technology
  • Wide Input Voltage and Frequency Ranges
  • Near Unity Power Factor
  • Hot Swappable Battery, Built-in Charger
  • Optional Extended Run Time Capability
  • Optional Make-Before-Break Maintenance Bypass
  • DC-start function Programmable receptacles
  • Emergency shutdown control
  • Communication software
  • User-friendly Plug-and-Play design
  • Innovative battery management circuit
  • Internal maintenance-free sealed-type battery

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Safeguard studio equipment with this 1.5kVA/1.35kW Uninterruptible Power Supply (UPS).
  • Enjoy pure sine wave output, ensuring clean & reliable power for sensitive audio gear.
  • Get instant power backup with 0ms transfer time, preventing interruptions during performances.
  • Extend battery life with Automatic Battery Management (ABM) for long-term reliability.
  • Versatile design supports both rack and tower configurations to fit any studio setup.
  • Hot-swappable batteries mean continuous power; no downtime when replacing power supply.

What's in the box:

  • Power Supply
  • Link Electronics 1 Year Limited Warranty
