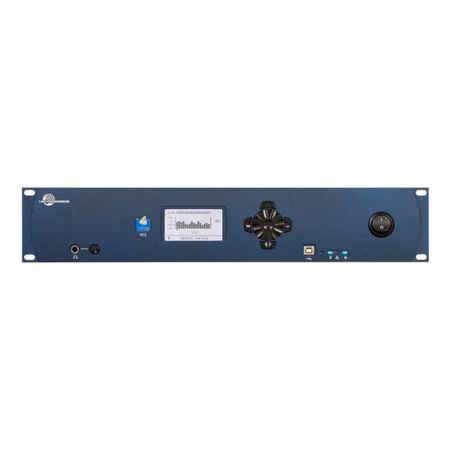

Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor
See all Lectrosonics items

Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor, 16 Inputs, 12 Outputs, 20Hz-21kHz Frequency Response, <50Ohms Output Impedance

SKU: LESPN1612
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency response of the Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor?

The Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor has a high-frequency response of 20Hz-21kHz, ensuring clear and accurate audio processing.

What is the output impedance of the Lectrosonics SPN1612?

The Lectrosonics SPN1612 has a high output impedance of less than 50Ohms, allowing it to drive a wide range of loads without signal loss or distortion.

What is the Proportional Gain Algorithm in the Lectrosonics SPN1612?

The Proportional Gain Algorithm in the Lectrosonics SPN1612 provides seamless auto-mixing and integrates easily with various audio systems for smooth and uninterrupted audio processing.

Can the Lectrosonics SPN1612 be controlled through a network?

Yes, the Lectrosonics SPN1612 offers TCP/IP addressability, allowing for easy control through Ethernet and seamless integration into your network.

What are the ideal applications for the Lectrosonics SPN1612?

The Lectrosonics SPN1612 is ideal for professional audio applications including live sound environments, recording studios, and post-production facilities due to its advanced features and superior performance.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lectrosonics SPN1612 Specifications

  • Inputs

    16 Mic/Line

  • Max. input level

    20 dBu

  • Gain

    0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically selected by selecting the input gain)

  • Input impedance

    8 KOhms differential mode, 2 KOhms common mode

  • Phantom voltage

    48 V

  • Input dynamic range

    102 dB

  • EIN

    -127 dBu (20Hz - 20kHz, unweighted)

  • THD

    + noise: 0.01%

  • Outputs

    1-8 line level (0 dBu), 9-12 mic/line level(0, -20, -40 dBu)

  • Nominal level

    0 dBu, channels 1-8
    0 dBu, -20 dBu, -40 dBu, channels 9-12

  • Headroom

    20 dB

  • Output impedance

    < 50 Ohms , all outputs, at all attenuator settings

  • Output dynamic range

    105 dB

  • THD + noise

    0.01%

  • Frequency response

    20 Hz - 21 kHz +/- 1 dB

  • Latency

    Single-board: 64 audio samples = 1.333 ms
    System: 64 + 6 (total number or boards - 1) audio samples = 1.333 + 0.125 (total number or boards - 1) ms

  • Monitor output (1/4" headphone jack)

    Signal: any of the 48 final mixes
    Output power: 50 mW (<50 Ohms impedance recommended)

  • Noise reduction filters

    Adjustable 6 to 35 dB on every input

  • Tone control stages

    4 per input channel

  • Parametric EQ stages

    8 per output channel

  • ADFE

    8 per input channel Configurable as Static or Dynamic

  • Low Pass

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • High Pass

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • Low Shelving

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Additional parameters:
    frequency [Hz]
    boost/cut [dB]

  • High Shelving

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Additional parameters:
    frequency [Hz]
    boost/cut [dB]

  • Peaking EQ (parametric)

    Parameters:
    frequency [Hz]
    bandwidth [octave]
    boost/cut [dB]

  • Internal Signal Generator

    Swept sine:
    Modes: single sweep, continuous sweep
    Waveforms: sawtooth (up or down), triangle
    Sweep rate: linear, logarithmic
    Parameters: start freq, stop freq, level [dBu], sweep time [sec]
    White noise: Parameter: level [dBu]
    Pink noise: Parameter: level [dBu]
    Tone (sine wave): Parameters: level [dBu], frequency

  • Power Requirements

    100-240 VAC, 50/60 Hz

  • Power Consumption

    40 Watts

  • Rack Height

    2 Ru

  • Dimensions

    3.5 x 19 x 7.7" / 88.9 x 482.6 x 195.58mm

  • Weight

    5.73lbs / 2.6kg

About Lectrosonics SPN1612

Take your audio processing to the next level with the advanced Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor. This high-tech device is equipped with 16 inputs and 12 outputs, offering superior scalability and flexibility for a wide range of professional audio applications.

The state-of-the-art SPN1612 is designed to handle a broad frequency response of 20Hz-21kHz, ensuring clear and accurate processing of a wide range of audio signals. This makes it an ideal choice for live sound environments, recording studios, and post-production facilities seeking sophisticated audio processing solutions.

One of the standout features of this innovative audio processor is its Proportional Gain Algorithm. This feature provides seamless auto-mixing, integrating effortlessly with echo cancellation systems, analog mixing consoles, or any other type of audio system. This ensures smooth and uninterrupted audio processing, enhancing the overall sound quality.

Moreover, the SPN1612 boasts a high output impedance of less than 50Ohms. This allows it to drive a wide range of loads without any signal loss or distortion, making it a versatile choice for various applications and environments.

In addition, the Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor offers TCP/IP addressability, allowing for easy control through Ethernet. This means the SPN1612 can become an integral part of your network, providing advanced audio processing capabilities right at your fingertips.

In summary, the Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor is a sophisticated, high-tech solution for all your professional audio processing needs. Its advanced features and superior performance make it a standout choice in the market.

Lectrosonics SPN1612 Features

  • Ultra low noise input preamps
  • Full crosspoint matrix with 48 outputs
  • Unlimited input expansion
  • TCP/IP Ethernet addressable
  • Seamless auto-mixing with PGA at the matrix crosspoints
  • Simultaneous multi-point 3rd party and native control
  • Ultra-low latency
  • Automatic Master/Slave detection
  • Single CAT6 interconnection carries data, audio and control signals

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Advanced Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor with 16 inputs and 12 outputs
  • High-frequency response of 20Hz-21kHz for clear and accurate audio processing
  • Proportional Gain Algorithm for seamless auto-mixing & easy integration with various audio systems
  • TCP/IP addressability for easy control through Ethernet and seamless network integration

What's in the box:

  • Lectrosonics SPN1612 2 RU Digital Matrix Audio Processor
  • Power Cord
  • 2x Cord Plug
  • 20x 5-Position Plug
  • USB Cable
  • 2x Patch Cable
  • Adjustment Tool
  • Software CD
  • Manual
  • Lectrosonics 1 Year Limited Warranty
