Lectrosonics SPN812 Aspen Digital Matrix Audio Processor
See all Lectrosonics items

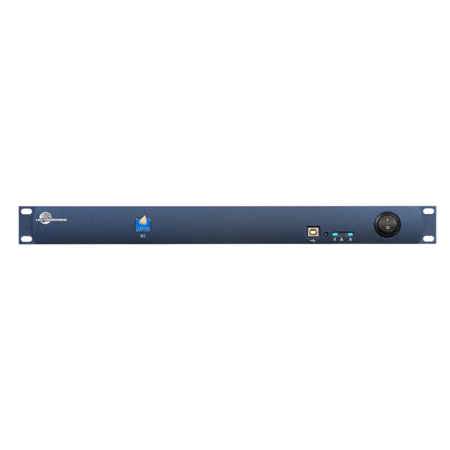

Lectrosonics SPN812 Aspen Digital Matrix Audio Processor, 8 Inputs, 12 Outputs, 1RU

SKU: LESPN812

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lectrosonics SPN812 Specifications

  • Max. input level

    20 dBu

  • Gain

    "0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically selected by selecting the input gain)

  • Input impedance

    8 k Ohms differential mode, 2 k Ohms common mode

  • Phantom voltage

    48 V

  • Dynamic range

    102 dB

  • EIN

    -127 dBu (20Hz - 20kHz, unweighted)

  • THD + noise

    0.01%

  • Audio outputs: Nominal level

    0 dBu, channels 1-8
    0 dBu, -20 dBu, -40 dBu, channels 9-12

  • Audio outputs: Headroom

    20 dB

  • Audio outputs: Output impedance

    < 50 Ohms , all outputs, at all attenuator settings

  • Audio outputs: Dynamic range

    105 dB

  • Audio outputs: THD + noise

    0.01%

  • Latency: Single-board

    64 audio samples = 1.333 ms

  • Latency: System

    64 + 6 (total number or boards - 1) audio samples = 1.333 + 0.125 (total number or boards - 1) ms

  • Monitor output: Signal

    Any of the 48 final mixes

  • Monitor output: Output power

    50 mW (

  • Noise reduction filters

    Adjustable 6 to 35 dB on every input

  • Tone control stages

    4 per input channel

  • Parametric EQ stages

    8 per output channel

  • ADFE

    8 per input channel
    Configurable as Static or Dynamic

  • Low Pass Filter

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • High Pass

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • Low Shelving

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)

    Additional parameters:
    frequency [Hz]
    boost/cut [dB]

  • High Shelving

    "Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Additional parameters:

    frequency [Hz]
    boost/cut [dB]

  • Peaking EQ (parametric)

    Parameters:
    frequency [Hz]
    bandwidth [octave]
    boost/cut [dB]

  • Frequency response

    20 Hz - 21 kHz +/- 1 dB

  • Power Consumption

    20 Watt

  • Power Requirements

    100-240 VAC, 50/60 Hz

  • Dimensions

    3.50 x 19.00 x 7.70 "

  • Weight

    5.73 lbs

About Lectrosonics SPN812

From small installations all the way up to sophisticated, multi-layered systems, these Lectrosonics SPN812 ASPEN mixers are the perfect compliment to your audio integration. Unlimited input expansion and 48 mix buses give you phenomenal scalability. The Proportional Gain Algorithm provides seamless auto-mixing and integrates easily with echo cancellation, analog mixing consoles or any other type of audio system. And with TCP/IP addressability for control through Ethernet, ASPEN is now part of your network. Any way you look at it, the ASPEN line from Lectrosonics is your new choice in professional DSP audio processing systems.

Lectrosonics SPN812 Features

  • Ultra low noise input preamps
  • Full crosspoint matrix with 48 outputs
  • Unlimited input expansion
  • TCP/IP Ethernet addressable
  • Seamless auto-mixing with PGA at the matrix crosspoints
  • Simultaneous multi-point 3rd party and native control
  • Ultra-low latency
  • Automatic Master/Slave detection
  • Single CAT6 interconnection carries data, audio and control signals

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra low noise input preamps
  • Full crosspoint matrix with 48 outputs
  • Unlimited input expansion
  • TCP/IP Ethernet addressable
  • Seamless auto-mixing
  • Simultaneous multi-point 3rd party and native control

What's in the box:

  • Lectrosonics SPN812 Aspen Digital Matrix Audio Processor
  • Power Cord (Part #21499)
  • Plug (Part #21558)
  • 8x 5-position Plug (Part #21580)
  • USB Cable (Part #21713)
  • Patch Cable (Part #21802)
  • Adjustment Tool (Part #35679)
  • Software CD (Part #ASPENNETWIN)
  • Manual
  • Lectrosonics 1 Year Parts and Labor Warranty
