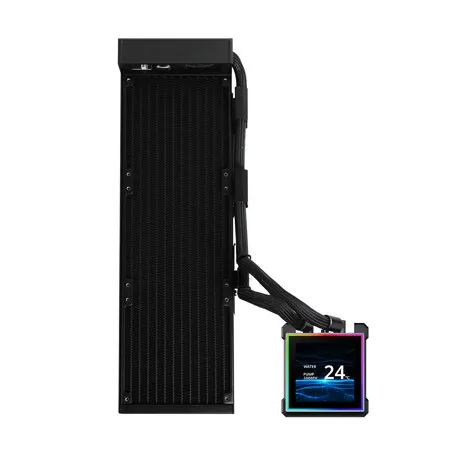

Lian-Li HydroShift II LCD-S 360 All-In-One ARGB CPU Liquid Cooler Black FanLess

HydroShift II LCD-S - Uniquely Cool, Now Reimagined
• Improved Performance
• 3.4" IPS 60 Hz LCD Screen
• Three Control Modes
• Improved Compatibility
• Three Models
• Side-mounted tubing layout
• Hidden cable routing

UNI FAN CL Wireless
This model is equipped with UNI FAN CL Wireless for high-efficiency airflow. Integrated RGB illumination shines through, and both the light strips and fan blades support independent effect control.

Fanless Edition
The HydroShift II LCD-S also comes in a fanless version, giving users the freedom to customize and install their own fans according to personal preference-perfect for those who love full DIY flexibility and visual creativity.

Note: Note: The fanless edition requires compatible fans for proper operation

Dynamic Interaction, Complete Control
Enjoy a vivid, high-definition visual experience with a 480 x 480 resolution display boasting 500 nits of peak brightness. Even under bright lighting, every animation and metric remains crystal clear. The 60 Hz refresh rate ensures smooth, tear-free visuals for a fluid real-time monitoring experience.

Magnetic Hot-Swap Display
Featuring magnetically aligned pogo-pin connectors, the screen securely snaps into place without powering down, allowing for fast installation or removal. Precise magnetic alignment ensures a safe, reliable connection, letting users conveniently attach the display after system assembly to avoid accidental damage.

Pump Performance Upgraded
Experience the next level of cooling with our enhanced pump, now reaching speeds of up to 3200 RPM. the enhanced pump delivers more power with less noise. A hidden frame and skirted cover ensure a clean, streamlined look.

The HydroShift II LCD-C performs similarly to the first-generation HydroShift, while the HydroShift II Square shows a clear improvement in thermal efficiency. With a more compact design and finer radiator fins, HydroShift II delivers lower noise and better cooling performance, achieving superior compatibility without compromising power.

Minimalist Aesthetics, Maximum Freedom
Innovative side-mounted tubing runs cleanly along the radiator edge, reducing visual clutter. Cables are discreetly integrated within the sleeved tubing, delivering a seamless, cable-free look for an ultra-clean, minimalist build. USB power and data cables are integrated directly into the tubing, removing visible wires from the front and delivering a cleaner, more refined interior. Pre-installed triple tube clips keep the tubing secured along the radiator edge, ensuring clean routing and a tidier case layout.

Note: Note: The screws are pre-tightened before shipping, If adjustment of the support bracket is required, slightly loosen the positioning screws before making any adjustments

Constant Innovation, Core Unchanged
The compact radiator has been refined to 400 x 122 x 24 mm, reducing thickness, length, and width while maintaining 90% compatibility with mainstream cases. Its smaller footprint eases installation across various builds, delivering efficient heat dissipation in a sleek, space-saving design.

Redesigned Mounting Bracket
The CPU liquid cooler features a redesigned mounting system for easier, faster, and more secure installation, offering better stability and user-friendly setup.

Broad Compatibility, Seamless Support
The HydroShift II LCD-S AIO offers easy installation and broad CPU socket compatibility, featuring an upgraded AM4/AM5 bracket that ensures even pressure and improved thermal performance.

Intuitive Control, Complete Customization
The L-Connect 3 software offers fast theme switching and layout customization with integrated hardware monitoring. Easily capture screenshots or record videos using built-in editing tools, and enhance your display with 3D effects, sensor-based visuals, overlays, and watermarks. All designed for a personalized, immersive experience.

Three Modes, Multiple Experiences

Offline Mode (No USB Connection)
Operates with preset themes to monitor coolant temperature and pump speed. No cables, no system resources required.

Note: Lighting theme and effects cannot be changed while in offline mode

Wireless Mode (L-Wireless Controller Connection, no USB connection)
Connect through the L-Wireless 2.4G Controller to customize screen themes, parameters, and lighting effects via L-Connect. Wireless Mode also allows for lighting synchronization with other wireless products, including CL Wireless and TL Wireless, while keeping your motherboard's USB 9P ports free for other devices. Enjoy a cleaner setup with reduced cable clutter and minimal system load.

Advanced Wireless Mode
Combines Streaming and Wireless modes to deliver the best performance and flexibility. With both the L-Wireless Controller and a USB connection to the motherboard, lighting, pump, and fan controls remain wireless, while the USB link enables full LCD customization.

Streaming Mode (USB Connection)
Connect via USB to gain full control through L-Connect 3. Easily switch screen themes, upload custom images, or design personalized layouts, turning the display into a dynamic secondary screen that enhances both functionality and visual appeal.

• Secondary Display Support
• Upload Images or Videos
• Customizable Widgets

Users can unplug the USB 2.0 cable when switching to wireless or cable-free mode, depending on their setup preferences.

PWM Power Cable
If the motherboard cannot read the pump's RPM, it's recommended to connect the 4-pin PWM header to a SATA power adapter for a more stable power supply. The 2-pin connector functions independently and does not require an additional power connection.

USB 2.0 Cable
Used for Streaming Mode and Advanced Wireless Mode to transfer media files such as JPG and MP4.

Note: Standard Wireless Mode only supports JPG uploads

Precision Fit, Effortless Installation
The removable sliding tube mount enables precise tubing alignment with 140 mm fan brackets. This optimized layout enhances cable management and thermal organization, delivering a clean, minimalist aesthetic.

Flexible Layout, Unlimited Compatibility
For hidden-tube installations, the top mounting area of the case should measure at least 280 x 400 mm. You can easily adjust or remove the tube bracket (recommended clearance > 55 mm) to fit a wide range of case configurations across different usage scenarios.

Mounting Bracket Cover
Designed to conceal the bracket and mounting screws, this cover refines the cooler's appearance-completing its clean, minimalist aesthetic.

Cable Organizer
Used to neatly align and secure extended tubing, maintaining a clean and balanced exterior appearance.

Industrial-Grade Corrugated Tubing
Designed with a unique corrugated structure, the tubing offers superior flexibility and kink resistance for hassle-free routing-even in tight layouts. Its high-tensile durability ensures long-term performance and a consistent flow rate between the radiator and pump.
