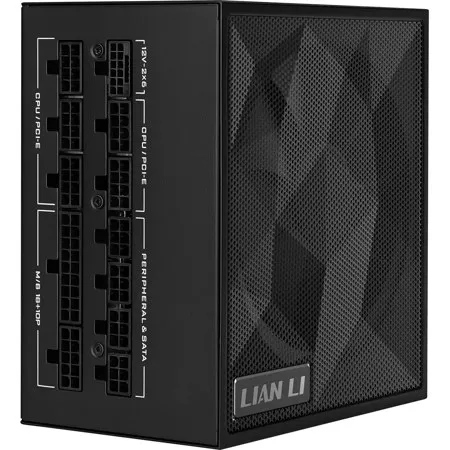

Lian-Li SX 80 Plus Platinum Certified Fully Modular ATX 3.1 Power Supply Unit Black 1000W

SX Platinum PSU Series - Platinum Performance, Built for Stability
• 80 PLUS Platinum
• ATX 3.1 ready
• PCIe 5.1
• 100% Japanese 105 Degree C capacitors
• 12V-2x6 High-current copper alloy terminals
• Braided-Texture Cables With Cable Combs

Platinum Certified
Experience next-level performance with the SX Platinum Series, featuring 80 PLUS Platinum and PPLP Platinum certifications and full compliance with ATX 3.1 and PCIe 5.1 standards. It delivers stable +12V power, whisper-quiet fanless cooling up to 40% load, and exceptional durability.

80 Plus Platinum Efficiency
The SX Platinum Series delivers up to 94% conversion efficiency at 50% load, achieving 80 PLUS Platinum-level performance and reducing AC losses and heat, allowing your system to run cooler, quieter, and more cost-effective over time.

Smart Stop/Start for Quiet Operation
When the PSU load is at or below 40%, the fan enters its smart stop/start mode to keep the system quiet under low loads. This feature can also be enabled or disabled using the switch on the rear of the unit.

Fully Modular
A fully modular design gives you the freedom to install only the cables your setup calls for, keeping your system neat, optimized, and ready to showcase.

Braided Cables for a Finished Look
The SX Platinum Series includes braided cables and cable combs to enhance both appearance and durability, making cable management easier and giving your build a clean, professional finish.

Note: Main cables use braided sleeving. The 24-pin, CPU, and 12V-2x6 GPU cables include cable combs. Other cables, such as SATA and the 12V-2x6 to dual PCIe (6+2) Pin cable, use flat ribbon sleeving

ATX 3.1 and PCIe 5.1 Standards
Supporting power excursions up to 200% of its rated output, it delivers stable power for high-performance systems, ensuring smooth and reliable gameplay.

Stable Dual-Color PCIe 5.1 Connector
Equipped with a 12V-2x6 copper-alloy terminal for safe and efficient power delivery, enhancing system stability and performance.

Ample PCIe 6+2 Power Support
Includes three PCIe 6+2 cables, plus two additional 12V-2x6 to dual PCIe 6+2 Pin cables on the 1000W and 1200W models, providing reliable support for multiple devices.

TRIPLE PCIe 6+2 pin GPU SUPPORT
Provides up to five PCIe 6+2 connectors (four on the 850W model), meeting the power needs of high-end AMD graphics cards. This flexible design makes it an ideal choice for users planning future performance upgrades.

100% Japanese Rubycon 105 Degree C Capacitors
All electrolytic and solid capacitors are sourced from leading Japanese brands, Rubycon, Nippon Chemi-Con, or Nichicon, and are 105 Degree C-rated components. These high-grade capacitors ensure stable voltage regulation, lower ripple, and long-term reliability even under high-temperature operation.

Standard Size for Better Case Compatibility
The SX Platinum Series uses a highly compatible standard ATX form factor with a length of only 140 mm, fitting a wide range of cases and leaving more interior space during installation. Ideal for users looking to install an ATX PSU in an mATX case, the 140 mm standard length offers better compatibility, frees up cable-routing space, and enhances the overall building experience.

Vented Front Panel for Better Airflow
The patterned open-mesh front panel boosts both the PSU's appearance and cooling performance.

Comprehensive Protection
Equipped with OCP, OVP, OTP, OPP, SCP, UVP, NLP, and SIP protection to guard against overcurrent, overvoltage, overheating, overload, and short-circuit conditions for reliable operation.
