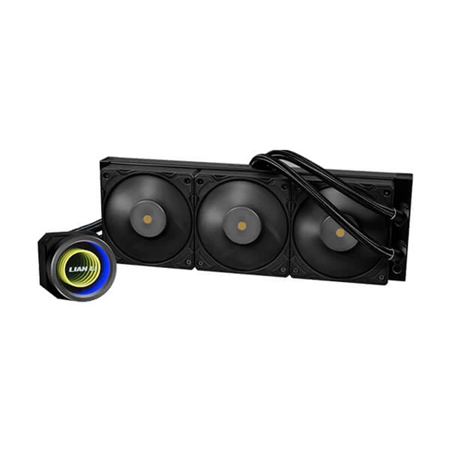

Lian-Li Galahad II Trinity Performance 360mm All-In-One CPU Liquid Cooler

Redefine Your Style Maximize Your Performance
• Extreme Cooling
• 3 Types of Pump Cover
• 45 Degree Rotary Fittings
• Double Stack Fin Radiator
• Pre-Installed Design
• LCP Fan
• L-Connect 3 Control

Available in Two Colors
The Galahad II Trinity series comes with pre-installed fans for quick installation to the case.

Boost Performance To The Next Level
Galahad II Trinity Performance pump is larger than the regular one so that it accommodates upgraded components to efficiently cool the CPU.

Compare to the Galahad II Trinity, the performance version has improved:
• Copper Plate Fin Spacing: 11% larger To prevent substance buildup over time
• Pump Impeller: 15% bigger To deliver water efficiently
• Motor Speed: 31% faster To gain stronger water flow
• Motor speed up to 4200RPM
• 36mm diameter large impeller for strong water flow
• Straightened coolant pathway, reducing turbulence
• Revised the fin thickness / height / distance for better diffusion of the coolant over the entire surface area of the copper plate

Choose Preferable Look
The Galahad II Trinity series' pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.

Duo- Infinity
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center. (90 Degree Rotatable)

Dazzle
An entirely shining pump cap that brings the most vivid lighting to your build.

Sink-Hole
The combination of the diffuser and infinity mirror creates the sinkhole effect.

High Density Aluminum Radiator
The 32mm thick radiators feature a double-wave radiator fin design of 19 FPI which provides more surface area to dissipate heat with a high performance fan.

Daisy-Chainable LCP Fan
The double-stack radiator fins provide better heat dissipation due to the enlarged surface area. However, the increased density also requires a more performance-oriented fan. These high-performance LCP fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. Just like the UNIFAN P28, this 120mm fan is 28mm in thickness and features a copper shield bearing for high RPM stability and quiet operations.

Two modes of fan speed can be set with the included fan speed controller to meet different usage needs:
• Maximum Static Pressure: H - 6.99 mmH2O, L - 4.08 mmH2O
• Maximum Airflow: H - 108.29 CFM, L - 81.54 CFM

H - Performance oriented with maximum speed at 3000 RPM
L - Noise optimized with maximum fan speed at 2300 RPM

Mount In Any Way
This innovative 45 Degree tubing connector gives the tubes the freedom of 360 Degree rotation, allowing the Galahad ll Trinity series to be installed in many different ways.

The Galahad ll Trinity series can be flexibly installed in ways such as:
• Top Mount
• Side Mount
• Front Mount

Note: Do not apply heavy pressure or strike on the connector.

To make things even better, it also comes with a leather strap to help with organizing the tubes.

Installation Made Easy, For You
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.

It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.

Seamless Software
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.

Simple Connection
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.

ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3

5V ARGB
Required for motherboard sync (No need to use if only using L-Connect)

• SATA Cable: For power
• USB Cable: Plug into a motherboard 9-pin USB header for L-Connect 3 support
• 4-PIN PWM Cable: Required for RPM control
