LG 55EW5TF-A Specifications

Panel
  • Screen Size

    55" (155.1cm)

  • Panel Technology

    Transparent OLED Touchscreen

  • Aspect Ratio

    16:9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    120Hz

  • Brightness (Typ.)

    400/150 nits (APL 25%/100%, Without Glass)

  • Contrast Ratio

    150,000 : 1

  • Color Gamut

    120% BT709

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    10 bit (R), 1.07 Billion Colors

  • Response Time

    1ms (G to G)

  • Lifetime (Typ.)

    30,000 Hrs

  • Operation Hours (Hours / Day)

    18/7 (Moving Content Only)

  • Portrait / Landscape

    Yes/Yes

  • Transparency (Typ.)

    33% (Set)

Connectivity

Jump to...
  • Input

    HDMI, DP, USB 2.0 Type A, USB 2.0 Type A (Touch Control Board only)

  • Output

    DP, Audio, USB 2.0 Type B (Touch USB)

  • External Control

    RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)

Key Features

Jump to...
  • Key Features

    Internal Memory (16GB), Temperature Sensor, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Screen Rotation, Setting Data Cloning, SNMP, ISM Method (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, Crestron Connected, DPM, PM Mode, Wake on LAN, HDMI-CEC, SI Server Setting
    Network based control.

Environment Conditions

Jump to...
  • Operation Temperature Range

    32 Degree F to 104 Degree F/0 Degree C to 40 Degree C

  • Operation Humidity Range

    10% to 80%

  • Power Supply

    100-240 Vac, 50/60 Hz

  • Power Type

    Built-In Power

  • Power Consumption (Typ. / Max.)

    250W/280W

Certification

Jump to...
  • Safety

    CB, NRTL

  • EMC

    FCC Class "A"/CE/KC

  • ErP/Energy Star

    Yes (EU Only)/No

Software Compatibility

Jump to...
  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

  • Signage 365 Care

    Yes

  • Touch Type

    P-Cap

  • Operating System Support

    Windows

  • Multi touch point

    Max 10 Points

Mechanical

Jump to...
  • Bezel Color

    Matt Silver

  • Bezel Width

    7.9/7.9/7.9/144.5 mm (T/R/L/B)

  • Protection Glass

    Depth 3.0 mm , Tempered/Chemical Strengthening, Anti-Reflective, Shatter-Proof

Physical

Jump to...
  • Dimensions (W x H x D)

    Head: 8.2 x 32.8 x 0.3" (1225.5 x 832.9 x 7.0mm)
    Signage Box: 30.8 x 9.4 x 1.4" (782.8 x 238.4 x 34.7mm)

  • Weight

    Head: 32.2 lbs (14.6kg)
    Signage Box: 7.5 lbs (3.4kg)

  • UPC Code

    719192639409

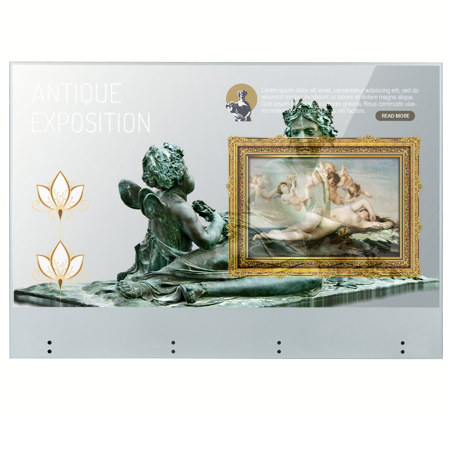

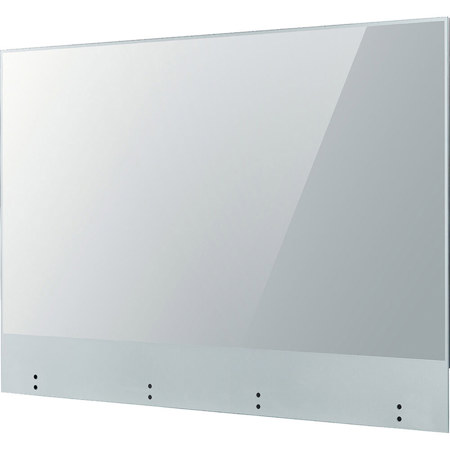

About LG 55EW5TF-A

A New Level of See-through View
LG Transparent OLED Touch Screen Digital Signage lets viewers see spaces that previously would be hidden away behind a display, to harmonize with its surroundings. It can respond according to viewers' touch, which has great potential for various applications where customer interactions are required.

High Transparency
LG OLED technology enables the Transparent OLED Touch Screen Display to have a slimmer structure without need for a backlight unit or liquid crystal layer, achieving a high transparency of 33% even with Projected Capacitive (PCAP) touch film, much higher than conventional LCD transparent displays.

Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings virtually seamless and natural.

Intuitive PCAP Touch Screen
By adding PCAP touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are required. PCAP touch type is more accurate and faster in touch response than the IR type, so users can fully enjoy the fascinating content using their fingertips with virtually no lag.

Protective Tempered Glass
Touching a conventional display directly can cause damage or scratches. But the tempered, anti-shatter front glass on this display protects against such external impacts and is designed to minimize customer injuries.

Spatial Harmony

Expandable Design
LG Transparent OLED Touch Screen Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation, complementing the venue in which it is installed.

LG 55EW5TF-A Features

  • Brightness (Typ.): 400 nits (APL 25%, without Glass)
  • Transparency (Typ.): 33% (Set)
  • Bezel: 7.9mm (T/B/L), 144.5mm (B)
  • Interface: HDMI / DP / USB 2.0 (2) / Touch USB / RS232C / RJ45 / IR / Audio PCAP Touch, Tempered Front Glass (3T)
  • Protective Tempered Glass

Key Features

  • Brightness (Typ.): 400 nits (APL 25%, without Glass)
  • Transparency (Typ.): 33% (Set)
  • Bezel: 7.9mm (T/B/L), 144.5mm (B)
  • Protective Tempered Glass

What's in the box:

  • LG 55EW5TF-A 55" Full HD Transparent OLED PCAP Touch Screen Digital Signage Commercial Display
  • Remote Controller
  • Power Cord
  • IR Receiver
  • Phone to RS232C Gender
  • FFC Cables
  • HDMI Cable (3m)
  • Micro to A Type USB Cable (1.8m)
  • A to B Type USB Cable
  • Tapes
  • Screws
  • Shield Cover Assembly
  • Rubber Dampers
  • Touch Cable Holders
  • Regulation Book
  • Quick Start Guide
  • LG 3 Year Limited Warranty
