LG UH5F-H Specifications

Panel
  • Screen Size

    55" (155.1cm)

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    500

  • Contrast Ratio

    1100:1

  • Dynamic CR

    1000,000 : 1
    The luminosity ratio of Full Black / Full White color on video input condition.

  • Color gamut

    BT709 95%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    1.07 Billion Colors (10 bit)

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

Connectivity

Jump to...
  • Input

    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A

  • Output

    DP, Audio

  • External Control

    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

Special Feature

Jump to...
  • Tilt (Facedown)

    Yes (Max. 30 Degree )
    In conditions within 30 Degree C temperature, 50% humidity

  • IP Rating

    IP5X

Environment Conditions

Jump to...
  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operation Humidity

    10% to 80%

  • Power Supply

    AC 100-240V-, 50/60Hz

  • Power Type

    Built-In Power

Power Consumption

Jump to...
  • Typ. / Max.

    105W / 145W

  • BTU (British Thermal Unit)

    358 BTU/Hr (Typ.)
    495 BTU/Hr (Max.)

  • Speaker

    Yes

Certification

Jump to...
  • Safety

    CB, NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP

    Yes

OPS Compatibility

Jump to...
  • OPS Type Compatible

    Yes

  • OPS Power Built In

    No

Software Compatibility

Jump to...
  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Signage365Care

    Yes (The availability can differ by region.)

General

Jump to...
  • Bezel Color

    Black

  • Bezel Width

    9.9mm(T/R/L), 14.4mm(B)

  • Handle

    No

  • VESA Standard Mount Interface

    300 x 300 mm

  • Dimensions (W x H x D)

    With Stand: 48.5 x 30.3 x 11.4" (1234.4 770.7 290mm)
    Without Stand: 48.5 x 28.3 x 1.5" (1234.4mm x 720.9mm x 39.9mm)

  • Weight

    Head: 41.8 lbs (19kg)

  • UPC Code

    719192639324

About LG UH5F-H

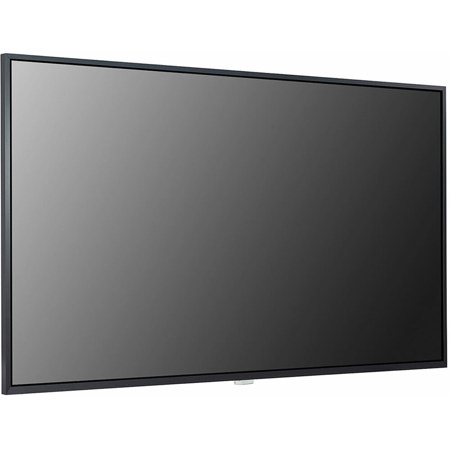

Be captivated by the impressive UH5F-H 55" Class 4K UHD Digital Signage Commercial Smart IPS LED Display, a high-tech solution for your commercial digital signage needs. This stunning display offers superb picture quality, thanks to its 2160 UHD resolution that delivers vivid, realistic colors and intricate details. The ultra-high-definition resolution is four times higher than FHD, ensuring that your content is displayed with unparalleled clarity.

Designed with a non-glare coating, this modern LED display eliminates unnecessary reflections, even under brightly lit conditions. The increased level of haze enhances visibility and text readability, making it ideal for displaying advertisements, promotions, news, and other content in commercial settings such as retail stores, restaurants, hotels, and offices.

The sleek and practical design of this LG display features a narrow bezel and slim depth, saving space and facilitating easy installation. The reduced bezel size and thickness not only provide an immersive viewing experience but also contribute to a sophisticated aesthetic that enhances the decor of any space.

This series also comes with a detachable, transparent logo that blends seamlessly with its surroundings, offering flexibility during installation. The built-in speakers enrich your content with sound effects, eliminating the need for external speakers.

The UH5F-H series boasts an IP5x certified design, ensuring complete protection from dust and preventing performance degradation. It supports installation with a 30-degree tilt, providing comfortable viewing even when installed at high places.

The smart features of this display include auto screen rotation, which automatically detects its orientation during the initial installation step. A built-in horizontal sensor aids in precise installation by displaying the device's tilt.

Powered by a high-performance built-in Quad Core SoC, this display can execute multiple tasks simultaneously and provide smooth content playback without the need for a media player. The LG webOS platform enhances user convenience with an intuitive GUI and simple app development tools.

The UH5F-H series is compatible with various external sensors such as GPIO, NFC/RFID, and temperature sensors via USB plug-in, reducing the overall maintenance cost. It's also compatible with professional AV control systems like Crestron Connected and video conference systems like Cisco System, making it a versatile solution for your business needs.

LG UH5F-H Features

  • Brightness(Typ.) : 500 cd/sq. m
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30 Degree Tilting Installation

Key Features

  • 55" Class 4K UHD digital signage commercial smart IPS LED display with 2160 UHD resolution
  • Non-glare coating and increased haze level for enhanced visibility and text readability
  • Sleek design with narrow bezel, slim depth, and detachable transparent logo for a modern aesthetic
  • Built-in speakers and IP5x dust-proof certification for reliable performance
  • Auto screen rotation and horizontal sensor for easy and precise installation

What's in the box:

  • LG UH5F-H 55" Class 4K UHD Digital Signage Commercial Smart IPS LED Display
  • Remote Controller
  • Power Cord
  • HDMI Cable
  • Phone to RS232C Gender
  • QSG
  • Regulation Book
  • LG 3 Year Limited Warranty
