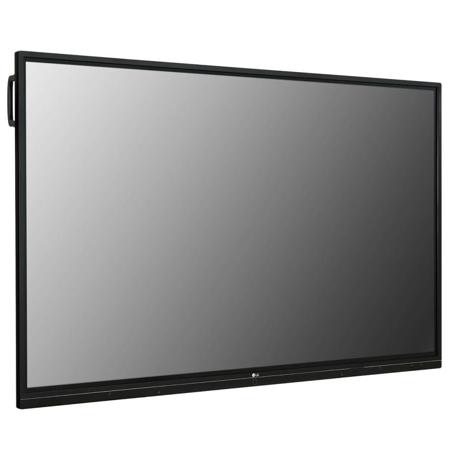

LG TR3BF Series 86" 16:9 UHD IR Multi-Touch Point IPS Digital Display, Built-In-Speakers, 3840x2160, Black

SKU: LOC86TR3BFB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

LG TR3BF Specifications

  • Screen Size

    86" (218.4cm)

  • Panel Technology

    IPS

  • Back Light Type

    RGB, Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Brightness

    330 (Typ., cd/sq. m, w/ Protection Glass)

  • Contrast Ratio

    1100:1

  • Viewing Angle (H x V)

    178 x 178

  • Panel Response Time

    8ms (G to G)

  • Life Time (Typ.)

    30000 Hours (Min.)

  • Operation Hours

    16 Hour

  • Orientation

    Landscape

  • (Input) Video / Audio

    HDMI (3), RGB / Audio In

  • (Input) External Control

    RS232C In, RJ45

  • (Input) USB

    USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)

  • (Output) Video / Audio

    HDMI (1), Optical Output / Audio Out

  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operation Humidity

    10% to 80%

  • Power Supply

    100-240 V-, 50/60 Hz

  • Power Type

    Built-In Power

  • Power Consumption (Typ. / Max.)

    400W / 450W

  • Built-in-Speaker

    2 x 24 W

  • Safety

    UL / cUL / CB

  • EMC

    FCC Class "A" / CE

  • ErP / Energy Star

    Yes / No

  • OPS Type Compatible

    Yes

  • Embedded Writing Software

    Yes

  • Touch type

    IR

  • Available object size for touch

    Diameter: 3mm

  • Touch Response Time

    60ms (Android) / 100ms (Windows)

  • Accuracy

    1.5mm

  • Interface

    USB 2.0

  • Protection Glass Thickness

    4T (Anti-Glare)

  • Protection Glass Transmission

    87%

  • Operating System Support

    Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

  • Multi touch point

    Max 20 Point

  • Bezel Color

    Black

  • Bezel Width(Off Bezel)

    Top/Right/Left: 0.69" (17.7mm)
    Bottom: 1.79" (45.7mm)

  • Handle

    Yes

  • VESA Standard Mount Interface

    800 x 600

  • Dimension (W x H x D)

    77.04 x 45.66 x 3.38" (1957 x 1160 x 86mm)

  • Weight

    147.7 lbs (67kg)

About LG TR3BF

Interactive Display That Creates Collaboration
LG's cutting-edge touch technology in the TR3BF-B Series displays support dual pen & multi-touch functions. This provides accurate drawing and authentic touch quality. In addition, the Air Class and web browsers support multi-directional communication and interactive learning, which will help your business succeed.

Genuine Touch & Writing Experience

Dual Pen & Multi Touch
The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens at the same time. This dual pen and multi touch offer a lifelike board writing experience and makes collaboration much easier.

Palm erasing
The TR3BF Series allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you're erasing a real whiteboard.

Easy Connect & Sharing

Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.

Screen Sharing
The TR3BF Series allows you to share screens and content with laptops and other mobile devices. This makes meetings and classes as efficient and immersive as possible.

Easy Expanded Functionality

Built-in OPS Slot
The TR3BF Series has a built-in OPS slot on the back of the digital board, allowing you to easily and conveniently utilize an OPS device, such as a computer, to provide expanded functionality.

User Friendly Experience

Web browser
The TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop.

All-in one
PC-free 4K UHD touchscreen with embedded whiteboard App on Android operation system.

Superior Picture Quality

High Resolution Clarity with Ultra HD
Using UHD will allow you to view details at four times higher resolution than FHD. Documents, images, videos, and other detailed content are displayed with less distortion in quality, which is especially important in educational and collaborating environments.

True Color, Immersive View
The TR3BF Series vividly shows multimedia content for the attendees. The IPS panel display allows content to be seen at various angles, regardless of where attendees are sitting. Each pixel of the IPS panel reproduces the actual image's color with virtually no distortion.

LG TR3BF Features

  • Multi-touch (20 points) & dual pen compatible
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture quality
  • Android OS with Chrome web browser
  • Built-in OPS kit
  • Supports Air Class & screen sharing

Key Features

  • Multi-touch (20 points) & dual pen compatible
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture quality
  • Android OS with Chrome web browser
  • Built-in OPS kit
  • Supports Air Class & screen sharing

What's in the box:

  • TR3BF Series 86 " 16:9 UHD IR Multi-Touch Point IPS Digital Display (Black)
  • Power Cord (3m)
  • USB Cable (Type A-Type B) (5m)
  • HDMI Cable (3m)
  • 2x Writing Pen
  • User Manual
  • QSG
  • Carton Box
  • Remote Control
  • LG 3 Year Limited Warranty
