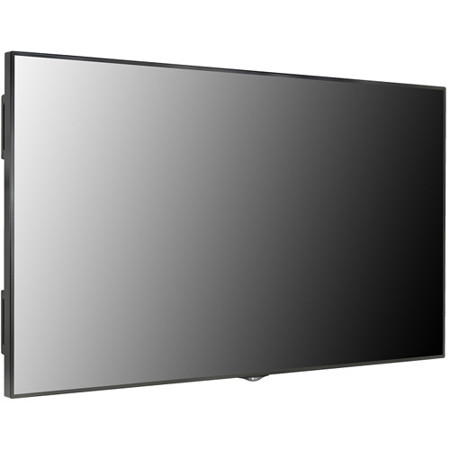

LG UH5E 98" UHD IPS Digital Signage Display with Built-In-Speakers, Landscape & Portrait, 3840x2160, Black

SKU: LOC98UH5EB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

LG UH5E Specifications

Panel
  • Screen Size

    98" (248.9cm)

  • Panel Technology

    IPS

  • Resolution

    3840 x 2160 (UHD)

  • Response Time

    6ms (G to G)

  • Brightness

    500 nits

  • Aspect Ratio

    16:09

  • Viewing Angle (H x V)

    178 x 178 degree

  • Orientation

    Landscape & Portrait

  • Lifetime (Typ.)

    50,000 Hrs

  • Operation Hours

    24Hrs

  • Surface Treatment (Haze)

    Haze 1%

Connectivity

Jump to...
  • Input

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

  • Output

    DP, Audio (Off/Fixed/Variable), External Speaker

  • External Control

    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

Special Features

Jump to...
  • Feature

    Yes Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation,

  • Feature (Contd.)

    PIP/PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron Connected1, Cisco Compatibility 2, Beacon, HDMI-CEC 3, SI Server Setting, webRTC

Environment Conditions

Jump to...
  • Operating Temperature Range

    32 Degree F to 104 Degree F / 0 Degree C to 40 Degree C

  • Operating Humidity Range

    10% to 80%

  • Power Supply

    100-240V-, 50/60Hz

  • Power Type

    Built-In Power

  • Smart Energy Saving

    294W

  • Power Consumption

    Typ./Max.: 420W / 560W

  • Speaker

    Built-in Speaker(10W+10W)

Certification

Jump to...
  • Safety

    IEC 60950-1/EN 60950-1/UL 60950-1

  • EMC

    FCC Class "A"/CE/KC

Media Player Compatibility

Jump to...
  • External Media Player Attatchable

    Yes

  • OPS Type Compatible

    Yes

Software Compatibility

Jump to...
  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

Physical

Jump to...
  • Bezel Color

    Black

  • Bezel Width

    0.58" (14.9mm) (Even, Off-Bezel)

  • VESA TM Standard Mount Interface

    800 x 400 mm

  • Handle

    Yes

  • Dimensions (W x H x D)

    (Without Handle): 86..3 x 49.1 x 2.7" (2191.8 x 1246.8 x 69.4mm)

  • Weight

    194 lb (88kg)

About LG UH5E

Vibrant Colors and Powerful Performance Bring Content
With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.

Superior Picture Quality

True Color, Immersive View
The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

Vivid Color Details with Ultra HD
The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC (High Efficiency Video Coding).

Powerful webOS Smart Signage Platform

Easy Content Management
The embedded CMS (Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

Simple Group Management
The embedded Group Manager makes a master display work as a server and manage other displays (One master display can create a max. of 25 groups, ans each group can consist of a max. of 12 slave displays) connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Multi Screen Mode
PBP (Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Easy Maintenance

Real-Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Wireless Solution

Content Sharing
Content mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Access Point
The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.

High Compatibility

Compatibility with AV Control System
The UH5E series has been certified Crestron Connected for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control (Network-based control), boosting business management efficiency.

Compatibility with Video Conference System
For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control (The integrated control of the display and Cisco system is enabled through the HDMI cable connectin) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Space-efficient Design

Slim and Tidy in Appearance
Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.

Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers (Except 98"), giving advertisements greater impact.

LG UH5E Features

  • Brightness (Typ.) : 500 cd/sq. m
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 57.9 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)

Key Features

  • Brightness (Typ.) : 500 cd/sq. m
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 57.9 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)

What's in the box:

  • LG UH5E 98 " UHD IPS Digital Signage Display
  • Remote Controller
  • Power Cord
  • QSG
  • DP Cable (1.8M)
  • Regulation Book
  • Phone to RS232C Gender
  • LG 3 Year Limited Warranty
