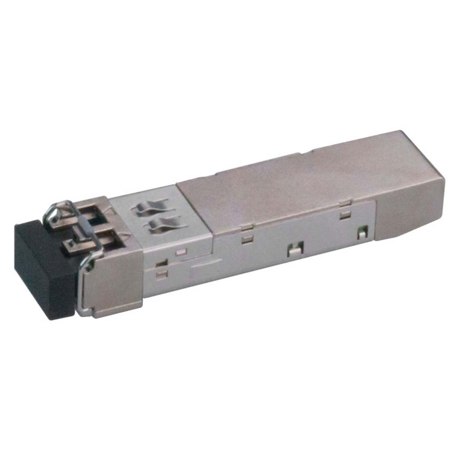

Lynx Technik AG OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver

SKU: LTOTR1G155LC MFR: OH-TR-10G-1550-LC
Earn VIP Reward Points

Key Features

  • Experience high-speed data transfer with this 10Gbit/s optical data transceiver.
  • Ensure a reliable connection with the 1550nm CWDM wavelength technology.
  • Enjoy wide compatibility; this transceiver supports LC/Duplex Singlemode fiber connections.
  • Benefit from strong security features, ensuring safe data transmission over optical links.
  • Facilitate easy setup with its MSA compliant SFP connector pinning sequence.
  • Extend your network's long range capabilities with its impressive optical performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OH-TR-10G-1550-LC Specifications

Transmitter

Transmitter

Jump to...
  • Wavelength

    Min: 1550c-6 nm
    Typ: 1550c
    Max: 1550c+7.5 nm

  • Optical Power

    Min: 0 dBm
    Max: 4 dBm

  • Linear Extinction Ratio

    Min: 3.5 dB

Receiver

Jump to...
  • Receiver Sensitivity

    Max: -23 dBm

  • Wavelength

    Min: 1260 nm
    Max: 1620 nm

  • Overload

    Min: -8 dBm

  • Loss of Signal Asserted

    Min: -37 dBm

  • Loss of Signal De-Asserted

    Max: -24 dBm

  • Optical Hysteresis

    Min: 1 dB

Mechanical

Jump to...
  • SFP Connector pinning

    MSA

  • Fiber connections

    LC / Duplex - Singlemode

  • Operating Temperature Range

    32 Degree F - 158 Degree F (0 Degree C - 70 Degree C)

  • Power Supply Voltage

    3.3V DC

  • Power Consumption

    Max. 455 mA

  • Humidity

    Non condensing 90%

  • Dimensions

    2.26 x 0.53 x 0.5" (57.4 x 13.4 x 12.7mm) (Not including connector - typ)

  • Weight

    1.76 oz (50g)

  • UPC Code

    4250479328280

Models
Lynx Technik AG OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver
$1,932.30

$2,034.00

Save:$101.70 (5%)

Ships from Manufacturer

Usually ships within 7-14 Days. Delivery is subject to availability.

Lynx Technik AG OH-TR-10G-1470-LC 10Gbit/s 1470nm CWDM Optical Data Transceiver
$1,932.30

$2,034.00

Save:$101.70 (5%)

Ships from Manufacturer

Usually ships within 7-14 Days. Delivery is subject to availability.

Lynx Technik AG OH-TR-10G-1490-LC 10Gbit/s 1490nm CWDM Optical Data Transceiver
$1,932.30

$2,034.00

Save:$101.70 (5%)

Ships from Manufacturer

Usually ships within 7-14 Days. Delivery is subject to availability.

Component TypeTransceiversTransceiversTransceivers
Bridge InterfaceFiber Channel SFPFiber Channel SFPFiber Channel SFP

About Lynx Technik AG OH-TR-10G-1550-LC

Bring high-speed data transmission to your network with the OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver. Designed as a versatile plug-in option for select LYNX Technik products, this Small Form-factor Pluggable (SFP) module is equipped with both a receiver and a transmitter. These components work in tandem to convert an electrical Ethernet signal into an optical signal, enabling efficient transmission over fiber optic cables, and vice versa.

With support for high-speed transmission rates of up to 10 Gbit/s, this optical data transceiver ensures rapid data transfer, making it an ideal solution for bandwidth-intensive applications. It also offers compatibility with 1 Gbit/s transmission rates, providing flexibility for various network requirements.

The OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver also features 8 Coarse Wavelength Division Multiplexing (CWDM) wavelength selections. This advanced technology allows multiple wavelengths to be transmitted simultaneously over a single fiber, significantly increasing the capacity of your network.

Incorporate the OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver into your system for enhanced data transmission performance and network efficiency.

Lynx Technik AG OH-TR-10G-1550-LC Features

  • Multi-rate optical transceiver for 10 Gbit/s or 1 Gbit/s signals
  • Receiver and transmitter in single package
  • High receiver sensitivity APD
  • 1550 nm CWDM wavelength
  • For use with select LYNX-Technik products
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Key Features

  • Experience high-speed data transfer with this 10Gbit/s optical data transceiver.
  • Ensure a reliable connection with the 1550nm CWDM wavelength technology.
  • Enjoy wide compatibility; this transceiver supports LC/Duplex Singlemode fiber connections.
  • Benefit from strong security features, ensuring safe data transmission over optical links.
  • Facilitate easy setup with its MSA compliant SFP connector pinning sequence.
  • Extend your network's long range capabilities with its impressive optical performance.

What's in the box:

  • Lynx Technik AG OH-TR-10G-1550-LC 10Gbit/s 1550nm CWDM Optical Data Transceiver
  • Lynx Technik AG 3 Year Limited Warranty
