Review Summary
1/2.8" 2.16 MP CMOS
1080p: 60 / 50 / 30 / 25
720p: 60 / 50 / 30
3G-SDI / HDMI / Ethernet / USB 3.0
20x
12x
57 Degree
32.1 Degree
65.4 Degree
F1.6-F3.8
5.33-110mm
1/1 - 1/10,000 sec
Wide: 1.64' (0.5m) / Tele: 4.92' (1.5m)
> 50dB
1.0 lux (F1.6, 50IRE, 30fps)
Auto / Manual / Smart AF
Auto / Manual
Auto / Manual
Auto / Manual / Smart AE
Yes
Yes
Yes
FreeD
Yes
+170 Degree to -170 Degree
225 Degree /sec
+90 Degree to -30 Degree
225 Degree /sec
256
1080p 60
Main: H.264 1080p 60
Second: H.264 640x360p 30
Webpage Preview: 1280x720 30
H.264
1080p 60
H.264 / MJPEG
RTSP / RTMP / RTMPS / MPEG-TS / SRT / HTTP / HTTPS
PoE (IEEE802.3af)
Line In / MIC In
Ethernet / USB 3.0 / HDMI / SDI
AAC / PCM
RS-232 / RS-422 / Ethernet / USB / Remote
VISCA / VISCAIP / ONVIF
1.1
Yes
Black, White
12V +/- 20%
PoE: 13W
DC In: 12W
Taiwan
6.85 x 7.76 x 7.09" (174 x 197 x 180mm)
4.4 lbs (2kg)

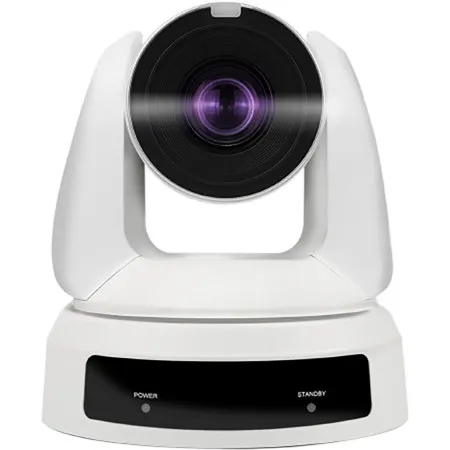

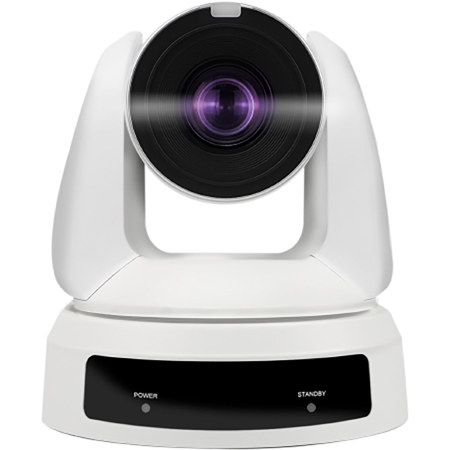

The VC-A53 PTZ unit combines broadcast-quality robotics and a professional imaging sensor to deliver an exceptional remote video camera. It features excellent color reproduction and low light shooting and gives users an incredible level of flexibility in terms of power, pan, tilt and zoom control and video output.
Professional High Speed Robotics
With high-precision motors, the VC-A53 can run at up-to 225 Degree per second for very fast movement between preset positions. The unit is also able to move at low speed to deliver smooth and judder-free tracking shots.
Networking Built-in
The VC-A53's Ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard formats, and IP control. Users can remotely control multiple units and manage their cameras facility-wide using the complimentary Lumens Deployment Tool 2.0
Production Ready
The VC-A53 is based around a professional Sony sensor, making the video output easy to integrate into mixed camera productions. The unit can be controlled using RS-232, RS-422 , USB and Ethernet control interfaces enabling users to add the camera into existing workflows.
Intelligent Auto
VC-A53 offers full manual settings to give producers full creative control. The camera also incorporates intelligent automatic modes that deliver exceptional auto-focus, predictive auto-exposure and auto-white balance. These features allow users to trust the camera to run without user-input and to deliver consistently professional results.
