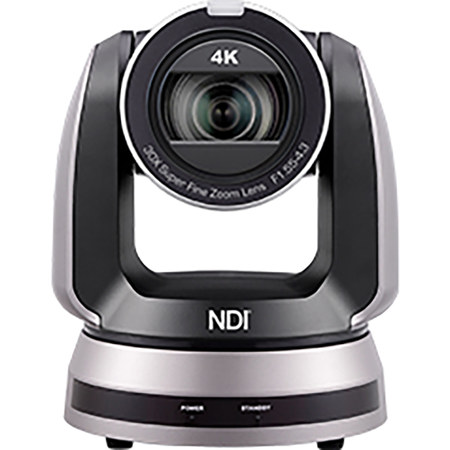

Lumens VC-A71P-HN 4K UHD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera, TAA Black
See all Lumens items

Lumens VC-A71P-HN 4K UHD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera, TAA Black

SKU: LMVCA71PHNB MFR: VC-A71P-HNB
Be the first to review this itemAsk a Question
$4,040.00
OR
$337/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with stunning 4K UHD resolution, perfect for professional broadcasts and presentations.
  • Experience smooth, precise camera movements with wide pan and tilt angles, ensuring comprehensive coverage for any event.
  • Achieve incredible clarity even in low-light conditions, thanks to advanced sensor technology for crisp, vibrant images.
  • Utilize versatile connectivity options like NDI|HX3, 12G-SDI, and HDMI for seamless integration into your existing setup.
  • Benefit from a powerful 30x optical zoom, allowing you to focus on distant subjects without sacrificing image quality.
  • Enjoy flexible installation with PoE++ support and multiple control protocols, making setup and operation simple and efficient.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$159.99
3-Year Adorama Protect$215.99
4-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lumens VC-A71P-HN 4K UHD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera, TAA Specifications

PTZ Camera

PTZ Camera

Jump to...

  • Sensor

    1/1.8" 9.17 MP CMOS

  • Video Format

    2160p: 59.94 / 50 / 29.97 / 25
    1080p: 59.94 / 50 / 29.97 / 25
    1080i: 59. 94 / 50
    720p: 59.94 / 50

  • Video Output Interface

    HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0

  • Genlock

    Yes

  • Optical Zoom

    30x

  • Digital Zoom

    12x

  • Horizontal Viewing Angle

    63 Degree (Wide) to 3.7 Degree (Tele)

  • Vertical Viewing Angle

    35.4 Degree (Wide) to 2.1 Degree (Tele)

  • Diagonal Viewing Angle

    72.3 Degree (Wide) to 4.2 Degree (Tele)

  • Aperture

    F1.6 - F4.8

  • Focal Length

    6.5 - 202mm

  • Shutter Speed

    1/1 - 1/10,000 sec

  • Minimum Object Distance

    4.92' (1.5m) (Wide / Tele)

  • Video S/N Ratio

    > 50dB

  • Minimum Illumination

    0.05 lux (F1.6, 50IRE, 30fps)

  • Focus System

    Auto / Manual / Smart AF

  • Gain Control

    Auto / Manual

  • White Balance

    Auto / Manual

  • Exposure Control

    Auto / Manual / Smart AE

  • IQ Sync

    Yes

  • WDR

    Yes

  • 3D NR

    Yes

  • Image Flip

    Yes

  • Color Space

    Standard / BT.2020 / REC.709

  • AR/VR Systems

    FreeD

  • NDI Genlock

    Yes

  • Tally Light

    Yes

Pan & Tilt

Jump to...

  • Panning Angle

    +170 Degree to -170 Degree

  • Panning Speed

    0.01 - 300 Degree /sec

  • Tilting Angle

    +90 Degree to -30 Degree

  • Tilting Speed

    0.01 - 300 Degree /sec

  • Preset Positions

    256

Output

Jump to...

  • HDMI / 12G-SDI

    2160p 59.94fps

  • IP Stream

    NDI:
    HEVC(H.265) 4K59.94fps
    H.264 640x360 29.97fps

    RTSP:
    HEVC(H.265) 4K 59.94fps
    H.264 1080p 59.94fps
    H.264 640x360 29.97fps

  • IP Compression

    H.264 / HEVC(H.265)

  • USB Output

    H.264 4K30fps
    MJPEG 1080p 30fps

  • USB Compression

    H.264 / MJPEG

Network

Jump to...

  • IP Protocol

    NDI High Bandwidth / NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT

  • PoE

    PoE++ (IEEE802.3bt)

Audio

Jump to...

  • Input

    Line In/MIC In , 1x Phone Jack 3.5mm

  • Output

    Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 / USB 3.0

  • Compression Format

    AAC / G.711/ PCM

Camera Control

Jump to...

  • Interface

    RS-232 / RS-422 / Ethernet / USB 3.0 / Remote

  • Protocol

    VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC

General

Jump to...

  • Available Colors

    Black, White

  • DC In

    12V +/-20%

  • Power Consumption

    PoE: 40W
    DC In: 40W

  • Country of Origin

    Taiwan

  • Dimensions

    9.1 x 7.4 x 7.4" (232 x 188 x 189mm)

  • Weight

    6.6 lbs (3kg)

Other

Jump to...

  • UPC Codes

    White: 0842183003511 | Black: 0842183003504

About Lumens VC-A71P-HN 4K UHD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera, TAA

VC-A71P-HN is a 4K 60fps PTZ camera with 12G-SDI, NDI High Bandwidth and NDI HX3 outputs. Its support for Rec.709 and BT.2020 color spaces make the camera suitable for HD and UHD TV workflows. Featuring genlock and the FreeD protocol, VC-A71P-HN can be used in demanding multi-camera productions including broadcast studios, remote locations, concert halls, sports arenas and virtual sets.

NDI High Bandwidth
Featuring NDI High Bandwidth, VC-A71P-HN delivers high-quality video over IP networks with ultra-low latency. Visually lossless, the I-Frame NDI codec is suitable for use in high-end video and TV production, live events and studios.

NDI HX3 Technology
VC-A71P-HN supports the latest version of the NDI protocol, NDI HX3. It delivers high-quality video with very low latency and connects directly to NDI networks. VC-A71P-HN outputs NDI HX3 and NDI High Bandwidth output simultaneously.

Broadcast Connections
VC-A71P-HN is equipped with dual SDI ports (12G and 3G) and a genlock connector to synchronize broadcast equipment. The camera can be powered over the Ethernet (PoE++); the network port can also be used for SRT and MPEG- TS output, as well as standard web streaming protocols.

BT.2020 / Rec.709
Lumens VC-A71P-HN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71P-HN can be matched with other cameras and deliver video output optimized for new generation Ultra HD monitors.

Lumens VC-A71P-HN 4K UHD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera, TAA Features

  • 4K 60 fps, 30x Optical Zoom, 1/1.8" Sensor
  • HDMI / 3G-SDI / 12G-SDI / IP / USB Support
  • Genlock Support
  • Rec.709 / BT.2020 Support
  • NDI High Bandwidth / NDI HX2 / NDI HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT Support
  • FreeD Protocol for Live VR/AR Production
  • 802.1x Support

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with stunning 4K UHD resolution, perfect for professional broadcasts and presentations.
  • Experience smooth, precise camera movements with wide pan and tilt angles, ensuring comprehensive coverage for any event.
  • Achieve incredible clarity even in low-light conditions, thanks to advanced sensor technology for crisp, vibrant images.
  • Utilize versatile connectivity options like NDI|HX3, 12G-SDI, and HDMI for seamless integration into your existing setup.
  • Benefit from a powerful 30x optical zoom, allowing you to focus on distant subjects without sacrificing image quality.
  • Enjoy flexible installation with PoE++ support and multiple control protocols, making setup and operation simple and efficient.

What's in the box:

  • Lumens VC-A71P-HN 4K Ultra HD NDI|HX3/12G-SDI/HDMI/IP/USB 30x PTZ Camera
  • Remote Control
  • RS-422 Connector
  • AC Power Cord
  • Power Adapter
  • Metal Mounting Plate A
  • Metal Mounting Plate B
  • 8x M3 Screws (Silver)
  • 2x M3 Screws (Black)
  • Lumens 5 Year Limited Warranty
