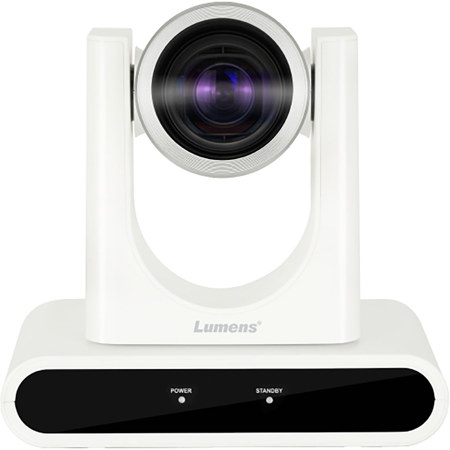

Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera, TAA Compliant White
See all Lumens items

Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera, TAA Compliant White

SKU: LMVCR32W MFR: VC-R32W
Be the first to review this itemAsk a Question
$1,240.00
OR
$104/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear Full HD video quality at 1080p60, perfect for professional presentations and live streaming.
  • Enjoy smooth pan/tilt/zoom functionality with 12x optical zoom, capturing every detail with precision and ease.
  • Benefit from versatile connectivity options including HDMI, IP, and USB 3.0 for seamless integration into any setup.
  • Simplify installation with Power over Ethernet (PoE) support, reducing cable clutter and setup time for your PTZ camera.
  • Choose from available colors like Black or White to seamlessly blend your PTZ camera into any environment.
  • Utilize advanced features like Auto Framing and WDR for optimal image performance in various lighting conditions.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera, TAA Compliant Specifications

PTZ Camera

PTZ Camera

Jump to...

  • Sensor

    1/2.8" 2.16M

  • Video Format

    1080p60
    1080p50
    1080p30
    1080p25
    720p60
    720p50

  • Video Output (HD) Interface

    HDMI / Ethernet / USB 3.0

  • Optical Zoom

    12x

  • Digital Zoom

    12x

  • Horizontal Viewing Angle

    72.5 Degree

  • Vertical Viewing Angle

    40.8 Degree

  • Diagonal Viewing Angle

    83.2 Degree

  • Aperture

    F1.8 - F3.0

  • Focal Length

    f=4.1 - 47.8mm

  • Shutter Speed

    1/25 - 1/10,000 sec

  • Minimum Object Distance

    Wide = 39.37" (100cm)
    Tele = 59.05" (150cm)

  • Video S/N Ratio

    > 50dB

  • Minimum Illumination

    1 lux (F1.8, 50IRE, 30fps)

  • Focus System

    Auto, manual

  • Gain Control

    Auto, manual

  • White Balance

    Auto, manual

  • Exposure Control

    Auto, manual

  • WDR

    Yes

  • 3D NR

    Yes

  • Image Flip

    Yes

  • Auto Framing

    Yes

Pan & Tilt

Jump to...

  • Panning Angle

    +170 to -170 Degree

  • Panning Speed

    0.2-120 Degree /sec

  • Tilting Angle

    +90 to -30 Degree

  • Tilting Speed

    0.2-80 Degree /sec

  • Preset Positions

    256

Output

Jump to...

  • HDMI

    1080p 60

  • IP Stream

    Triple streaming structure:
    First: H.264 1080p 60
    Second: H.264 720p 30
    Webpage: H.264 720p 30

  • IP Compression

    H.264

  • USB Output

    1080p60

  • USB Compression

    MJPEG

Network

Jump to...

  • IP Protocol

    RTSP / RTMP / RTMPS / SRT

  • PoE

    Yes (IEEE802.3af)

Audio

Jump to...

  • Audio Input

    Line In / MIC In

  • Audio Output

    Ethernet / USB 3.0 / HDMI

  • Audio Compression Format

    IP: AAC
    USB: PCM

Camera Control

Jump to...

  • Interface

    RS-232/422 (RJ-45) / Ethernet / USB 3.0

  • Protocol

    VISCA / ONVIF

  • UVC

    Yes

  • UAC

    Yes

General

Jump to...

  • Available Colors

    Black, White

  • DC In

    12V +/- 20%

  • Power consumption

    PoE: 9W
    DC In: 8W

  • Country of Origin

    Taiwan

  • Dimensions

    7.5 x 7.3 x 5.4" (190 x 185 x 138mm)

  • Weight

    3.1 lbs (1.4kg)

Other

Jump to...

  • UPC Codes

    White: 0842183004198 | Black: 0842183004181

About Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera, TAA Compliant

A 1080p 60fps PTZ camera with a 12x optical zoom. Lumens VC-R32 is equipped with a high sensitivity Sony 1/2.8 inch image sensor. It delivers simultaneous USB 3.0, HDMI and Ethernet video outputs for connection flexibility and supports multiple control protocols. The camera features smooth, quiet and accurate robotics even at high speed. It can be positioned upright or inverted to suit your studio, theater, classroom, courtroom, meeting space or house of worship.

Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera, TAA Compliant Features

  • 1080p 60 fps
  • 12x zoom / 72.5 Degree horizontal field of view
  • Simultaneous HDMI, USB and IP streaming output
  • Ultra-silent PTZ motors for smooth, accurate movement
  • Power, video, audio, and control over a single Ethernet cable
  • Wide-angle lens for flexible framing in small to large rooms
  • Support for RS-422 and RS-232 control protocols
  • Remote configuration and firmware upgrade via web UI
  • Mount upright or inverted with standard mounting accessories

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear Full HD video quality at 1080p60, perfect for professional presentations and live streaming.
  • Enjoy smooth pan/tilt/zoom functionality with 12x optical zoom, capturing every detail with precision and ease.
  • Benefit from versatile connectivity options including HDMI, IP, and USB 3.0 for seamless integration into any setup.
  • Simplify installation with Power over Ethernet (PoE) support, reducing cable clutter and setup time for your PTZ camera.
  • Choose from available colors like Black or White to seamlessly blend your PTZ camera into any environment.
  • Utilize advanced features like Auto Framing and WDR for optimal image performance in various lighting conditions.

What's in the box:

  • Lumens VC-R32 Full HD HDMI/IP/USB 12x PTZ Camera
  • Remote Control
  • Power Adapter
  • Power Cord
  • 6.6' USB-B to USB-A 3.0 Cable
  • Lumens 5 Year Limited Warranty
