Review Summary
1/2.8" 2.16MP CMOS
1080p60
1080p50
1080p30
1080p25
720p60
720p50
HDMI / Ethernet / USB 3.0
12x
12x
72.5 Degree
40.8 Degree
83.2 Degree
F1.6 - F2.8
f = 3.9 - 46.8mm
1/25 - 1/10,000 sec
Wide = 39.37" (100cm)
Tele = 59.05" (150cm)
> 50dB
1 lux (F1.6, 50IRE, 30fps)
Auto, manual
Auto, manual
Auto, manual
Auto, manual
Yes
Yes
Yes
Everywhere / Stage / Partition
Everywhere / Partition
Yes
1/2.8" 2MP CMOS
720p30
111 Degree
62 Degree
F2.4
3.1mm
+170 to -170 Degree
0.2 to 120 Degree / sec
+90 to -30 Degree
0.2 to 80 Degree / sec
256
PTZ Camera:
Main: 1080p60
Second: 720p30
Panoramic Camera: 720p30
H.264
1080p30
MJPEG
HTTP / RTSP / RTMP / RTMPS / SRT
Yes (IEEE802.3af)
Line In / MIC In
Ethernet / USB 3.0 / HDMI
AAC / PCM
RS-232 / Ethernet / USB 3.0
VISCA / ONVIF
1.1
Yes
Black, White
12V +/- 20%
PoE: 11W
DC In: 10W
Taiwan
7.5 x 7.3 x 5.4" (190 x 185 x 138mm)
3.3 lbs (1.5kg)
White: 0842183003764 | Black: 0842183003825

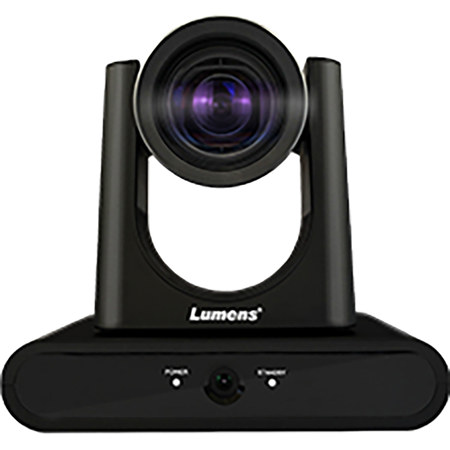

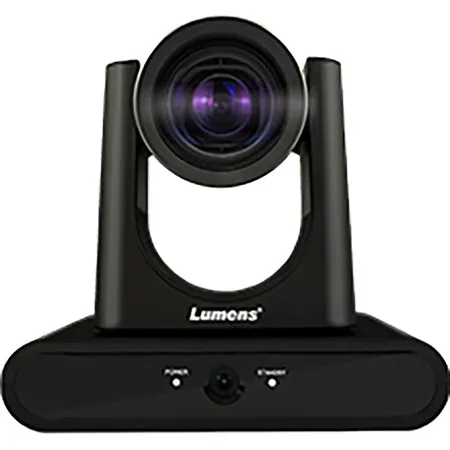

VC-TR30 is a cost-effective and feature-packed HD PTZ camera with AI-based auto-tracking and auto-framing. Video is delivered simultaneously from the HDMI, USB and IP ports. Power is supplied by a DC adapter or by PoE (Power over Ethernet). With its 12x zoom, the VC-TR30 is highly adaptable, suitable for meeting rooms, live events and video studios.
Automatic Production
VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around delegates present in the meeting room.
Flexible Lens
The 12x zoom lens has a 72.5 Degree horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces or presentation stages. It works in partnership with the high sensitivity sensor to deliver excellent video quality in all lighting conditions.
Gesture Control Tracking Method
The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.
Single Cable Installation
The VC-TR30's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
