Review Summary
1/2.8" 2.16MP CMOS
1080p60
1080p50
1080p30
1080p25
720p60
720p50
HDMI, Ethernet, 3G-SDI, USB 3.0
20x
12x
58.7 Degree
33 Degree
67.3 Degree
F1.6 - F2.8
4.9 - 94mm
1/25 - 1/10,000 sec
19.68" (500mm)
> 50dB
1 lux (F1.6, 50IRE, 30fps)
Auto, manual
Auto, manual
Auto, manual
Auto, manual
Yes
Yes
Yes
Everywhere / Stage / Partition
Everywhere / Partition
Yes
1/2.8" 2MP CMOS
720p30
111 Degree
62 Degree
F2.4
3.1mm
+170 to -170 Degree
0.2-120 Degree / sec
+90 to -30 Degree
0.2-80 Degree / sec
256
1080p60
PTZ Camera:
Main: 1080p60
Second: 720p30
Panoramic Camera: 720p30
H.264
1080p30
MJPEG
NDI HX3 / NDI HX2 / HTTP / RTSP / RTMP / RTMPS / SRT
Yes (IEEE802.3af)
Line In / MIC In
Ethernet / USB 3.0 / HDMI / SDI
AAC / PCM
RS-232 / Ethernet / USB 3.0
VISCA / ONVIF / NDI
1.1
Yes
Black, White
12V +/-20%
PoE: 11W
DC In: 10W
Taiwan
7.5 x 7.3 x 5.4" (190 x 185 x 138mm)
3.3 lbs (1.5kg)

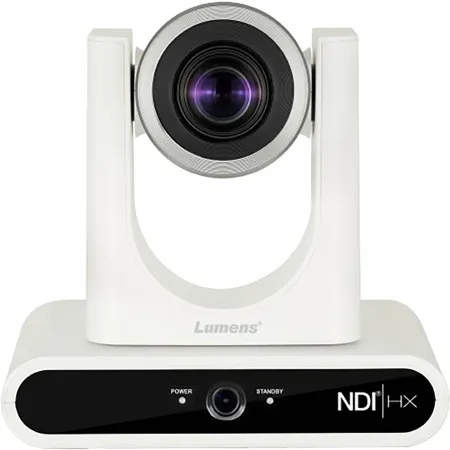

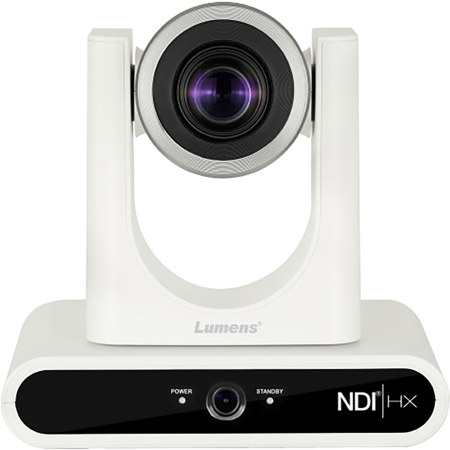

VC-TR40N is an NDI-enabled dual camera auto-tracking PTZ. The camera works seamlessly with network based NDI tools, including media processors, multi-channel recorders, live production software and streaming encoders.
NDI Technology
Connecting the camera to an NDI network means video, audio, control and power down a single Ethernet cable.
Intelligent Modes
VC-TR40N supports stage tracking, everywhere tracking, and partition tracking modes so that you can optimize the sensors to track more accurately than ever and deliver superb results every time.
Gesture Control Tracking
If you have multiple presenters on stage or require audience participation, all they need to do is raise their hands. The camera then switches its focus to the new target.
Auto-Framing and Partition Framing Mode
Auto-framing modes automatically set the ideal camera position for a team meeting or group discussion. The modes frame the delegates and not the space around them.
Flexible Mounting
Unlike many tracking cameras, VC-TR40N can be mounted vertically or inverted from the ceiling.
