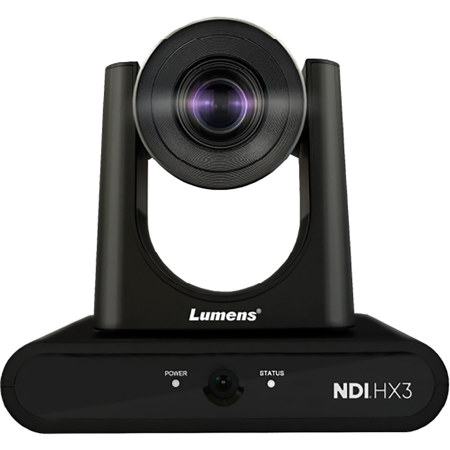

Lumens VC-TR41N FHD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP 20x PTZ Camera, TAA Black
See all Lumens items

Lumens VC-TR41N FHD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP 20x PTZ Camera, TAA Black

SKU: LMVCTR41NPB MFR: VC-TR41NPB
Be the first to review this item
$2,090.00
OR
$175/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crisp, clear Full HD 1080p video with smooth pan-tilt-zoom for dynamic presentations.
  • Experience versatile connectivity with NDI|HX3, 3G-SDI, HDMI, and IP options for seamless integration.
  • Benefit from intelligent AI auto-tracking and auto-framing features, perfect for engaging lectures and events.
  • Enjoy wide zoom capabilities, offering 20x optical zoom to capture every detail from a distance.
  • Ensure reliable performance and simplified setup with Power over Ethernet (PoE) support.
  • Choose from available color options to seamlessly blend into your professional environment.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$99.99
3-Year Adorama Protect$159.99
4-Year Adorama Protect$191.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lumens VC-TR41N FHD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP 20x PTZ Camera, TAA Specifications

PTZ Camera

PTZ Camera

Jump to...

  • Sensor

    1/2.8" 2.16M

  • Video Format

    1080p: 60 / 50 / 30 / 25
    720p: 60 / 50

  • Video Output (HD) Interface

    HDMI / Ethernet / 3G-SDI / USB 3.0

  • Optical Zoom

    20x

  • Digital Zoom

    12x

  • Horizontal Viewing Angle

    58.7 Degree

  • Vertical Viewing Angle

    33 Degree

  • Diagonal Viewing Angle

    67.3 Degree

  • Aperture

    F1.6 - F2.8

  • Focal Length

    4.9 - 94mm

  • Shutter Speed

    1/25 - 1/10,000 sec

  • Minimum Object Distance

    19.68" (500mm)

  • Video S/N Ratio

    > 50dB

  • Minimum Illumination

    1 lux (F1.6, 50IRE, 30fps)

  • Focus System

    Auto / Manual / Smart AF

  • Gain Control

    Auto / Manual

  • White Balance

    Auto / Manual

  • Exposure Control

    Auto / Manual / Smart AE

  • WDR

    Yes

  • 3D NR

    Yes

  • Image Flip

    Yes

  • Auto Tracking

    Everywhere / Stage / Partition

  • Auto Framing

    Everywhere / Partition

  • Gesture Control

    Yes

Panoramic Camera

Jump to...

  • Sensor

    1/2.8" 2MP CMOS

  • Video Format

    720p 30 / 25

  • Horizontal Viewing Angle

    87 Degree

  • Vertical Viewing Angle

    49 Degree

Pan & Tilt

Jump to...

  • Panning Angle

    +170 Degree to -170 Degree

  • Panning Speed

    0.2 Degree - 120 Degree /sec

  • Tilting Angle

    +90 Degree to -30 Degree

  • Tilting Speed

    0.2 Degree - 80 Degree /sec

  • Preset Positions

    256

Output

Jump to...

  • HDMI / 3G-SDI

    1080p 60

  • IP Stream

    PTZ Camera:
    Main: 1080p 60 / 50
    Second: 720p 30 / 25

    Panoramic Camera: 720p 30 / 25

  • IP Compression

    H.264

  • USB Output

    1080p 30 / 25

  • USB Compression

    MJPEG

Network

Jump to...

  • IP Protocol

    NDI HX3 / NDI HX2 / HTTP / RTSP / RTMP / RTMPS / SRT

  • PoE

    Yes (IEEE802.3af)

Audio

Jump to...

  • Audio Input

    Line In / MIC In

  • Audio Output

    Ethernet / USB 3.0 / HDMI / SDI

  • Audio Compression Format

    AAC / PCM

Camera Control

Jump to...

  • Interface

    RS-232 / 422 (RJ-45) / Ethernet / USB 3.0

  • Protocol

    VISCA / ONVIF / NDI

  • UVC

    1.1

  • UAC

    Yes

General

Jump to...

  • Available Colors

    Black, White

  • DC In

    12V +/- 20%

  • Power consumption

    PoE: 11W / DC In: 10W

  • Country of Origin

    Taiwan

  • Dimensions

    7.5 x 7.3 x 5.4" (190 x 185 x 138mm)

  • Weight

    3.3 lbs (1.5kg)

Other

Jump to...

  • UPC Code

    White: 0842183004105

About Lumens VC-TR41N FHD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP 20x PTZ Camera, TAA

VC-TR41N is a dual-lens motion-tracking PTZ camera. Its AI technology makes it easy to identify and track a moving subject smoothly and reliably. VC-TR41N features a 20x optical zoom lens with auto framing technology that intelligently zooms to capture all guests in view.

Lumens VC-TR41N FHD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP 20x PTZ Camera, TAA Features

  • AI-powered human detection with auto-framing and motion-tracking
  • NDI HX3, RTSP, RTMP, SRT streaming support
  • Simultaneous output via HDMI, 3G-SDI, USB, and IP
  • 1080p 60fps video with 20x optical zoom
  • Ultra-silent PTZ motors for smooth, accurate movement
  • PoE for power, video, audio, and control over a single Ethernet cable
  • Wide-angle lens for flexible framing in small to large rooms
  • Preset position support for quick recall of camera viewpoints
  • Remote configuration and firmware upgrade via web UI
  • Mount upright or inverted with standard mounting accessories

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crisp, clear Full HD 1080p video with smooth pan-tilt-zoom for dynamic presentations.
  • Experience versatile connectivity with NDI|HX3, 3G-SDI, HDMI, and IP options for seamless integration.
  • Benefit from intelligent AI auto-tracking and auto-framing features, perfect for engaging lectures and events.
  • Enjoy wide zoom capabilities, offering 20x optical zoom to capture every detail from a distance.
  • Ensure reliable performance and simplified setup with Power over Ethernet (PoE) support.
  • Choose from available color options to seamlessly blend into your professional environment.

What's in the box:

  • Lumens VC-TR41N Full HD Dual-Lens NDI|HX3/3G-SDI/HDMI/IP/USB 20x PTZ Camera
  • Remote Control
  • Power Adapter
  • Power Cord
  • 6.6' USB-B to USB-A Cable
  • Lumens 5 Year Limited Warranty
