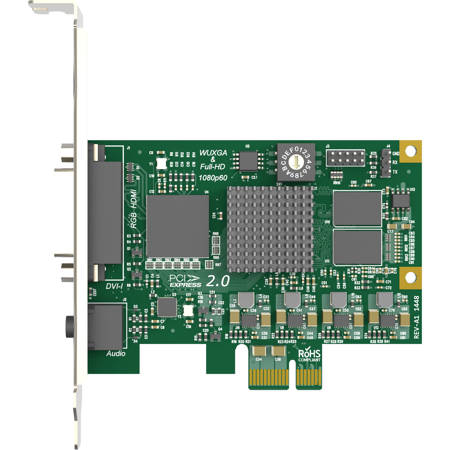

Magewell Pro Capture DVI One Channel HD Capture Card
See all Magewell items

Magewell Pro Capture DVI One Channel HD Capture Card

SKU: MA11030

This item is no longer available.

Recommended Alternatives

Magewell Pro Capture Card: Picture 1 regular
Magewell Pro Capture AIO One Channel HD Capture Card
$495.00
Magewell USB Capture HDMI Plus: Picture 1 regular
Magewell USB Capture HDMI Plus Single-Channel Video/Audio Capture Device
$389.00
Magewell Dongle: Picture 1 regular
Magewell One Channel USB 3.0 to SDI Video Capture Dongle
$389.00
Magewell USB Capture HDMI 4K Plus: Picture 1 regular
Magewell USB Capture HDMI 4K Plus Device
$545.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-11-10T07:40:30

Rated 5 out of 5

Great product - versatile

Used in an Avolites Ai Q3 and it works great to pass video feeds to a media server with nearly zero latency. Couldn?t be happier!

Michael G.

2020-09-24T08:37:40

Rated 5 out of 5

Easy to Install and It Works!

I'd tried BlackMagic and AJA adapters and neither worked right. The AJA would freeze the video after 15 minutes or so - I think it was getting too hot. I installed this Magewell card in the PC and after loading the drivers, it popped right and I haven't had any problems at all.

JOHN B.

2019-11-15T07:42:51

Rated 5 out of 5

Black Magic DeckLink Freezing - Magewell to the rescue :-)

We first tried a Black Magic Deck Link Mini Recorder card with a new Panasonic HCV770 Camcorder for Live Streaming. After extensive testing, new cables, trying everything under the sun for a intermittent freezing problem. We replaced the card with this Magewell. The results were immediate, no freezing what so ever and the picture was outstanding at 1920 x 1080 60p. We are sold on Magewell.

JAMES M.

2017-04-13T13:51:39

Rated 5 out of 5

Awesome

Has clear imagen and the best thing is that bingo don the CPU usage a lot from 100% to 5 or 7% I recomendé it if you have that problem

Mario Z.

2017-03-14T13:18:43

Rated 5 out of 5

Great card for vMix or similar

Purchased for a self-built system based on the vMix reference specs. Use it for a three HD-SDI camera system for church broadcasting and live production. Cameras used are the PTZOptics 20X-SDI. This card has no problems with these cameras. Would highly recommend!

Michael K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Magewell Pro Capture Card Specifications

  • Supported OS

    Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (based on V4L2, supports x86, x64 & arm architecture)
    Mac OS X

  • Supported APIs

    Windows: DirectShow
    DirectKS
    Wave API/DirectSound/WASAPI

    Linux: V4L2
    ALSA

  • Supported Software

    VLC
    VirtualDub
    OBS
    xSplit
    vMix
    VidBlaster
    Wirecast
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow/V4L2 encoding/streaming software

  • Input Interfaces

    DVI-I: DVI 1.0
    HDMI 1.4a (via breakout cable)
    VGA (via DVI2VGA connector)
    Component (via breakout cable)

    3.5mm Phone Jack: Line in

  • Output Interfaces

    1x PCIe Gen2

  • Input Functions

    Auto scan of video input sources when there is no signal input to the currently selected input source
    Manual selection of video input source
    Auto selection of linked (embedded) audio input source when the video input source changes
    Manual selection of audio input source
    Support for standard crossbar based on video input source selection
    Support for input video resolutions up to 2048x2048 pixels

  • VGA & Component Specific Functions

    12-bit ADC
    Support for RGB & YCbCr (YUV) color formats
    Support for 'Seperated sync', 'Composite sync', 'Sync-on-green' (SOG), 'Sync-on-luminance' (SOY)

  • VGA&Component Specific Functions (Cont.)

    Support for DMT, CEA, CVT, GTF video timings
    Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
    Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT officially supported)
    Auto detection of RGB & YCbCr color formats
    Auto or manual sampling phase adjustment
    Auto horizontal alignment
    Support for customized video timings
    Support for customized video resolutions for CVT/GTF timings

  • HDMI Specific Functions

    225MHz HDMI receiver
    Adaptive HDMI equalizer support for cables lengths up to 30M
    Support for customized EDID
    Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
    Full colorimetry support
    Support for 8/10/12-bit color depths
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for up to 8-channel IEC60958/IEC61937 audio streams
    Support for extraction of audio formation information & channel status data

  • HDMI Specific Functions (Cont.)

    Support for extraction of video timing information
    Support for extraction of 3D format information
    Support for extraction of Sony/Canon DSLR time code

  • Video Output Formats

    Support for output image resolutions up to 2048x2048 pixels
    Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = 80fps.(approx.) )
    Support for 4:2:0 8-bit output formats: NV12, I420, YV12
    Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY

  • Video Output Formats (Cont.)

    Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
    Support for 4:4:4 10-bit output formats: V410, Y410
    More output formats are supported via Pro Capture SDK for DirectKS

  • Video Processing Functions

    Two video processing pipelines with (approx.)180Mpixels/s processing bandwidth for each one

    Full 10-bit video processing

    Video cropping

    Video scaling

    Video de-interlacing: Weave
    Blend top & bottom field
    Top field only
    Bottom field only

    Video aspect ratio conversion: Auto or manual selection of input aspect ratio
    Auto or manual selection of output aspect ratio

  • Video Processing Functions (Cont.)

    Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

    Video color format conversion: Auto or manual selection of input color format & quantization range
    Auto or manual selection of output color format, quantization range & saturation range
    Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    Support for Limited or Full quantization range
    Support for Limited, Full & 'Extended gamut' saturation range

  • Video Processing Functions (Cont..)

    Video frame rate conversion

    Video OSD composition: Support for PNG OSD image (up to 2048x2048)
    Support for dynamic loading of RGBA OSD image via SDK

  • Multiple Cards per System

    Support for multiple cards plugged to one system
    On-board rotary switch to set card number, with 16 positions from 0 to F
    System hardware device tree will display "01: Pro Capture AIO" when rotary switch is set to 1 and so on
    The video and audio device names displayed in your software will include the card number (set by the rotary switch)

  • Multiple Output Streams

    Unlimited output streams for any one input channel
    Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

  • Ultra Low Latency Support

    Latency of 64 video lines
    Partial notification mode in SDK

  • Timestamp & A/V Synchronization

    Hardware based 100ns high resolution clock
    Audio frames (192 audio samples) & video frames are stamped with hardware clock
    Hardware clock can be synchronized across cards (via SDK)

  • Video Output SG-DMA

    400MB/s per channel DMA bandwidth in PCIe 2.0 system(Approx.)
    200MB/s per channel DMA bandwidth in PCIe 1.0 system(Approx.)
    Support for auto detection of Intel tiled GPU surface
    Support for DirectGMA for AMD video adapter chipsets
    Support for GPUDirect for Nvidia video adapter chipsets

  • SDK

    Pro Capture SDK for DirectShow for easy integration (Windows)
    Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

  • Windows Driver Tweaks

    All options can be controlled by three levels of registry key: global level, product level and device level
    Video, Audio, Crossbar filter names can be customized via registry keys

  • Firmware Upgrade

    Multiple cards in one system can be upgraded simultaneously
    Cards can be upgraded without a system power shutdown when it is not in use
    Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above

  • LED Indicator

    Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed

  • Form Factor

    1x Low profile PCIe Add-on Card

  • Power Consumption

    Max current at 12V, 0.4A(Approx.)
    Max current at 3.3V, 0.2A(approx.)
    Max power consumption 4.7W(Approx.)

  • Operating temperature

    0 to 40deg. C / 32 to 104deg. F

  • Storage temperature

    -20 to 70deg. C / -4 to 158deg.

  • Relative Humidity

    5% to 90% non-condensing

  • Dimensions

    Without PCI bracket: 92.76 x 68.88mm / 3.65 x 2.71"

About Magewell Pro Capture Card

FEATURED REVIEWS

Black Magic DeckLink Freezing - Magewell to the rescue :-)

By JAMES M.

We first tried a Black Magic Deck Link Mini Recorder card with a new Panasonic HCV770 Camcorder for Live Streaming. After extensive testing, new cables, trying everything under the sun for a intermittent freezing problem. We replaced the card with this Magewell. The results were immediate, no freezing what so ever and the picture was outstanding at 1920 x 1080 60p. We are sold on Magewell.

Easy to Install and It Works!

By JOHN B.

I'd tried BlackMagic and AJA adapters and neither worked right. The AJA would freeze the video after 15 minutes or so - I think it was getting too hot. I installed this Magewell card in the PC and after loading the drivers, it popped right and I haven't had any problems at all.

• PCIe 2.0
• Capture 2k x 2k
• Compatible with Windows
• Compatible with Linux
• Compatible with Mac OS X
• Up/down Scaling
• Deinterlacing
• Multiple Streaming
• Automatically Detecting Input Signal
• High-fidelity Video Processing Pipeline
• Image Control
• Various Output Color Spaces
• SG-DMA Transmission Mode
• Multiple Devices on One Host
• Hardware Time Stamp
• Mounting Hole
• Rotary Switch
• High-speed Memory
• LED Indicator
• Firmware Upgrade
• Common Driver
• Continuously Work for 24h x7

Captures One of the Following
• DVI + audio
• VGA + audio
• Component + audio
• HDMI + embedded audio

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell Pro Capture SDI One Channel HD Capture Card
  • Low Profile Bracket
  • DVI2VGA Connector
  • DVI-I to HDMI + Component Breakout Cable
  • Magewell 1 Year Limited Warranty
