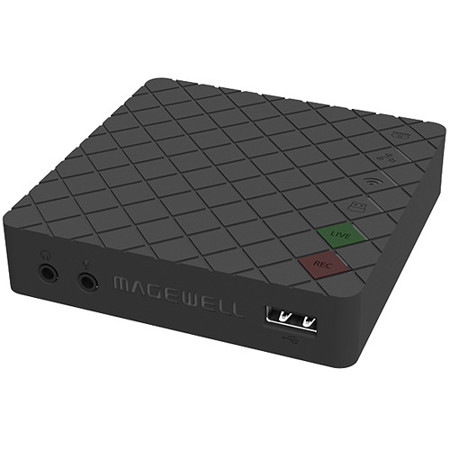

Magewell Ultra Stream HDMI Single-Channel HD Streaming Encoder
See all Magewell items

Magewell Ultra Stream HDMI Single-Channel HD Streaming Encoder

SKU: MA53010

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Can I stream to Livestream?
Shopper : Why Did You Choose This?JIM K : Need to stream in isolated locations with no wifi at times.CHARLES P : Simple streaming out of an existing switcher.CHRIS A : To my knowledge, this is the least expensive option for streaming to 2 platforms at once, while recording to internal storage or a thumb drive at the same time. Seems like a great product if it lives up to what it advertises.ARMSTRONG N : I bought 1 already and like it

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Magewell Ultra Stream HDMI Specifications

  • Supported Mobile Clients

    Android: Android 5.0 and above
    iOS: iOS 9.0 and above
    iPhone: iPhone 5s, iPhone SE, iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus, iPhone 7 / iPhone 7 Plus, iPhone 8 / iPhone 8 Plus, iPhone X
    iPod Touch: iPod Touch 5, iPod Touch 6

  • Input Interfaces

    HDMI: HDMI 1.4a
    3.5mm audio jack: Microphone interface

  • Output Interfaces

    HDMI: HDMI loop-through
    USB: USB 2.0
    3.5mm audio jack: Headphone interface

  • Network Interfaces

    Wired Ethernet: 10/100/1000Mbps Ethernet
    Wi-Fi: IEEE 802.11 a/b/g/n/ac

  • Bluetooth

    Bluetooth 4.0 BLE

  • HDMI Specific Features

    Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loopthrough signals
    Support for 8/10/12-bit color depths
    Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats

  • Analog Audio Features

    Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
    Recording and streaming analog audio via 3.5 mm microphone interface

  • Streaming Features

    Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
    Streaming to Facebook, Twitch and YouTube platforms
    Support for streaming to 2 servers simultaneously

  • Recording Features

    To USB Flash Drive:
    Support for H.264 High Profile (video) and AAC High Quality (audio) encoding
    Supports recording at input signal resolution up to 2048x1080
    Support for 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1200x900, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 480x360 resolutions

  • Recording Features (Cont.)

    Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates
    Support for recording as MP4 files
    USB Flash Drive file system format: FAT32, NTFS, exFAT, VFAT

    To Mobile Device:
    Support for recording at up to 1280x720, 30fps
    Support for recording as MP4 files
    Taking still image snapshots during recording
    Save recording files and screenshots to system album
    Input signal previewing
    Timer recording: 15s, 30s, 1min, 2min, 5min

  • Remote Control Features in App

    Remotely control recording and streaming
    Remotely check device status
    Support for setting volume, network, recording and live streaming parameters
    Support for checking and safely updating device firmware (can also reset to previous firmware version)
    Simultaneous main stream and sub stream encoding with customizable parameters
    The bitrate for main stream is up to 4 Mbps while for sub stream is 1 Mbps
    In-app online help

  • LED Indicator

    Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
    Indicates the working state of the device: startup, recording, streaming, update

  • Power Supply and Consumption

    Power port
    5V/2A
    Max power consumption: (Approx.) 6.0 W

  • Operating temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Relative humidity

    5% to 90% non-condensing

  • Dimensions

    94.20 x 94.20 x 28.50mm (3.71 x 3.71 x 1.12")

  • UPC Code

    8143950201102

About Magewell Ultra Stream HDMI

Ultra Stream HDMI
Single-Channel HD Streaming Encoder. Making live streaming remarkably easy for everyone.

Easy to Use
• Stand-alone device; no computer needed
• Control via on-device buttons or intuitive Android/iPhone smartphone app
• LED indicators display status

Live Stream to Platforms of Your Choice
• Encode and stream at up to 1080p60
• Stream to YouTube, Twitch and Facebook Live with one click
• Stream to a custom RTMP server

Record High-quality Video for Storage and Sharing
• Preview, record & stream simultaneously
• Record to MP4 files at up to 1080p60
• H.264 video encoding with AAC audio
• Save to mobile phone or to a connected USB flash

Different Formats for Streaming and Recording
Set different resolutions, frame rates and bit rates for streaming and recording simultaneously. Eg. 720p30 for streaming and 1080p60 for recording.

Support 4K Input & Loop-through
• Supports inputs up to 4096x2160p60 (4:2:0)
• Loop-through at 4K for displays

Add your Narration; Monitor your Audio
• Connect a microphone via analog audio input
• Monitor HDMI and microphone

Wired & Wireless
The Ultra Stream HDMI can be connected to the Internet via Ethernet or Wi-Fi.

One-click Firmware Update
Check whether a newer firmware version is available
• Click "update" to start the automatic firmware update

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell Ultra Stream HDMI Single-Channel HD Streaming Encoder
  • Power Supply
  • Magewell 2 Year Warranty
