Kit Savings

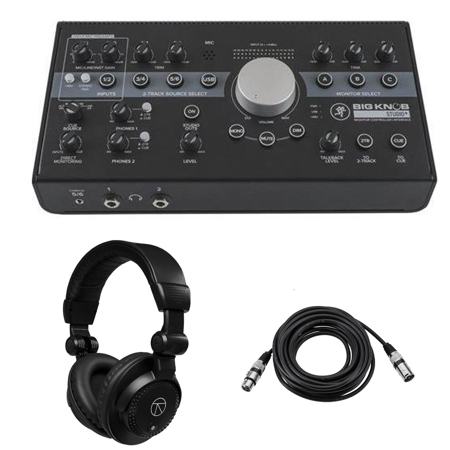

Mackie Big Knob Studio+ 4x3 Monitor Controller and Interface, Bundle with TAPH100 Closed-Back Studio Monitor Headphones and 15' Value Series XLR M to F Professional Microphone Cable

SKU: MABIGKNOBSTB MFR: BIG KNOB STUDIO+ B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Mackie Big Knob Studio+ 4x3 Monitor Controller & Interface with Software Bundle
    Mackie Big Knob Studio+ 4x3 Monitor Controller & Interface with Software Bundle
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 15'
    H&A Value Series XLR M to F Professional Microphone Cable - 15'
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Achieve pristine sound quality with 24-bit/192kHz resolution for professional studio recording.
  • Seamlessly manage multiple audio sources using the durable 4x3 monitor controller and interface.
  • Enjoy low-latency performance for real-time tracking and mixing with this reliable recording interface.
  • Simplify your setup with easy-to-use controls, perfect for any home or professional studio.
  • Enhance your workflow with included Waveform OEM and DAW Essentials Collection software.
  • Connect effortlessly with two dedicated headphone outputs and versatile USB I/O for studio use.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Mackie Big Knob Studio+ Specifications

  • Inputs

    2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Inputs
    4x 1/4" TRS Balanced/Unbalanced Line Inputs
    2x 1/4" TRS Balanced/Unbalanced Cue Input
    1x 1/8" (3.5mm) TRS Unbalanced Stereo Input
    1x 3-Pin XLR Talkback Mic Input

  • Outputs

    2x 1/4" TRS Balanced/Unbalanced 2-Track Line Outputs
    6x 1/4" TRS Balanced/Unbalanced Monitor Outputs
    2x 1/4" TRS Balanced/Unbalanced Monitor/Line Outputs
    2x 1/4" TRS Unbalanced Headphone Outputs

  • Footswitch Input

    1x 1/4" TRS

  • USB I/O

    1x USB 2.0 Type-B

  • Resolution

    24-Bit / 192 kHz

  • Frequency Response

    20Hz to 20 kHz ( +/-0.5 dB, Unity Gain, +4 dBu Input)

  • Noise

    Mic Inputs to Outputs: < -125 dBu RMS, A-Weighted (150 Ohms Terminated, 22 kHz Bandwidth)
    Line Inputs to Outputs: < -90 dBu RMS, Unweighted (150 Ohms Terminated, 22 kHz Bandwidth)

  • THD + N

    <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)

  • Crosstalk

    < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)

  • Attenuation

    Muted: -60 dB
    Dim: -20 dB

  • Maximum Input Level

    +22 dBu

  • Maximum Output Level

    +22 dBu

  • Power Requirements

    100 to 240 VAC, 50/60 Hz, 0.75 A via Universal Power Supply

  • Dimensions

    6.8 x 11.9 x 3.2" (17.3 x 30.2 x 8.1cm)

  • Weight

    4.6 lbs (2.1kg)

  • UPC Codes

    192223276277, 192223075481, 663961061659, 192223227576

About Mackie Big Knob Studio+

The Mackie Big Knob Studio+ is the centerpiece in project studios, live broadcast setups, pro studios and more. With easy input and monitor switching, award-winning Onyx mic preamps, high-resolution USB recording and playback, and a dedicated amp-driven output for additional headphones, this Big Knob goes to eleven.

The Biggest Knob
When you're looking to level up your recording studio, reach for the Mackie Big Knob Studio+. With a built-in 192kHz / 24-bit recording interface, dual Mackie Onyx preamps and flexible talkback options, the Mackie Big Knob Studio+ is an all-in-one desktop interface and monitor control solution that'll supercharge your workflow with industry-leading Mackie performance.

Waveform OEM DAW
Waveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical 'Lite' versions, it does not impose any restrictions - you get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS , Windows, and Linux operating systems.

DAW Essentials Collection
Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plug-ins to be used liberally across a wide range of native computer systems.

Equalizer, Compressor, Reverber8, Delay Studio, Stereo Delay, Tape Delay, Crossover, Limiter, Gate / Expander, Ducker, Flanger, Crusher, Chorus, Bus Compressor, Phaser, and Auto Filter.

Mackie Big Knob Studio+ Features

  • Choose between 4 sources and 3 monitor pairs
  • Classic Big Knob volume control
  • Independent trim on all sources and monitor outs
  • Mono, mute and dim functions
  • Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
  • High-resolution 192kHz / 24-bit recording and playback
  • Cue mix allows controlled blending of direct inputs with other signals for zero-latency recording
  • Choice of recording paths provide flexibility for applications like podcasting
  • Flexible source connections including convenient front panel 1/8" input for your smartphone
  • Dual headphone outs with independent level control and both USB and Aux source options
  • Flexible talkback options including external mic input and footswitch control
  • Dedicated amp-driven studio output perfect for headphone distribution system
  • 16-segment high-resolution input source metering

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine sound quality with 24-bit/192kHz resolution for professional studio recording.
  • Seamlessly manage multiple audio sources using the durable 4x3 monitor controller and interface.
  • Enjoy low-latency performance for real-time tracking and mixing with this reliable recording interface.
  • Simplify your setup with easy-to-use controls, perfect for any home or professional studio.
  • Enhance your workflow with included Waveform OEM and DAW Essentials Collection software.
  • Connect effortlessly with two dedicated headphone outputs and versatile USB I/O for studio use.

What's in the box:

  • Mackie Big Knob Studio+ 4x3 Monitor Controller and Interface
  • Waveform OEM
  • DAW Essentials Collection (16 FX Plug-ins)
  • Mackie 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • H&A 15' Value Series XLR M to F Professional Microphone Cable
