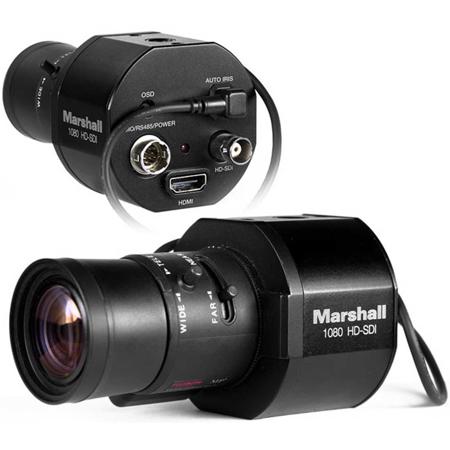

Marshall Electronics CV345-CSB 1/3" 2.5MP Full HD 3G-SDI/HDMI Broadcast Camera
See all Marshall Electronics items

Marshall Electronics CV345-CSB 1/3" 2.5MP Full HD 3G-SDI/HDMI Compact Broadcast Compatible Camera, 1920x1080 at 59.94fps, Lens Not Included

SKU: MACV345CSB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Marshall Electronics CV504-WP: Picture 1 regular
Marshall Electronics CV504-WP 2.2MP FHD All-Weather 3G-SDI POV Camera w/4mm Lens
$606.95$601.95
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Marshall Electronics CV345-CSB Specifications

  • Image Sensor

    1/3" Progressive CMOS (Approx. 2.1 Mega)

  • Scanning System

    16:9 Progressive

  • Sync. System

    Internal

  • Effective Pixel

    1920(H) x 1080(V)

  • Min. Illumination

    0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)

  • Horizontal Resolution

    1000TVL

  • Lens

    CS/C mount with DC-Auto Iris - variable lens options

  • Back Light Compensation

    WDR (Wide Dynamic Range) / BLC (Back Light Compensation), HLC (High Light Compensation)

  • Exposure

    Auto / Manual

  • White Balance

    Auto (3000 to 8000 deg. K) / ATW(1900 to 11000 deg. K) / Manual

  • Day & Night System

    AGC (Auto Gain Control) / TDN(ICR)

  • Electronic Shutter

    NTSC: 1/30 to 1/30000
    PAL: 1/25 to 1/30000, DSS( Aprox. X64)

  • Functions

    Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
    Motion Detection, DSS (Digital Shutter Speed)

  • Video Outputs: 3G-SDI (+optional Audio)

    SMPTE 424M(2.97Gbps): 1920 x 1080p at 59.94fps

  • Video Outputs: HD-SDI (+optional Audio)

    SMPTE 292M(1.485Gbps): 1920 x 1080p at 29.97fps
    1920 x 1080i at 59.94fps
    1280 x 720p at 59.94/29.97fps

  • HDMI(+Audio) Output (HDMI type A female)

    HDMI 1.3 compliant
    1920x1080p at 59.94fps
    1920 x 1080p at 29.97
    1920 x 1080i at 59.94
    1280 x 720p at 59.94/29.97

  • Mic Input

    Mic Level (1Vrms). 2.5V Mic bias
    16, 20, 24, 32 Bits Audio Format. 48KHz Sample Rates
    Gain: -12dB to 59.5dB

  • Control Interface: RS-485

    PELCO-P/D, SONY-VISCA Protocol
    8 Bits Data, 1 Stop Bit, No Parity, 2400 to 115200bps

  • Operation Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Power Input

    12V DC (7V to 15VDC)

  • Power Consumption

    Max 6W

  • Certifications

    CE, FCC, RoHS, KCE

  • Applications

    Broadcast Television
    Professional Sports
    College Sports
    OB Vans/Trucks
    Concert & Studio Music Video
    Reality TV
    Performing Arts
    Culinary Shows
    Car TV Shows
    Hidden Camera Shows
    International Racing Circuits
    Off-road Racing
    Horse Racing
    House of Worship
    POV Video Shots

  • Dimensions (W x H x D)

    60 x 57 x 45mm / 2.36 x 2.24 x 1.77"

  • Weight

    160g / 5.64oz (Approx.)

  • UPC Code

    801813179095

0 Accessories for Marshall Electronics CV345-CSB 1/3" 2.5MP Full HD 3G-SDI/HDMI Compact Broadcast Compatible Camera, 1920x1080 at 59.94fps, Lens Not Included

About Marshall Electronics CV345-CSB

Marshall Electronics next generation Miniature Compact CV345 HD Pro-Series Cameras add the convenience of a 3.5mm TRS input (audio embedding) with 2.5V power to microphone and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

Marshall Electronics CV345-CSB Features

  • 2.5 Megapixel 1/3" CMOS sensor
  • CS Mount with DC-Auto Iris (lens sold separately)
  • 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector & TRS microphone input with 2.5V power supplied
  • 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into rear panel
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to various light sources
  • Audio Mic 3.5mm TRS input embedding w/ 2.5V power (embeds on 3G/HDSDI & HDMI)
  • OSD Menu Joystick, RS-485 (Pelco/Visca), Free Downloadable Software Control
  • Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma and Shutter adjust

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics CV345-CSB 1/3" 2.5MP Full HD 3G-SDI/HDMI Compact Broadcast Compatible Camera
  • Breakout Cable
  • Marshall Electronics 1 Year Limited Warranty
