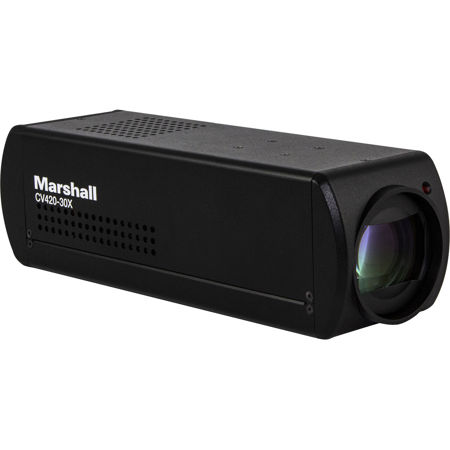

Marshall Electronics CV420-30X 8.5MP 4K Ultra HD 12G-SDI/HDMI/IP 30x Box Camera

SKU: MACV42030X

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What kind of sensor does the CV420-30X 8.5MP 4K Ultra HD 12G-SDI/HDMI/IP 30x Box Camera use?

The CV420-30X uses a professional grade 8.5 Megapixel Sony sensor to capture high-quality images and videos.

What are the connectivity options for the CV420-30X camera?

The CV420-30X camera offers multiple output interfaces, including 12GSDI, HDMI, and IP (HEVC/SRT), providing flexibility for a wide range of applications.

How does the one-cable-to-camera setup work for the CV420-30X camera?

The one-cable-to-camera setup uses a single Ethernet (CAT) cable to carry power (PoE), video, audio, tally, and control over IP, simplifying the setup process and reducing clutter.

What is the zoom range of the CV420-30X camera?

The CV420-30X camera features an ultra-long 30x optical zoom range from 4.6mm to 135mm, maintaining image clarity from ultra-wide to ultra-long telephoto shots.

Is the CV420-30X camera suitable for low-light conditions?

Yes, the CV420-30X camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV420-30X Specifications

  • Sensor

    1/2.5" 8.5MP CMOS

  • Resolution

    3840 x 2160p at 59.94/50/29.97 fps
    1080p at 59.94/50/29.97/25 fps
    720p at 59.94/50/29.97/25 fps

  • Optical Zoom

    30x

  • Digital Zoom

    12x

  • Angle of View

    Horizontal: 68 Degree

  • Tally Light

    Yes

  • Connections

    1x HDMI 2.0 Output
    1x 12G-SDI Output
    1x 3.5 mm Stereo/Mono Audio Input
    1x 3.5 mm Stereo/Mono Audio Output
    1x 8-Pin Mini Din RS-232 Input
    1x 8-Pin Mini Din RS-232 Output
    1x RJ45 Input/Output (NDI, Video, Control, Audio, PoE)

  • Control Interface

    RS-232 and IP

  • Day & Night Control

    Auto, Color, Black/White

  • Iris Control

    Auto or Manual

  • White Balance

    Auto, ATW, Manual, Indoor, Outdoor, One-Push WB, Sodium Lamp

  • Focus

    Auto/Manual

  • Optical Zoom Lens

    4.6 to 135mm

  • Gamma Correction

    Yes

  • Sharpness

    Configurable

  • Noise Reduction

    2D/3D

  • Dynamic Range

    WDR

  • Video Orientation

    Off, Flip, Mirror, Flip/Mirror

  • Video Standard

    HEVC/H.265/H.264 with SRT

  • Streams

    Triple Stream: HEVC UHD 4K/1080p/720p + H.264 1080p/720p + H.264 640 x 360

  • Audio Compression

    AAC, G.711

  • Protocols

    SRT, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, MPEG-TS, RTMP, and RTMPS

  • Power Input

    12 VDC Barrel

  • PoE

    Yes

  • Mounting

    1x 1/4"-20 Threads

  • Dimensions

    8.9 x 2.6 x 2.6" (22.57 x 6.7 x 6.7cm)

About Marshall Electronics CV420-30X

Why settle for less when you can have the best with the CV420-30X 8.5MP 4K Ultra HD 12G-SDI/HDMI/IP 30x Box Camera This high-performance camera boasts a 30X optical zoom and utilizes a top-tier 8.5 Megapixel Sony sensor, delivering sharp and clear 4K Ultra HD video. With a resolution of up to 3840x2160p at 60fps, every detail is captured with precision.

The CV420-30X stands out with its multiple output interfaces, including 12GSDI, HDMI, and IP (HEVC/SRT), offering flexibility and convenience for a wide range of broadcast and professional A/V applications. Its straightforward design and user-friendly interface make it a valuable asset for professionals in various fields.

This camera offers the unique advantage of a one-cable-to-camera setup. This feature uses a single Ethernet (CAT) cable to carry power (PoE), video, audio, tally, and control over IP, simplifying the setup process and reducing clutter.

The ultra-long 30x optical zoom range is another highlight of the CV420-30X. With a range from 4.6mm to 135mm, this camera maintains image clarity from ultra-wide to ultra-long telephoto shots. The 12GSDI + IP (Ethernet) workflow flexibility further enhances its versatility, supporting multiple protocols including HEVC and SRT (4K60).

The CV420-30X is designed to perform exceptionally well in low-light conditions, ensuring a clear picture in challenging lighting environments. Whether it's live events, houses of worship, indoor or outdoor sporting events, this camera delivers superior image quality.

The CV420-30X is ideal for networked UHD and HD workflows where image quality and versatility are paramount. From live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, to houses of worship, this camera is designed to meet the demands of a wide range of applications.

Marshall Electronics CV420-30X Features

  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6-135mm) - 68 Degree AOV
  • 3840x2160p up to 60fps, 1920x1080p, 1080i & 720p ,4K (UHD) Resolution
  • 12G-SDI (BNC), HDMI and IP Triple Stream (HEVC/H.265/H.264) with SRT (4K60)
  • Ethernet I/O supports video, audio, control, tally and PoE over one-cable
  • VMS, Software GUI, Joysticks (IP or RS232), Plugins, Docks Control Options
  • RS232 and 3.5mm audio (stereo) IN/OUT with passthrough
  • 17W (DC) and 19W (PoE) Power Draw

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • High-performance 8.5MP 4K Ultra HD 12G-SDI/HDMI/IP 30x Box Camera
  • Equipped with a professional grade 8.5 Megapixel Sony sensor for crisp imaging
  • Multi-output interfaces including 12GSDI, HDMI, and IP (HEVC/SRT) for versatile connectivity
  • One-cable-to-camera setup using Ethernet (CAT) cable for simplified operation
  • Exceptional low-light sensitivity for clear imaging in challenging lighting conditions
  • Ideal for networked UHD and HD workflows in various professional fields

What's in the box:

  • Marshall Electronics CV420-30X 8.5MP 4K Ultra HD 12G-SDI/HDMI/IP 30x Box Camera
  • Power Adapter
  • Power Cord
  • Marshall Electronics 2 Year Limited Warranty
