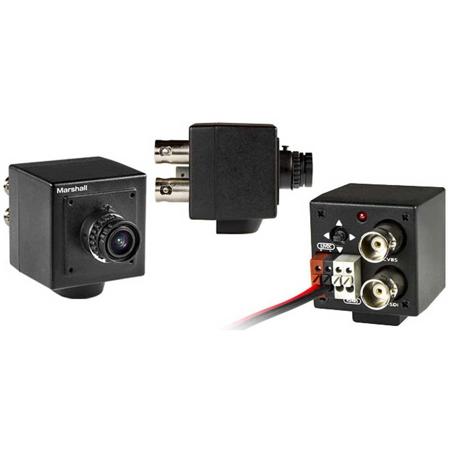

Marshall Electronics CV502-MB 1/3" 2.5MP Full HD 3G/HD-SDI/Composite Compact Broadcast Compatible Camera with Interchangeable 3.7mm Lens, 1920x1080, 59.94fps, Power Pigtail Cable, NTSC and PAL System

SKU: MACV502MB

This item is no longer available.

Recommended Alternatives

Marshall Electronics CV228: Picture 1 regular
Marshall Electronics CV228 2.5MP FHD Weatherproof 3G/HD-SDI HD Lipstick Camera
$494.99$439.99
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Timothy V : Looks cool and tiny!Don H : Very nice camera

Reviews about this item

Review Summary

Marshall Electronics CV502-MB Specifications

  • Image Sensor

    1/3" Progressive CMOS (Approx. 2.1 mega)

  • Scanning System

    16:9 Progressive

  • Sync. System

    Internal

  • Effective Pixel

    1920(H) x 1080(V)

  • Min. Illumination

    0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux(DSS on)

  • Horizontal Resolution

    1000TVL

  • Lens

    3.7mm (M12 mount) - interchangeable Fixed HD lens

  • Back Light Compensation

    WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)

  • Exposure

    Auto / Manual

  • White Balance

    Auto (3000 to 8000 deg. K) / ATW (1900 to 11000 deg. K) / Manual

  • Day & Night System

    AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)

  • Electronic Shutter

    NTSC: 1/30 to 1/30000
    PAL: 1/25 to 1/30000, DSS( approx.X64)

  • Functions

    Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
    Motion Detection, DSS (Digital Shutter Speed)

  • Video Outputs: 3G-SDI (+optional Audio)

    SMPTE 424M(2.97Gbps): 1920 x 1080p at 59.94fps

  • Video Outputs: HD-SDI (+optional Audio)

    SMPTE 292M(1.485Gbps): 1920 x 1080p at 29.97fps
    1920 x 1080i at 59.94fps
    1280 x 720p at 59.94/29.97fps

  • Video Outputs: CVBS (BNC)

    Composite-CVBS (BNC): 700TVL NTSC/PAL

  • MIC Input

    Mic Level (1Vrms). 2.5V Mic bias
    16, 20, 24, 32 bits audio format. 48KHz sample rates
    Gain: -12dB to 59.5dB

  • Control Interface: RS-485

    PELCO-P/D, SONY-VISCA protocol
    8 bits data, 1 stop bit, no parity, 2400approx.115200bps

  • Operation Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Power Input

    12V DC (7V to 15VDC)

  • Power consumption

    Max 6W

  • Certifications

    CE, FCC, RoHS, KCE

  • Applications

    Broadcast Television
    Professional Sports
    College Sports
    OB Vans/Trucks
    Concert & Studio Music Video
    Reality TV
    Performing Arts
    Culinary Shows
    Car TV Shows
    Hidden Camera Shows
    International Racing Circuits
    Off-road Racing
    Horse Racing
    House of Worship
    POV Video Shots

  • Dimensions (W x H x D)

    37 x 37 x 35mm / 1.46 x 1.46 x 1.38"

  • Weight

    140g / 4.94oz (Approx.)

  • UPC Code

    801813179255

About Marshall Electronics CV502-MB

Marshall Electronics 3rd Generation CV502-MB improves on all aspects of video performance. Utilizing a new state of the art 1/2.8-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux.

Industry leading low power consumption draws very low power in full 1920x1080p60/59.94fps modes. New CV502-MB Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Marshall Electronics CV502-MB Features

  • 2.5 Megapixel 1/3" CMOS sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel)
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to various light sources
  • OSD Menu Joystick, RS-485 connectable(Pelco/Visca), Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma and Shutter adjust

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel)
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to various light sources

What's in the box:

  • Marshall Electronics CV502-MB 1/3" 2.5MP Full HD 3G/HD-SDI/Composite Compact Broadcast Compatible Camera
  • Power Pigtail
  • RS-485 Cable and Bracket
  • 3.7mm Lens
  • Marshall Electronics 1 Year Limited Warranty
