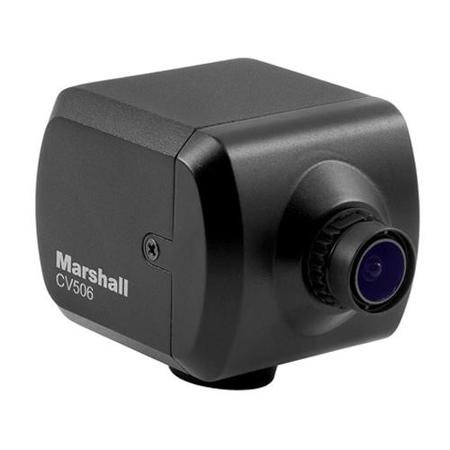

Marshall Electronics CV506 Full HD Miniature Camera with M12 Mount and Interchangeable 3.6mm Lens (72 AOV), 1920x1080p at 60 fps, 3G/HD-SDI & HDMI Output

Overcome surveillance challenges with the Marshall CV506 Full-HD Miniature Camera, a high-quality, compact, and versatile solution designed for a variety of applications. This innovative camera is equipped with HDMI and offers superior performance in a remarkably small form factor, making it a durable choice for professional use.

At the heart of the CV506 is a next-generation 2.5-Megapixel, 1/2.86-inch sensor, capable of delivering ultra-crisp, clear progressive Full-HD video. With a resolution of up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps, this camera ensures high-definition image and video capture for detailed and accurate surveillance.

The CV506 is designed with full-sized BNC (3G/HDSDI) and HDMI outputs on the rear panel, along with a locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). This ensures a secure and reliable connection for uninterrupted operation.

One of the standout features of the CV506 is its threaded M12 lens mount, which offers a wide range of prime and varifocal lens options. This interchangeable lens feature enhances its versatility, allowing users to adapt to different surveillance needs without compromising on convenience or image quality.

Remote adjustment and picture settings commands can be delivered via common RS485 (Visca) or an OSD menu joystick on a locking breakout cable. This camera also offers a wide range of adjustable picture settings from a distance, including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

The CV506 is not just a camera; it's a comprehensive surveillance solution suitable for Full-HD broadcast and Pro AV workflows. Whether it's for live broadcast productions, sportscasts, newscasts, reality television, concerts, corporate, government, courtroom, or house of worship settings, the CV506 delivers exceptional performance every time.
