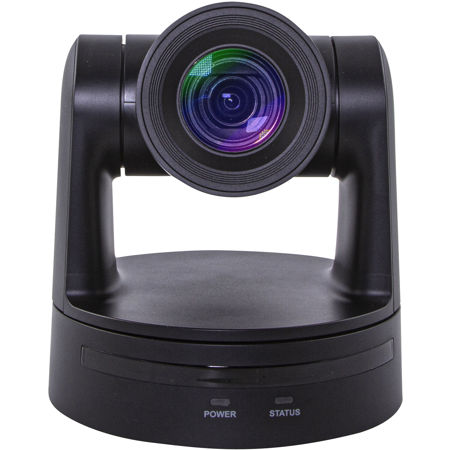

Marshall Electronics CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera, Black

SKU: MACV605U3

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera?

The CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera captures video at a high-definition resolution of 1920x1080p at 60fps.

What platforms is the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera compatible with?

The CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera is compatible with OBS Studio and is certified by Zoom, making it suitable for a wide range of video conferencing and live streaming applications.

Does the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera have a zoom feature?

Yes, the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera features a 5x optical zoom, which allows for detailed capture of distant objects without losing image quality.

What is the one-cable-to-camera feature in the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera?

The one-cable-to-camera feature in the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera allows for a simplified setup, providing video, audio, control, and power (PoE) over one cable with IP and HDMI simultaneous outputs.

What is the benefit of the privacy standby mode in the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera?

The privacy standby mode in the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera provides privacy between video calls, ensuring the protection of intellectual properties and proprietary information when not in video meetings.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV605-U3 Specifications

Camera
  • Color

    Black

  • Optical Zoom

    5x, f=3.1-15.5mm

  • Sensor

    1/2.8-inch-high quality HD CMOS sensor

  • Effective Pixels Video Format

    USB
    YUY2, NV12: 640x480/320x180/480x270/640x360/800x448/800x600/1024x576/1280x720/1920x1080

    MJPEG, H.264: 640x480/320x240/352x288/480x270/640x360/720x480/720x576/800x448/800x600/960x540/1024x576/1280x720/1600x896/1920x1080

    HDMI: 1080P 60/59.94/50/30/29.97/25
    720P 60/59.94/50

  • Viewing Angle

    16.43 Degree (tele)--83.7 Degree (wide)

  • Digital Zoom

    10x Additional

  • Minimum Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3D DNR

  • White Balance

    Auto / Manual/ One Push/ VAR

  • Focus

    Auto/Manual/One Push

  • Iris

    Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8

  • Electronic Shutter

    Auto/Manual

  • BLC

    ON/OFF

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >55dB

Input/ Output Interface

Jump to...
  • Video Interfaces

    USB3.0 Type-C, HDMI, LAN

  • Video Compression Format

    H.264, YUV2, NV12, MJPEG

  • Audio Input Interface

    Two-channel 3.5mm (Line and Mic level)

  • Audio Outputs

    USB3.0, HDMI, LAN output together with video

  • Audio Compression Format

    AAC/MP3/G.711A

  • IP Interface

    100M IP port(100BASE-TX)

  • Network Protocol

    RTSP/RTMP, ONVIF; Support IP Visca control protoco

  • Control Interface

    RS232

  • Control Protocol

    VISCA/Pelco-D/Pelco-P
    Baud Rate: 115200/38400/9600/4800/2400

  • Power Interface

    HEC3800 outlet (DC12V)

  • Supply Adapter

    AC110V-AC220V to DC12V/1.5A

  • Input Voltage

    DC12V +/-10%

  • Input Current

    1A(Max)

  • Consumption

    12W (Max)

  • Rotation

    Pan: +/-135 Degree
    Tilt: -30 Degree -+30 Degree

  • Control Speed

    Pan: 0.1 -60 Degree /sec
    Tilt: 0.1-30 Degree /sec

  • Preset Speed Pan

    60 Degree /sec, Tilt: 30 Degree /sec

  • Preset Number

    255 presets (10 presets by remote controller)

General

Jump to...
  • Temperature

    Store: -10 Degree C-+60 Degree C (14 Degree F - 140 Degree F)
    Working: -10 Degree C-+50 Degree C (14 Degree F - 122 Degree F)

  • Humidity

    Store: 20% - 95%
    Working: 20% - 80%

  • Using Environment

    Indoor

  • Dimensions

    5.72 x 5.78 x 6.06" (145.4 x 147 x 154mm)

  • Weight

    2.84 lbs (1.29kg)

  • UPC Code

    801813225235

About Marshall Electronics CV605-U3

Are you in search of a high-quality, advanced camera that can meet your professional needs Look no further than the CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera. This innovative and durable camera is designed with a professional-grade 2 Megapixel sensor that captures crisp, high-definition video at a resolution of 1920x1080p at 60fps.

The CV605-U3 camera stands out with its 5x optical zoom, starting from a wide-angle 85-degree view and extending up to a detailed close-up without losing image quality. This feature is particularly useful for surveillance, remote monitoring, and live events where capturing distant objects is crucial.

This camera offers multiple output options, including HDMI, USB-C, and IP (H.265/H.264), providing flexibility for a wide range of video conference, video streaming, and professional A/V applications. The CV605-U3 can be easily set up with one Ethernet (CAT) cable, carrying video, audio, power (PoE), and control over IP.

The CV605-U3 is also compatible with popular platforms like OBS Studio and is certified by Zoom, making it an excellent choice for video conferencing and live streaming. Its low-light sensitivity ensures a clear picture in variable and challenging lighting conditions, making it a reliable choice for video conferences, live streaming, live podcasts, and other applications with challenging light sources.

One of the standout features of the CV605-U3 is its one-cable-to-camera setup, which provides video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding. This camera also includes a privacy standby mode for privacy between video calls, ensuring the protection of intellectual properties and proprietary information when not in video meetings.

The CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera is suitable for a variety of applications, including video conference, video collaboration, live streaming, courtroom capture, corporate video, government assembly, and more. Its high-quality, advanced features make it a top choice for professionals in need of a reliable, versatile camera.

Marshall Electronics CV605-U3 Features

  • 2 Megapixel (1/2.8") Full-HD sensor
  • 5x Optical Zoom (3-15mm) - starting at 85 Degree AOV
  • Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p
  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
  • USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45
  • Ethernet IP supports video, audio, control, and PoE over one Cat cable
  • Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200 (RS232) & VS-PTC-IP (IP/RS232)
  • 3.5mm audio linear input (AAC, MP3, G.711A compression)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning Full HD video with the CV605-U3 PTZ camera, perfect for detailed visuals.
  • Experience versatile connectivity with USB-C, HDMI, and IP interfaces for seamless integration.
  • Achieve smooth, precise camera movements with 5x optical zoom and PTZ control for any setting.
  • Enjoy exceptional low-light performance, ensuring clear video even in dimly lit environments.
  • Use this PTZ camera for live streaming, video conferencing, and broadcasting with ease.
  • Remotely control pan, tilt, and zoom functions, making it ideal for remote monitoring applications.

What's in the box:

  • Marshall Electronics CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera (Black)
  • Power Adapter
  • IR Remote
  • USB3.0 Type-C Cable
  • Marshall Electronics 2 Year Limited Warranty
