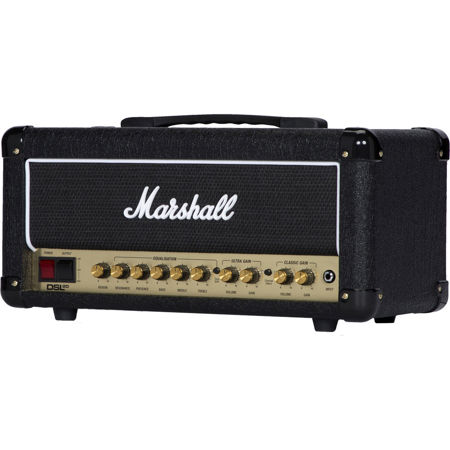

Marshall DSL20HR 2-Channel 20W Valve Amplifier Head with Reverb

SKU: MAMDSL20HRU

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-09-01T08:40:45

Rated 5 out of 5

Completed my collection

Very versatile amp

DENNIS S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall DSL20HR Specifications

Amplifier Section

Amplifier Section

Jump to...
  • Amplifier Type

    Tube

  • Output Power

    20 W RMS

  • Channels

    2

  • Tube Types

    3x Preamp 12AX7/ECC83
    2x Power EL34/6CA7

  • Output Impedance

    16 ohms Mono
    16/8 ohms Mono

  • Effects Loop

    Yes, Series

  • Built-In Effects

    Digital Reverb

  • Master Volume

    No

  • Inputs

    1x 1/4" Mono Instrument
    1x 1/4" Mono Effects Return
    1x 1/4" Stereo Footswitch
    1x 1/8" Stereo Aux

  • Outputs

    1x 1/4" Mono Effects Send
    3x 1/4" Mono Speaker
    1x 1/8" Mono Emulated Speaker

  • Tone Section

    Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Tone, Treble
    Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Resonance, Treble

  • Controls

    Reverb, resonance, presence, bass, middle, treble, tone shift switch, ultra gain channel (volume, gain), channel select switch, classic gain channel (volume, gain), power reduction option (on rear)

General

Jump to...
  • Dimensions (WxHxD)

    19.7 x 9.8 x 9.4" (500.38 x 248.92 x 238.76mm) (Including Feet and Handle)

  • Weight

    21 lbs (9.53kg) (Including Feet and Handle)

  • UPC Code

    5030463472798

About Marshall DSL20HR

FEATURED REVIEWS

Completed my collection

By DENNIS S.

Very versatile amp

Because the DSL20HR 2-Channel 20W Valve Amplifier Head with Reverb is a powerful and high-quality audio equipment, it's the perfect choice for musicians seeking the full, rich tone of a valve amp in a compact and portable format. From the moment you plug in your guitar, this professional-grade amplifier head from Marshall provides you with the versatile functionality you need to confidently take your sound from rehearsal to the recording studio.

With its multiple channels, built-in reverb, FX loop, and tone shift controls, the DSL20HR allows you to customize and adapt your sound to suit your unique musical style. The three speaker outlets offer a range of options, including a standby function for silent recording, making this amplifier head an ideal choice for both live gigs and studio recording.

The DSL20HR also features a variable output, allowing you to reduce power from 20W to 10W. This makes it an excellent choice for playing in smaller venues or in the studio, where lower volume levels are often required.

In addition, the presence and resonance controls on this durable amplifier head can add more bite and depth to your sound, emphasizing your EQ and allowing you to fine-tune your tone to perfection. Experience the warm, rich sound of a tube amplifier with the DSL20HR 2-Channel 20W Valve Amplifier Head with Reverb.

Marshall DSL20HR Features

  • Powerful and high-quality 2-channel 20W valve amplifier head with built-in reverb
  • Offers multiple channels, FX loop, and tone shift controls for versatile sound customization
  • Features three speaker outlets with a standby function for silent recording
  • Variable output allows power reduction from 20W to 10W, ideal for smaller venues or studio use
  • Equipped with presence and resonance controls for enhanced EQ and sound depth
  • Compact and portable design, perfect for both live performances and studio recording

Key Features

  • Powerful and high-quality 2-channel 20W valve amplifier head with built-in reverb
  • Offers multiple channels, FX loop, and tone shift controls for versatile sound customization
  • Features three speaker outlets with a standby function for silent recording
  • Variable output allows power reduction from 20W to 10W, ideal for smaller venues or studio use
  • Equipped with presence and resonance controls for enhanced EQ and sound depth
  • Compact and portable design, perfect for both live performances and studio recording

What's in the box:

  • Marshall DSL20HR 2-Channel 20W Valve Amplifier Head
  • PEDL-90012 Footswitch
  • Power Cable
  • Marshall 5 Year Parts and 3 Year Labor & Speaker Limited Warranty (90 Day for Footswitch)
