Kit Savings

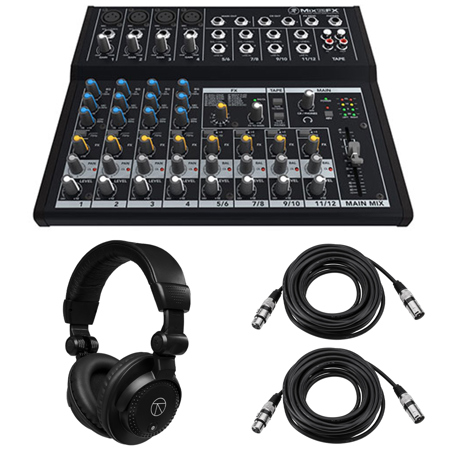

Mackie Mix12FX 12-Channel Compact Mixer with Effects, Bundle with TAPH100 Headphones and 2x XLR Cable

SKU: MAMIX12FXK MFR: MIX12FX K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Mackie Mix12FX 12-Channel Mixer with Effects
    Mackie Mix12FX 12-Channel Mixer with Effects
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Experience pristine sound quality for all your live performances and recording sessions.
  • Easily manage multiple audio sources with 12 input channels for versatile mixing.
  • Integrate seamlessly with your digital audio workstation (DAW) for effortless production.
  • Enjoy enhanced portability with this compact mixer, perfect for on-the-go musicians.
  • Add professional polish to your sound using the built-in effects for creative mixing.
  • Connect microphones and instruments instantly with included XLR cables for quick setup.
See More Product Details
Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Mackie Mix12FX Specifications

  • Noise Characteristics

    -100dBu (All outputs, master levels and channel levels off ) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
    -90dBu (All outputs, master levels unity, all channel levels off) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
    -85dBu (All outputs, master levels unity, 1 channel level unity) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)

  • Distortion (THD+N)

    Mic Input to Main Output: <0.25% at +4dBu output (20Hz-30kHz bandwidth)

  • Attenuation/Crosstalk

    Inputs to Outputs at 1kHz: -85dB (20Hz-20kHz bandwidth)
    Main Mix Off at 1kHz: -75dB (20Hz-20kHz bandwidth)

  • Frequency Response

    Mic input to any output (gain at unity): +0, -1dB, 20Hz to 30kHz

  • Equivalent Input Noise (EIN)

    150Ohms termination (Mic in to Insert Send out, max gain.): -122dBu

  • Common Mode Rejection Ratio (CMRR)

    1kHz (Mic in to Insert Send out, max gain.): better than -70dB

  • Maximum Levels: Mic inputs (XLR)

    +19dBu

  • Maximum Levels: All other inputs

    +21dBu

  • Maximum Levels: All outputs

    +21dBu

  • Impedances: Mic in

    3.8kOhms

  • Impedances: All other inputs

    10kOhms or greater

  • Impedances: Tape out

    1kOhms

  • Impedances: Phones out

    22Ohms

  • Impedances: All other outputs

    120Ohms unbalanced
    240Ohms balanced

  • EQ: High Shelving

    +/-15dB at 12kHz

  • EQ: Mid Peaking

    +/-15dB at 2.5kHz

  • EQ: Low Shelving

    +/-15dB at 80Hz

  • EQ: Low Cut Filter

    18dB/octave, -3dB at 80Hz

  • Power Connection

    2-pin DC connector

  • Input

    120V AC, 60Hz

  • Output

    18V AC, 1000mA

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Dimensions (H x W x D)

    2.1 x 11.7 x 9.6" (53.34 x 297.18 x 243.84mm)

  • Weight

    3.7 lbs (1.68kg)

  • UPC Codes

    192223276178, 192223075498, 663961044911, 192223227576

Related Articles & Videos

Best Instrument Accessories and Gear for Student Musicians

Best Instrument Accessories and Gear for Student Musicians

It's possible to find equipment that is both affordable and exceptional quality! Here is a list of the best instruments for students.
Read more
Grammy Award Winner Train Kicks Off the Adorama Live Theatre Launch Party

Grammy Award Winner Train Kicks Off the Adorama Live Theatre Launch Party

Grammy award winner Train performed to a packed studio audience during The Adorama Live Theatre launch party at CBS RADIO New York.

Read more

About Mackie Mix12FX

After meticulous design and engineering, the Mackie Mix12FX 12-Channel Compact Mixer emerges as a top-tier choice for audio professionals and enthusiasts seeking a durable, high-quality mixer with a suite of effects. This professional-grade mixer boasts a wide frequency response of 20Hz to 30kHz, ensuring that it captures the full spectrum of sound with exceptional clarity. The Mix12FX's versatility is further enhanced by its array of built-in effects, including lush reverbs, rich choruses, and crisp delays, which provide creative options to shape and enhance audio during live performances or in studio settings.

Crafted with a rugged metal chassis and high-quality components, the Mix12FX is a reliable workhorse that audio engineers can depend on session after session. Its high-headroom, low-noise preamps ensure that the audio integrity is preserved, delivering studio-level sound quality across all 12 channels. The mixer's multi-band EQ allows for precise tone shaping, while pan, level, and overload indicators provide visual feedback for optimal control.

The Mix12FX is equipped with versatile connectivity options, including mic/line inputs that accommodate a variety of microphones and instruments. Phantom power is available for studio condenser mics, and a low cut filter at 75Hz helps eliminate unwanted low-frequency noise. The mixer also features multiple stereo 1/4" line inputs that support both +4/-10 dB operation and balanced audio, ensuring compatibility with a wide range of audio sources.

For playback or recording, dedicated stereo RCA inputs/outputs are provided, along with main L/R outputs for connecting to speaker systems. A headphone output with dedicated volume control allows for private monitoring, while stereo control room outputs enable connection to studio monitors.

Compact and portable, the Mix12FX is an excellent choice for live sound mixing in venues such as rehearsal spaces, gymnasiums, banquet halls, and conference rooms. It is also well-suited for boardrooms, studio and field recording, multimedia applications, and more. The Mix12FX stands as an amazing value for those who need a straightforward feature set combined with professional sound quality in a design that's built to withstand the rigors of the road and the demands of the studio.

Mackie Mix12FX Features

  • Professional-grade 12-channel mixer with a wide 20Hz to 30kHz frequency response for full-spectrum sound
  • Built-in effects like reverbs, choruses, & delays enhance live performances & studio recordings
  • High-headroom, low-noise preamps ensure pristine audio quality from any source
  • Durable metal chassis and quality components for reliable, long-lasting use in any setting
  • Versatile connectivity with phantom power, stereo RCA inputs/outputs, and multiple line inputs
  • Compact and portable design ideal for live mixing, studio work, and multimedia applications

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience pristine sound quality for all your live performances and recording sessions.
  • Easily manage multiple audio sources with 12 input channels for versatile mixing.
  • Integrate seamlessly with your digital audio workstation (DAW) for effortless production.
  • Enjoy enhanced portability with this compact mixer, perfect for on-the-go musicians.
  • Add professional polish to your sound using the built-in effects for creative mixing.
  • Connect microphones and instruments instantly with included XLR cables for quick setup.

What's in the box:

  • Mackie Mix12FX 12-Channel Compact Mixer with Effects
  • Power Cord
  • Mackie 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Studio Monitor Headphones
  • 2x H&A Value Series XLR Microphone Cable (25')
