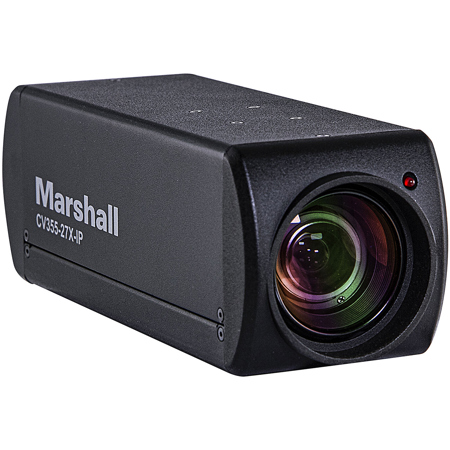

Marshall Electronics CV355-27X-IP 8.5MP Full HD 3G-SDI/HDMI/IP 27x Box Camera, Black

SKU: MARCV35527XI

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV355-27X-IP Specifications

Sensor
  • Sensor

    8.5MP, 1/2.5" IMX317 CMOS

Lens Module

Jump to...
  • Optical Zoom

    27x

  • Digital Zoom

    12x

  • Angle of view (H)

    60 Degree

  • Vertical Viewing Angle

    35 Degree

  • Diagonal Viewing Angle

    68 Degree

  • Aperture

    f/1.66 to f/4.98

  • Focal Length

    f=5.56 to 150.29mm

  • Focus Distance

    Wide: 1m - Infinite / Tele: 1.5m - Infinite

  • Field of View

    Wide Horizontal viewing angle = 60 Degree(+/-5%)
    Tele Horizontal viewing angle = 3.2 Degree(+/-5%)

  • Minimum Environmental illumination

    10 lux

  • Minimum illumination

    0.1 lux (F1.6, 50IRE, 30fps)

Camera System

Jump to...
  • Stream

    Dual Stream (Main/Sub) / Webpage

  • Streaming Protocol

    RTSP / RTMP / RTMPS / SRT

  • Video Compression

    HEVC (H.265) / AVC (H.264) / MJPEG

  • Audio Compression

    G.711 / AAC

  • Preset

    256

  • Focus System

    Auto/ One-Push AF / Manual

  • Electronic shutter

    1/1 to 1/10000 sec

  • Exposure Control

    Auto / Shutter Pri / Iris Pri / Manual

  • Gain Control

    Auto, Manual

  • Brightness control

    Yes

  • 3D NR

    Yes

  • WDR

    Yes

  • Backlight Compensation

    Yes

  • White Balance

    Auto, Manual R/B Gain

  • Flip / Mirror

    Yes

  • Firmware Update

    Operation on Webpage

Output Resolution

Jump to...
  • HDMI

    1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
    1080i: 60 / 59.94 / 50 fps
    720p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps

  • 3G-SDI

    1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
    1080i: 60 / 59.94 / 50 fps
    720p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps

  • Stream

    PTZ view:
    1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
    1080i: 60 / 59.94 / 50 fps
    720p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
    360p: 30 / 29.97 / 25 fps

    Webpage:
    PTZ: MJPEG 360p

Interface

Jump to...
  • Line In

    1x; 3.5mm phone jack

  • Line Out

    1x; 3.5mm phone jack

  • Audio Output

    HDMI / 3G-SDI / RTSP / RTMP / SRT

  • Audio Type

    Stereo, Unbalanced

  • Audio Compression Format

    AAC

  • HDMI

    1x

  • Audio Output

    Yes

  • HDMI Color Format

    RGB / YUV422

  • 3G-SDI

    1x

  • Audio Output

    Yes

  • Serial

    RS232

  • RS232 In

    RS232 In; 1x Mini-Din

  • RS232 Out

    RS232 Out; 1x Mini-Din

Network

Jump to...
  • Ethernet RJ45 Port

    1x; 1Gbps

  • Number of clients (connection)

    5x RTSP 1080P60

  • Network Protocol

    DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP

  • Network Security

    No Critical issues

Camera control

Jump to...
  • Serial Control

    1x RS-232 In; 1x RS-232 Out

  • Protocol

    VISCA

  • Baud Rate

    9600 / 38400

  • Network

    Webpage
    HTTP CGI
    HTTP API
    Onvif Profile S
    VISCA over IP

General

Jump to...
  • Color

    Black

  • Tally Light

    Yes; Red

  • Power Supply

    POE; IEEE 802.3af
    DC 12V/3A; EIAJ Type 4

  • Power consumption

    PoE: <= 15W; DC: <=13W

Physical

Jump to...
  • Dimensions

    5.9 x 3.1 x 2.6" (15 x 7.9 x 6.6cm)

  • Weight

    1.1 lbs (500g)

  • UPC Code

    801813234190

About Marshall Electronics CV355-27X-IP

The CV355-27X-IP 27X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080 at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

27x Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60 Degree all the way out to 3.2 Degree horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

IP (HEVC/SRT) Workflow
SRT stands for Secure Reliable Transport. SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. With secure streams and simplified firewall traversal, SRT delivers the best quality video over the worst networks.

Low-light Sensitivity
The CV355-27X-IP operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

IP (HEVC) Convenience
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (HEVC) and HDMI simultaneous outputs with stereo audio embedding.

Applications
The CV355-27X-IP is suitable for use in networked HD and workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

Marshall Electronics CV355-27X-IP Features

  • 8.5 Megapixel (1/2.5") HD sensor
  • 27X Optical Zoom (5.5-150mm) - 60 Degree AOV
  • Supports: 1092x1080p and 720p 60/59.94/50/30/29.97/25 fps, 1920x1080i 60/59.94/50 fps
  • IP formats: SRT, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
  • IP (HEVC/SRT) and HDMI simultaneous outputs
  • Ethernet I/O supports video, control, audio and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning detail with the Marshall 8.5MP Camera, perfect for pro-quality video.
  • Experience versatile connectivity with 3G-SDI, HDMI, & IP outputs on this Marshall camera.
  • Remotely control your Marshall Camera via webpage, HTTP API, or VISCA over IP for easy use.
  • Stream live events using RTSP, RTMP, or SRT with the Marshall CV355's dual streaming feature.
  • Achieve optimal focus with auto, one-push AF, & manual focus options on this Marshall camera.
  • Enjoy crisp, clear audio with AAC compression & multiple audio I/O options on the Marshall IP Camera.

What's in the box:

  • Marshall Electronics CV355-27X-IP 8.5MP Full HD 3G-SDI/HDMI/IP 27x Box Camera (Black)
  • Power Adapter
  • Power Cord
  • Marshall Electronics 2 Year Limited Warranty
