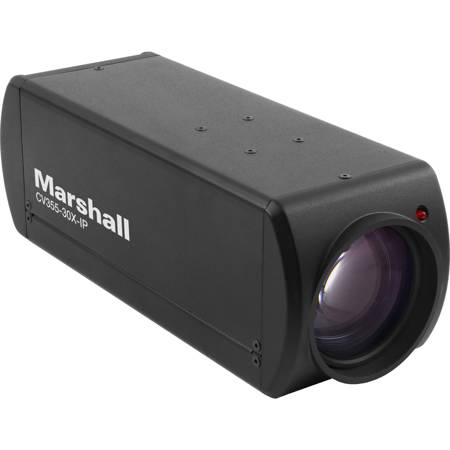

Marshall Electronics CV355-30X-IP 8.5MP Full HD 30x Optical Zoom IP Camera

SKU: MARCV3553XIP

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics CV355-30X-IP Specifications

  • Sensor

    1/2.5", 8.5 MP

  • Zoom

    30x Optical Zoom

  • Focal Length

    4.6 to 135mm

  • Capture Resolution

    1080p at 59.94/50/29.97/25
    720p

  • Connections

    1x 3G/HD-SDI and 1x HDMI 2.0 Output (Simultaneous)
    1x RJ45 for Video, Control, and PoE
    1x RS-232 8-Pin Mini Din Input
    1x RS-232 8-Pin Mini Din Output
    1x 3.5 mm Audio Input
    1x 3.5 mm Audio Output
    1x 12 VDC Power Input

  • Angle of View

    68 Degree at 4.6mm Focal Length
    3 Degree at 135mm Focal Length

  • Codecs

    H.265/H.264/MJPEG (Triple Stream)

  • Mount Type

    1/4"-20 Female

  • Dimensions

    7.4 x 2.6 x 2.6" (18.7 x 6.7 x 6.7cm)

  • Weight

    2.2 lbs (1kg)

  • UPC Code

    801813192414

About Marshall Electronics CV355-30X-IP

You can rely on the advanced CV355-30X-IP 8.5MP Full HD 30x Optical Zoom IP Camera to deliver high-quality, professional-grade surveillance. This innovative camera is equipped with a sophisticated 8.5MP sensor, capable of capturing crystal-clear HD video up to 1920x1080p at a smooth 60fps, supporting all HD formats for maximum compatibility.

The camera's standout feature, a 30x optical zoom block, provides a versatile zoom range of 4.6 to 135mm. This range starts at a 68-degree horizontal angle-of-view, narrowing down to 3 degrees, ensuring image sharpness whether you're capturing wide landscapes or focusing on specific details.

The CV355-30X-IP 8.5MP Full HD 30x Optical Zoom IP Camera is designed to perform exceptionally in low-light conditions, providing a clear and detailed picture even in challenging lighting environments. Whether you're monitoring live events, houses of worship, indoor or outdoor sporting events, or other dynamic lighting situations, this camera ensures consistent, high-quality footage.

For networked and A/V installations, the CV355-30X-IP camera offers the convenience of triple-stream (H.264/H.265/MJPEG), 3G/HD-SDI, and HDMI simultaneous outputs with audio embedding. This feature allows for seamless integration into existing systems and easy management of your surveillance footage.

With its straightforward design and ease of use, the CV355-30X-IP 8.5MP Full HD 30x Optical Zoom IP Camera is a valuable tool in a wide variety of broadcast and professional A/V applications. Trust in this camera to provide advanced, high-quality surveillance for your security needs.

Marshall Electronics CV355-30X-IP Features

  • 8.5 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6-135mm) - 68 Degree AOV
  • Up to 1920x1080 and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG), 3G/HD-SDI, and HDMI 2.0 simultaneous outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture stunning 1080p video with the CV355-30X-IP's high-definition resolution.
  • Experience incredible detail with the camera's powerful 30x optical zoom lens.
  • Enjoy versatile connectivity with 3G/HD-SDI, HDMI 2.0, and RJ45 network ports.
  • Remotely control your camera via RS-232 or IP, ideal for studio environments.
  • Stream live events with H.265/H.264/MJPEG codecs, ensuring top-tier video quality.
  • Achieve clear audio with dedicated 3.5mm input/output for professional sound.

What's in the box:

  • CV355-30X-IP 8.5MP Full HD 30X Optical Zoom IP Camera
  • Power Adapter
  • Power Cord
  • Marshall Electronics 2 Year Limited Warranty
