Marshall Electronics CV420-30X-IP Specifications

Imaging

Imaging

Jump to...

  • Image Sensor

    1/2.5" 8.5MP CMOS

  • Supported Video Resolutions

    UHD 4K: 59.94/50/29.97/25
    1080p: 59.94/50/29.97/25
    720p: 59.94/50/29.97/25

  • Zoom Ratio

    Optical: 30x

  • Focal Length

    4.6 to 135mm

  • Horizontal Angle of View

    68 - 3.5 Degree

  • Aperture Range

    f/1.5 to f/3.4

  • Shutter Speed

    1 to 1/10,000 Second

  • Minimum Object Distance

    Wide/Telephoto: 4.9' (1.5m)

  • Video S/N Ratio

    > 50 dB

  • Minimum Illumination

    Color: 0.1 Lux, f/1.6, 50 IRE, AGC On
    Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On

  • Filter Design

    Day, Night Modes: Mechanical IR Cut Filter

  • Presets

    128

  • View Patrol

    Groups: 4

  • Iris Control

    Auto, Manual (Remote Control)

  • Autofocus

    Auto, One-Push fast AF, Interval AF
    Zoom Trigger AF, Zoom Tracking, ICR Compensation AF

  • Exposure Control

    Auto Mode: WDR (Wide Dynamic Range)

    Mode Shutter Speeds:
    Manual: 1 to 1/10,000 Sec
    Shutter Priority: 1 to 1/10,000 Sec
    Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec

  • Gain Control

    Auto, Manual

  • White Balance

    Auto: 2500K to 7500K
    ATW: 2000K to 10,000K
    Manual: R/B Gain, One-Push WB
    Indoor: 3200K
    Outdoor: 5800K

  • Backlight Compensation

    On, Off

  • Defog

    Yes

  • Exposure Compensation

    Auto/Flickerless/Shutter-Priority Mode: -7 to +7

  • Gamma Correction

    Yes

  • Sharpness

    Configurable

  • Noise Reduction

    2D/3D Noise Reduction

  • Dynamic Range

    Wide Dynamic Range, 120 dB

  • Privacy Mask Type

    Spherical Zone Mask

  • Orientation

    Off, Flip, Mirror, Both

  • Electronic Image Stabilization

    Yes

  • Encoder Video Profile

    Multiple Profiles

  • Video Standard

    H.265, H.264, MJPEG, Haivision SRT

Video Streaming

Jump to...

  • Output Modes

    HDMI or Single Stream Output:
    UHD 4K: 59.94/50

    Simultaneous HDMI & Streaming Outputs:
    UHD 4K: 29.97/25
    1080p: 59.94/50/29.97/25
    720p: 59.94/50/29.97/25

  • Multiple Streaming

    Triple Streaming Structure:
    H.265 8M 60 fps, H.264 2M 60 fps, H.264 D1 30 fps
    HDMI

  • Data Rate

    CBR: 64 to 20000, Default: 8000
    CVBR: 64 to 20000, Default Max: 8000
    VBR: 1 to 10
    MJPEG: High, Mid, Low

  • System Compatibility

    ONVIF Profile S

  • Protocols

    ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP
    IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, QoS
    SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP
    802.1X, SRT, MPEG-TS

  • Internet Security

    IEEE 802.1X
    HTTPS

Audio

Jump to...

  • Audio Compression Format

    G.711

  • Audio In

    Line In, 3.5mm (Stereo/Mono)

  • Audio Out

    Line Out, 3.5mm (Stereo/Mono)

Interface

Jump to...

  • HDMI Out

    1x HDMI Type A, HDMI 2.0

  • Ethernet

    1x RJ45

  • Control Interface

    RS-232, IP

  • RS-232

    In: 1 x 8-Pin Mini DIN
    Out: 1 x 8-Pin Mini DIN

Power

Jump to...

  • DC In

    12 V +/- 20%

  • PoE

    802.3 af

  • Power Consumption

    < 12 W

Physical & Environmental

Jump to...

  • Tripod Mount Thread

    1/4"-20

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Dimensions (W x D x H)

    7.4 x 2.6 x 2.6" (188.4 x 67 x 67mm)

  • Weight

    2.2 lbs (1kg)

Other

Jump to...

  • UPC Code

    801813192438

About Marshall Electronics CV420-30X-IP

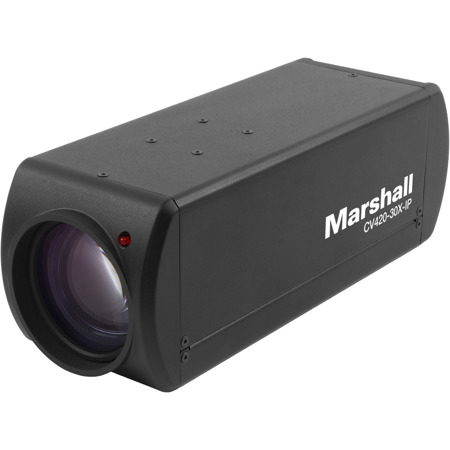

Be captivated by the superior imaging capabilities of the CV420-30X-IP 30X Zoom IP Camera. This high-performance device is equipped with an advanced 8.5MP sensor, enabling it to deliver stunning 4K Ultra High Definition (UHD) visuals. With a resolution of up to 3840x2160p at 60 frames per second, it supports all HD formats, ensuring you experience true-to-life colors and exceptional detail in every frame.

The camera's 30X optical zoom block, with a flexible range of 4.6 to 135mm, starts at a 68-degree horizontal angle-of-view and narrows down to 3 degrees. This feature allows the CV420-30X-IP to maintain image sharpness and clarity, whether you're capturing wide-angle scenes or zooming in for close-up shots.

Designed to perform in various lighting conditions, this camera boasts remarkable low-light sensitivity. Whether you're filming live events, religious services, indoor or outdoor sports, or any setting with dynamic lighting, the CV420-30X-IP ensures a clear, crisp picture.

Perfectly suited for networked audio/visual installations, the CV420-30X-IP offers the convenience of triple-stream outputs (H.264/H.265/MJPEG) and HDMI, complete with audio embedding. This feature makes it an ideal choice for broadcasting and professional A/V applications.

With its straightforward design and user-friendly operation, the CV420-30X-IP 30X Zoom IP Camera is more than just a camera; it's a valuable tool that enhances your visual storytelling capabilities. Experience the difference in quality and performance with this top-tier 4K UHD IP camera.

Marshall Electronics CV420-30X-IP Features

  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6-135mm) - 68 Degree AOV
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • Frame-rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture stunning UHD 4K video with the CV420-30X-IP camera, perfect for broadcast quality.
  • Experience incredible detail with the 8.5MP CMOS sensor and impressive 30x optical zoom.
  • Stream live events seamlessly using multiple streaming protocols like SRT and H.265.
  • Enhance your audio with line in/out ports, ensuring clear sound for every video project.
  • Control remotely via IP or RS-232, integrating effortlessly into existing systems.
  • Enjoy superior low light performance, capturing clear footage even in dim environments.

What's in the box:

  • CV420-30X-IP 8.5MP 4K UHD 30X Optical Zoom IP Camera
  • Power Adapter
  • Power Cord
  • Marshall Electronics 2 Year Limited Warranty
