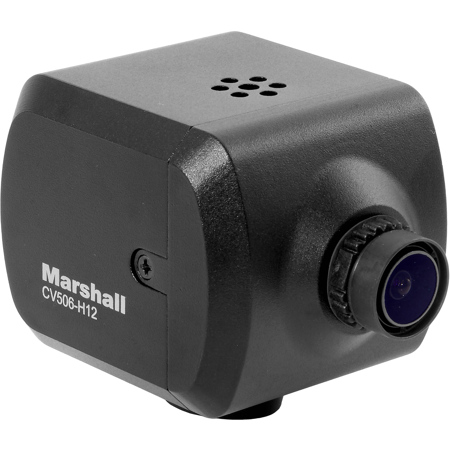

Marshall Electronics CV506-H12 2MP Miniature High-Speed Camera with 3.6mm M12 Mount Lens, 1080p at 120 fps

The Marshall CV506-H12 is built for capturing high-speed action for detailed, high-definition slow-motion video but also able to deliver 60fps for clear crisp fast paced action. The CV506-H12 uses a 2-Megapixel, 1/2.8-inch sensor with HDMI output to capture crisp video images in progressive HD and interlace HD resolutions and has frame rates that go all the way up to 120 fps in 1080p/720p for detailed HD slow-motion playback.

The CV506-H12 can be controlled through RS485 (VISCA) and has a range of adjustable image settings including paint (red/blue), white balance, exposure, gain, pedestal (black), gamma, shutter and more. The M12 lens mount can be used with fixed prime or varifocal lens options and the lightweight, small footprint build enables it to be placed easily into tight, hard-to-reach locations for unique angles and viewpoints.

The CV506-H12 is among the first additions to Marshall's latest generation of compact and miniature cameras utilizing a fully redesigned body style and form factor. Special attention has been given to enhance durability in the field with the addition of new structural 'wings,' designed to give greater protection to rear connectors during use.

Applications
The CV506-H12 is designed for use in broadcast, live sports, racing, machine vision, process analysis and any other fast paced or slow-motion applications.
