Marshall Electronics CV508 2.2MP Full HD HDMI/3G-SDI Micro POV Camera with Interchangeable 4mm Lens, Black

SKU: MARCV508

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV508 Specifications

General

General

Jump to...
  • Color

    Camera Body: Black

  • Operation Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Power Input

    12V DC (7V to 15VDC)

  • Power consumption

    Max: 6W
    Typical: 2.76W

  • Image Sensor

    Sony 2.2MP 1/2.8" IMX CMOS Solid-state Image Sensor with Square Pixel Array

  • Color

    10bit, 4.2.2, ITU BT.709

  • Pixel Size

    2.9 x 2.9microm

  • Effective Pixel

    1920 (H) x 1080 (V) - 16:9 HD ratio

  • Min. Illumination

    0.01 Lux (Day), 0.005 Lux (Night)

  • Lens

    Interchangeable M12, 4mm (85 DegreeH.AOV)

Functions

Jump to...
  • Back Light Compensation

    WDR, BLC, HLM

  • Exposure

    Auto / Manual / AGC Fix / Shutter Fix

  • White Balance

    ATW (1,900 DegreeK-11,000 DegreeK) / Manual / Indoor / Outdoor / One Push

  • Day & Night System

    Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism

  • Electronic Shutter

    1/30-1/10000

  • Functions

    Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom DIS (Digital Image stabilizer), NegArt, Freeze

Video Outputs

Jump to...
  • HD-SDI

    SMPTE 292M (1.485Gbps):
    1920x1080p @ 23.976, 24, 25, 29.97, 30
    1920x1080i @ 50, 59.94, 60
    1280x720p @ 50, 59.94, 60

  • 3G-SDI

    SMPTE 424M (2.97Gbps):
    1920x1080p @ 50, 59.94, 60fps
    800mVp-p, 75 Ohm, unbalanced generator (single-ended)

  • HDMI (+Audio)

    HDMI 1.3 compliant
    simultaneous to 3GSDI outputs

Audio Input

Jump to...
  • MIC Input

    TRS Stereo, Mic/Line Level input with 1.7V Mic bias
    48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400-115200bps

Control Interface

Jump to...
  • Visca over RS485

    SONY-VISCA protocol, Camera ID#, Baudrate 2400-115200

Physical

Jump to...
  • Dimensions

    1.57 x 1.73 x 2.17" (40 x 44 x 55mm) (Approx.)

  • Weight

    4.8 oz (136g)

  • UPC Code

    801813230956

About Marshall Electronics CV508

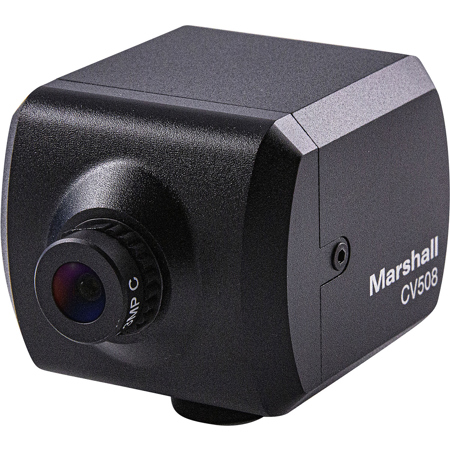

The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.

New Sony 1/2.8" (6.46mm) Solid-State Image Sensors
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

Interchangeable M12 Lenses
Marshall CV508 cameras come with a high-quality 4.0mm (85 Degree H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

Durable, Flexible, Powerful
The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

Applications
The Micro CV508 is suitable for use in HDMI & 3GSDI workflows simultaneously where image quality, versatility and durability are of utmost concern, including live broadcast, production, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship, confidence monitoring, aerospace, and many, many more.

Marshall Electronics CV508 Features

  • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
  • Interchangeable M12 lens mount; comes with a 4.0mm - 85 Degree Horizontal AOV
  • HDMI & 3G-SDI (10bit, 4:2:2, BT.709) with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
  • Power: 12V+/-10% drawing 2.76W (max 6W)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning Full HD video with the Marshall CV508 POV camera, perfect for broadcast applications.
  • Enjoy versatile mounting options with this micro HDMI camera, ideal for unique angles and perspectives.
  • The interchangeable 4mm lens on this Marshall camera provides flexibility for various shooting scenarios.
  • Achieve exceptional low-light performance with 0.01 Lux sensitivity for clear night vision shots.
  • Utilize 3G-SDI and HDMI outputs for seamless integration into professional video production workflows.
  • Compact and lightweight, this 2.2MP POV camera delivers high-quality images in a small form factor.

What's in the box:

  • Marshall Electronics CV508 2.2MP Full HD HDMI/3G-SDI Micro POV Camera (Black)
  • 4mm f/1.8 8MP M12 Lens
  • Locking Hirose Cable
  • Marshall Electronics 2 Year Limited Warranty
