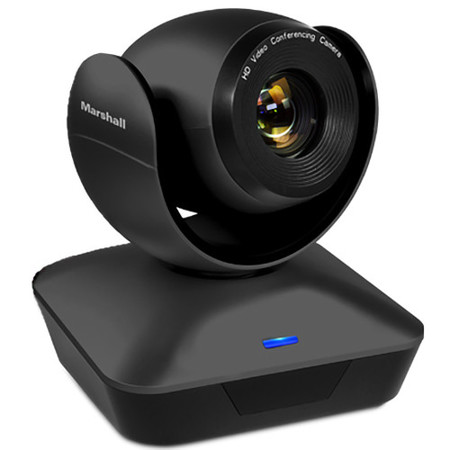

Marshall Electronics CV610-U2 5MP Full HD USB 2.0 PTZ Camera, 10x Optical Zoom, Black

SKU: MARCV610UB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ABIMAEL S : Para transmitir en una iglesia

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics CV610-U2 Specifications

  • Video Format

    MJPG - 1080p30, 720p30, 640x480p30

  • Video Port

    USB 2.0

  • Sensor

    1/2.8" high quality 5MP CMOS sensor

  • Lens

    F4.7 - 47.mm (10x), F1.8 - 14, Field of view: 62.5 deg. (wide) - 6.43 deg. (tele)

  • Pan/Tilt Rotation

    Pan: +/-170 deg.
    Tilt: -30 deg. to +90 deg. , support up-side down installation

  • Pan/Tilt Speed

    Pan: 0.1 deg. - 120 deg. /s
    Tilt: 0.1det. - 80 deg. /s

  • Preset

    10 via IR remote setting, 128 via VISCA control, preset accuracy: 0.1 deg.

  • Control Port

    RS232, RS485, USB 2.0

  • Pan/Tilt Adjustment

    Pan: 340 deg.
    Tilt: 120 deg.

  • Min. Lux

    0.01lux

  • White Balance

    Auto/Manual

  • Focus

    Auto/Manual

  • Iris

    Auto/Manual

  • Shutter

    Auto/Manual

  • WDR

    Supported

  • BLC

    Supported

  • 2D Noise Reduction

    Supported

  • 3D Noise Reduction

    Supported

  • Input Voltage

    DC 12V

  • Ceiling Mountable

    Yes

  • Control Interface

    VISCA & UVC

  • Design

    Solid Build

  • OSD Menu

    Yes

  • IR Transfer (IR Pass)

    Yes

  • PTZ Motor Design

    Accurate step motors

  • PTZ Motor Noise

    Quiet Pan-Tilt operation

  • Remote Camera Control

    Yes

  • Applications

    Teleconference
    Professional A/V
    Computer Capture
    Machine Vision

  • Dimensions

    148 x 132 x 161mm (5.83 x 5.20 x 6.34")

  • Weight

    0.9kg (1.98 lbs)

  • UPC Code

    801813191158

About Marshall Electronics CV610-U2

Marshall Electronics Teleconference PTZ Camera is designed to deliver broadcast quality video to Teleconference, Pro A/V and computer interface applications where USB 2.0 connectivity is required. Easy setup and easy integration into video-conference software (UVC1.5 protocol standard). The Marshall CV610-U2 Full-HD USB 2.0 PTZ Camera is designed to easily integrate into common software platforms for Teleconference, Unified Communications (UC) and Huddle Spaces. At a small footprint (148 x 132 x 161mm), the CV610-U2 is a high performing USB 2.0 camera at an affordable price point.

Marshall Electronics CV610-U2 Features

  • 5 Megapixel Sony 1/2.8-inch CMOS HD Sensor
  • USB 2.0 with UVC1.5 (USB video class) protocol control
  • Full-HD Resolution: 1920x1080p, 1280x720p & 640x480p
  • Frames per second: 30fps, 15fps, 8fps
  • 12x Digital Zoom / 10x Optical Zoom 4.7 -47mm (F1.8 - F14)
  • Angle of View (AOV): 62.5 degree (wide) to 6.5 degree (tele)
  • Pan-Tilt range: 340 deg. Pan, 120 deg. Tilt
  • Mount on ceiling or upside down with flippable video image
  • PTZ control via RS232 and USB2.0 (UVC1.5)
  • Easily integrates into common teleconference, UC and huddle space software
  • Up to 128 preset location saves, adjustable Pan-Tilt speeds between presets
  • USB 2.0 and 12V Power Cord included with camera
  • Fast switching between different video formats: Less than 1 second
  • Fast and accurate focus performance
  • Easy firmware upgrade - (field-upgradable)
  • Camera comes with accurate IR Remote Control unit
  • IR transfer/IR pass function: Excepts signals from other codec's and IR remote control signals

Product Documents

User Manual

What's in the box:

  • Marshall Electronics CV610-U2 5MP Full HD USB 2.0 PTZ Camera
  • Power Adapter
  • CV610-U2-WM Wall Mount
  • Power Cable
  • RS232 Control Cable
  • USB 2.0 Cable
  • Remote Controller (Battery Not Included)
  • Double-Sided Adhesive
  • User Manual
  • Marshall Electronics 2 Year Limited Warranty (1 Year + 1 Year with Registration)
